Semi Automatic Tripod Turnstile Gate RFID Access Control System 3 Arm Turnstile
  • Semi Automatic Tripod Turnstile Gate RFID Access Control System 3 Arm Turnstile
  • Semi Automatic Tripod Turnstile Gate RFID Access Control System 3 Arm Turnstile
  • Semi Automatic Tripod Turnstile Gate RFID Access Control System 3 Arm Turnstile
Semi Automatic Tripod Turnstile Gate RFID Access Control System 3 Arm Turnstile

Semi Automatic Tripod Turnstile Gate RFID Access Control System 3 Arm Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Channel Width:
550~600mm
Control Voltage:
24V
MCBF:
3,000,000 Cycle
Direction:
Bi-directional
Service Life:
≥ 10 Million Cycle
Packing:
Plywood Box
Highlight:

Semi Automatic Tripod Turnstile Gate

,

RFID Tripod Turnstile Gate

,

Access Control 3 Arm Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,000pcs per month
Product Description

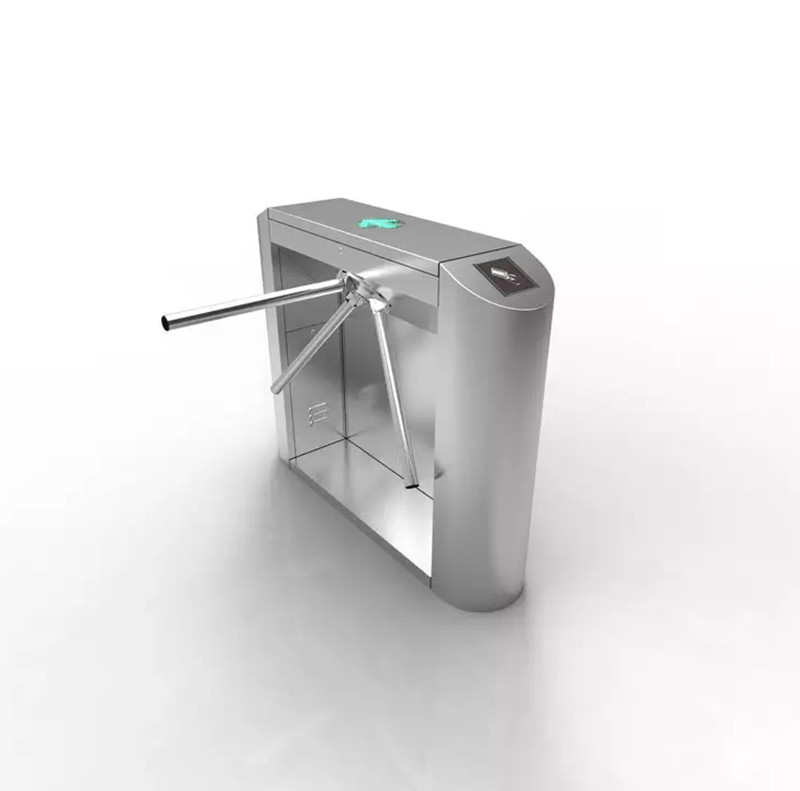

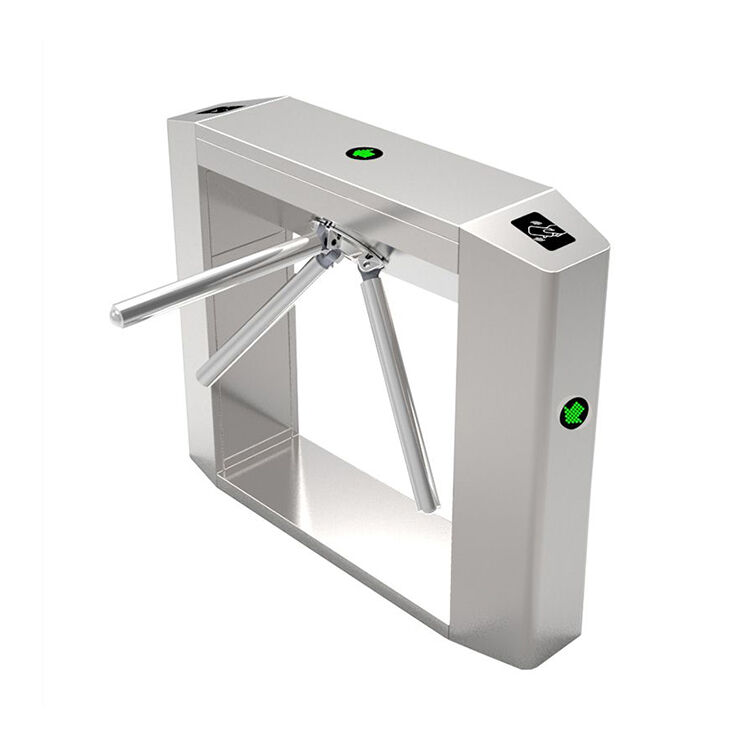

Semi-Automatic Tripod Turnstile RFID Access Control System
Shenzhen Sinomaitc semi-automatic Tripod turnstile gates provide reliable and efficient access control, ensuring only authorized personnel can enter designated building areas.
Semi Automatic Tripod Turnstile Gate RFID Access Control System 3 Arm Turnstile 0
Tripod Turnstile Advantages
  • SUS304 stainless steel housing
  • Bi-directional tripod turnstile with arm drop function
  • LED pictograms for intuitive user experience and high throughput
  • High quality at an affordable price
  • Low power consumption
  • Wide range of accessories
  • Easy and simple installation process
  • Easy to maintain and monitor
  • Reversed RFID card reader window
Technical Specifications
Case Material SS304
Barrier Arm Material SS304
Production Process CNC Laser Cutting
Size 1200*280*980mm
Power Input AC100-240V, 50/60HZ
Operation Voltage DC24V, 3A, Power: 40W
Electromagnetic Duty Cycle 100%
Barrier Arm Length 510mm
Arm Max Applied Force 80Kg
Arm Operation Driving Force 3Kg
Passage Direction Single directional/Bi-directional (Optional)
Throughput Rate 30-35 persons/minute
Operating Time 0.2 seconds
Automatic Reset Function Automatically locked within set time (Adjustable)
Operation Humidity 0~95% (No Freezing)
Operation Temperature -15℃~+60℃
Operation Environment Indoor, Outdoor (Shelter)
Protection Level IP54
Communication Interface TCP/IP (optional)
MCBF 5,000,000 Cycles
Performance Features
  • Auto replacement function with reposition after passage
  • Anti-tail function with auto-lock at 120° rotation
  • Arms automatically drop during power failure for emergency access
  • Standard electronic interface with remote internet control capability
  • Compatible with various card readers and relay signal operation
  • Diverse control modes adaptable to changing requirements
  • Automatic error alert function for easy maintenance
  • Manual button or remote control with bi-directional passage
  • Open signal with memory or without set function
  • Red and green LED indicators for clear pass/stop status
Manufacturer Advantages
  • OEM/ODM experience in access control systems
  • Prompt delivery with standard model inventory
  • OEM/ODM orders accepted to meet client specifications
  • Trial orders available for product testing before bulk purchase
  • Online technical support for business partners
  • Multiple transportation options: sea, air, or express delivery
  • Factory visits welcome during working days
