High Security 3 Arm Tripod Turnstile Barrier RFID Fully Automatic Access Control
  • High Security 3 Arm Tripod Turnstile Barrier RFID Fully Automatic Access Control
  • High Security 3 Arm Tripod Turnstile Barrier RFID Fully Automatic Access Control
  • High Security 3 Arm Tripod Turnstile Barrier RFID Fully Automatic Access Control
High Security 3 Arm Tripod Turnstile Barrier RFID Fully Automatic Access Control

High Security 3 Arm Tripod Turnstile Barrier RFID Fully Automatic Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Channel Width:
550~600mm
Control Voltage:
24V
MCBF:
3,000,000 Cycle
Direction:
Bi-directional
Service Life:
≥ 10 Million Cycle
Packing:
Plywood Box
Highlight:

Tripod Turnstile Barrier IP45

,

24V Tripod Turnstile Barrier

,

High Security 3 arm turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
3,000pcs per month
Product Description

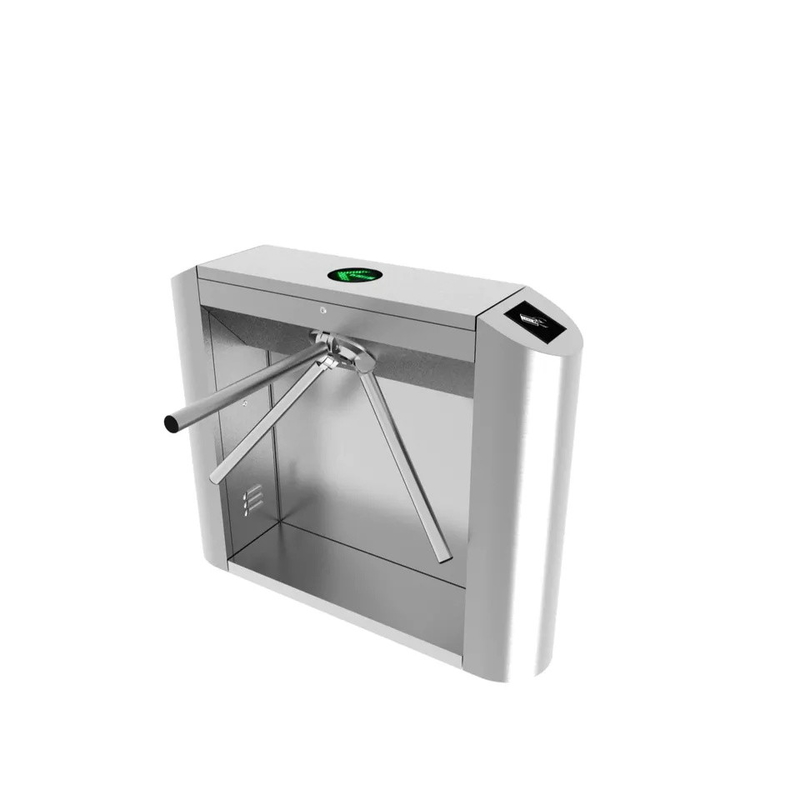

High Security 3 Arm Tripod Turnstile Barrier RFID Fully Automatic Access Control
Semi-Automatic Tripod Turnstile RFID Access Control System
Our 3 Arm Drop Arm Turnstile provides reliable and efficient access control, ensuring only authorized personnel can enter designated areas. The SINOMATIC drop arm tripod turnstile combines attractive design with robust construction, making it ideal for high-traffic and demanding environments. The compact unit enables easy multiple lane configurations, while various color options allow seamless integration with your lobby design and branding.
High Security 3 Arm Tripod Turnstile Barrier RFID Fully Automatic Access Control 0
Product Advantages
  • SUS304 stainless steel housing for superior durability
  • Bi-directional tripod turnstile with arm drop function
  • LED pictograms for intuitive user experience and high throughput in both directions
  • High quality construction at an affordable price
  • Low power consumption for energy efficiency
  • Wide range of accessories available
  • Easy and simple installation process
  • Easy to maintain and monitor
  • Reversed RFID card reader window for enhanced security
Technical Specifications
Case Material SS304
Barrier Arm Material SS304
Production Process CNC Laser Cutting
Size 1200*280*980mm
Power Input AC100-240V, 50/60HZ
Operation Voltage DC24V, 3A, Power: 40W
Electromagnetic Duty Cycle 100%
Barrier Arm Length 510mm
Arm Max Applied Force 80Kg
Arm Operation Driving Force 3Kg
Passage Direction Single directional/Bi-directional (Optional)
Throughput Rate 30-35 persons/minute
Operating Time 0.2 seconds
Automatic Reset Function Automatically locked within set time (Adjustable)
Operation Humidity 0~95% (No Freezing)
Operation Temperature -15℃~+60℃
Operation Environment Indoor, Outdoor (Shelter)
Protection Level IP45
Communication Interface TCP/IP (optional)
MCBF 5,000,000 Cycles
Performance Features
  • Auto replacement function with automatic repositioning after passage
  • Anti-tail function with auto-lock mechanism when turned 120°
  • Arms automatically drop when power is off, ensuring emergency access
  • Standard electronic interface for remote internet control and compatibility with various card readers
  • Diverse control modes adaptable to varying requirements
  • Automatic error alert function for easy maintenance
  • Manual button or remote control options with bi-directional passage
  • Open signal with memory or without set function
  • Red and green LED indicators for clear pass/stop status
SINOMATIC Manufacturing Advantages
  • Over 20 years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model inventory
  • OEM/ODM orders accepted to meet specific client requirements
  • Trial orders available for product testing before bulk purchasing
  • Online technical support for seamless partnership
  • Multiple transportation options including sea, air, and express shipping
  • Factory visits welcome during working days
