Safe Guarding Access Inductive Loop Detectors Microprocessor 10ms Fast Reaction Time
  • Safe Guarding Access Inductive Loop Detectors Microprocessor 10ms Fast Reaction Time
  • Safe Guarding Access Inductive Loop Detectors Microprocessor 10ms Fast Reaction Time
  • Safe Guarding Access Inductive Loop Detectors Microprocessor 10ms Fast Reaction Time
Safe Guarding Access Inductive Loop Detectors Microprocessor 10ms Fast Reaction Time

Safe Guarding Access Inductive Loop Detectors Microprocessor 10ms Fast Reaction Time

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number PD-232
Product Details
Supply Voltage:
220V/110V/24V/12V
Loop Quantity:
2
Operating Temperature:
-20°C To +70°C
Storage Temperature:
-40°C To +80°C
Dimension:
78x40x108 Mm (L X W X H)
Frequency Range:
20KHz ~ 170KHz
Highlight:

Safe Guarding Access Vehicle Loop Detector

,

Microprocessor inductive loop detectors

,

10ms inductive loop detectors

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$20~24
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
2-5 working days after payment received
Payment Terms
T/T, L/C, D/A, D/P, Western Union,
Supply Ability
1,0000 pcs per month
Product Description

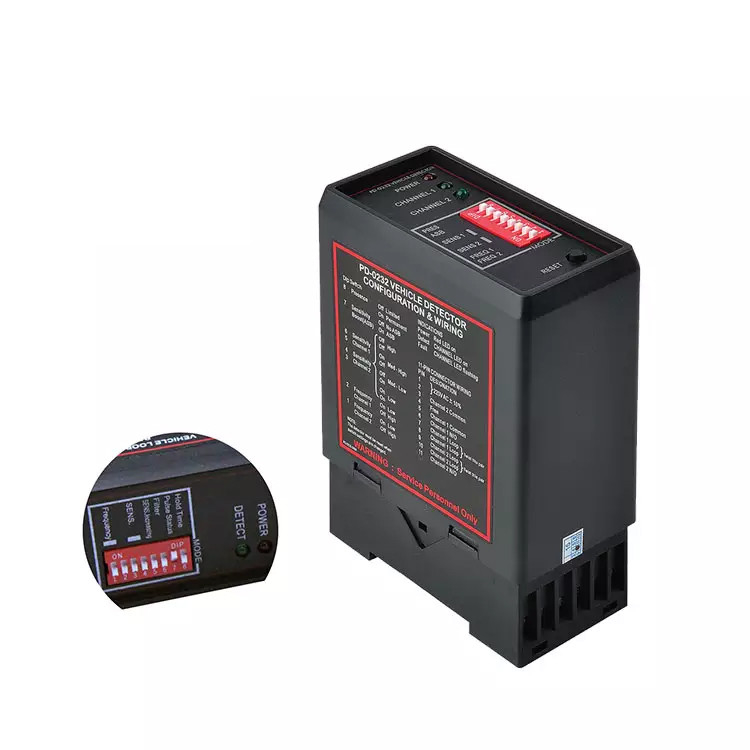

PD-232 Advanced Microprocessor Vehicle Loop Detector
The PD-232 is a double-channel inductive loop detector featuring advanced microprocessor technology with 10ms fast reaction time. Utilizing automatic calibration upon power application, this vehicle detection system operates by detecting changes in loop inductance caused by metallic vehicle components.
Safe Guarding Access Inductive Loop Detectors Microprocessor 10ms Fast Reaction Time 0
Application Scope
  • Parking lot entrance vehicle detection systems
  • Parking space information acquisition systems
  • Electronic police traffic light snapshot systems
  • Traffic monitoring and control systems
Main Features
  • Double coil configuration for vehicle direction detection
  • Exceptional high temperature stability
  • Automatic fault detection and calibration
  • Barrier gate integration for anti-collision protection
  • Automatic switch-off functionality with barrier gates
Technical Specifications
Model Number PD-232
Operating Voltage Multiple voltage options available
Reaction Time 10ms
Channels Double loop detector
Storage Temperature -40°C to +85°C
Frequency Range 20 kHz to 170 kHz
Sensitivity Adjustable in 4 increments
Dimensions 78×40×108 mm (L×W×H)
Signal Holding Time Unlimited / Limited to 10 minutes when loop is permanently covered
Loop Inductance Ideal range: 100μH to 300μH
Loop Connection Wiring Maximum length: 20 meters
Industry Keywords: Loop Detectors, vehicle loop detectors, loop sensors, vehicle sensors, car parking sensors, car park detectors
Application & Advantages
This loop detector is specifically designed for vehicle access control applications, ensuring barrier gates remain open until vehicles completely exit the detection area, providing enhanced safety and operational efficiency.
Delivery Information
Samples: 3 working days | Bulk orders: 5 to 7 days
Related Products
We also manufacture tripod turnstiles, UHF readers, sliding gate motors, swing gate motors, garage door openers, pedestrian access control turnstiles and barriers, and related accessories.
Safe Guarding Access Inductive Loop Detectors Microprocessor 10ms Fast Reaction Time 1
Advanced Product Features
  • Reset Switch: Manual reset capability for system recovery during testing and registration
  • Selectable Pulse Time: Configurable pulse relay duration of 1S or 0.5 Seconds
  • Pulse Relay Selection: Activation on vehicle detection or departure from loop
  • Sensitivity Reinforcement: Maximum sensitivity setting to detect large vehicles like trucks
  • Adjustable Sensitivity: Four sensitivity settings for precise detection control
  • Adjustable Frequency: Four frequency settings to prevent interference with adjacent loops
  • Filtering Option: Detection delay feature to eliminate false triggers from small or fast-moving objects
  • Permanent Presence Detection: Continuous vehicle detection during extended stationary periods
