BLDC Brushless Motor Flap Barrier Gate Turnstile Acrylic Barrier Baffle Barcode Scanner

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB10
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month
Product Details
Access Direction Bi-directional Infrared Sensor 4 To 5 Pairs
Housing Matarial SS304/Mild Steel Motor DC Brush Motor/brushless Motor
Access Rate 30 To 35 Person/minute Application Pedestrian Access Control
High Light

BLDC Brushless Motor Flap Barrier Gate

,

Acrylic Baffle Flap Barrier Gate

,

Barcode Scanner Flap Gate Turnstile

Leave a Message
Product Description

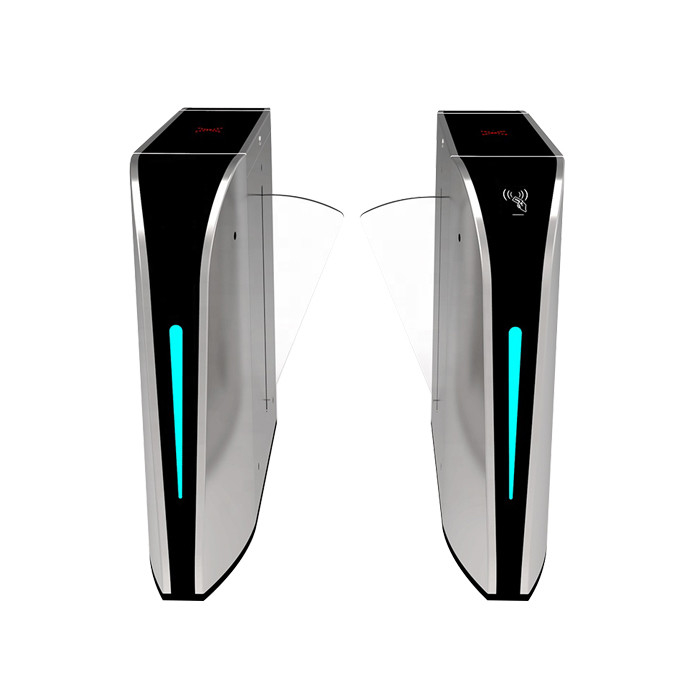

BLDC brushless Motor Acrylic Barrier Baffle Barcode Scanner Flap Barrier Gate Turnstile



PRODUCT DESCRIPTION



Sinomatic new arrival elegant design high speed turnstile optical face recognition turnstiles led speed gates turnstiles flap barriers
This beautiful design optical Flap turnstile gate is an ideal solution for pedestrian accessing with high through-out rate and high durability.


High quality brush finish stainless steel + black paint turnstile housing;


Heavy duty flap turnstile mechanism;



Visible LED Direction indicators at each side;



Select-able operating modes- single direction, bi-direction, always free or always locked



IP44 Weatherproof Protection rating



Automatic reset of barrier gate after each passage



Adjustable time out delay.



Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping



Integration support with any RFID/Biometric Reader through NO input
BLDC Brushless Motor Flap Barrier Gate Turnstile Acrylic Barrier Baffle Barcode Scanner 0

Power AC100V-240V, DC24V
Operating Temperature -45℃-60℃
Relative Humidity ≤95%, No Condensation
Passage Width 600mm
Passing Speed Normally open-40 persons/min; Normally closed-30 persons/min
Manufacturing Technique CNC laser cutting
Motor Brush or brushless motor optional
Gate Opening and Closing time ≤ 0.4S
Infrared Sensors 4 or 5 Pairs
Working environment indoor and outdoor(shelter needed)
Motor Operation Speed 1600R/Min
Communication Distance ≤1200M
Input Connection +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms
Communication Connection RS485 Communication(optional)
Barrier Material Acrylic glass
Material Stainless steel 304/mild steel, thickness is no less than 1.2mm
Running Life 5--8 Million(Continuous Opening and Closing Operation)
Protect Level IP54
Size 1400*300*985mm
Colour SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Colour you like
Operation Place Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control




Main function and features



1. Can install Smart card reader and access controller to realize access control function


2. Can be expanded to automatic identification system, realizing function of access control, pedestrian flow control, attendance check or fare collection.


3. Equipped with international standard electrical interface, can be easily integrated with other R/W device, also can be controlled and management through remote supervision computer


4. Equipped with a couple of infrared photocells, alarm at unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian


5. LED gate direction indicator that displays the current operational state to pedestrian. Green arrow for entry free, Red cross for passage locked.


6. Can open the turnstile by two input signals (signals can be input by access controller, button or other equipments)


7. Provide audible sound prompt and information display function.


8. The flaps will open automatically during power interruption, and recover N/C mode after power on(optional)


9. Counting function. Flap closes after passing N pedestrians continuously by reading cards N times correspondingly (N<=16)


10.Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.



11.The integrative terminal of face recognition uses the world's leading face detection and recognition algorithm, runs it in high performance embedded platform, coordinates 200W pixel camera, realizes face detection, face tracking, and face recognition
