304 Stainless Steel Three Arm Turnstile Bi Directional Access Control System
  • 304 Stainless Steel Three Arm Turnstile Bi Directional Access Control System
  • 304 Stainless Steel Three Arm Turnstile Bi Directional Access Control System
  • 304 Stainless Steel Three Arm Turnstile Bi Directional Access Control System
304 Stainless Steel Three Arm Turnstile Bi Directional Access Control System

304 Stainless Steel Three Arm Turnstile Bi Directional Access Control System

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Power Consumption:
100W Maximum
Control Voltage:
24V
IP:
IP54
Direction:
Bi-directional
Service Life:
≥ 5 Million Times
Packing:
Plywood Box
Highlight:

304SS Three Arm Turnstile

,

Access Control Three Arm Turnstile

,

Bi Directional Tripod Turnstile Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,000pcs per month
Product Description
304 Stainless Steel Three Arm Turnstile Bi-Directional Access Control System
Shenzhen China 304 Stainless Steel Gate Access Control System Three Arm Tripod Turnstile
Product Overview

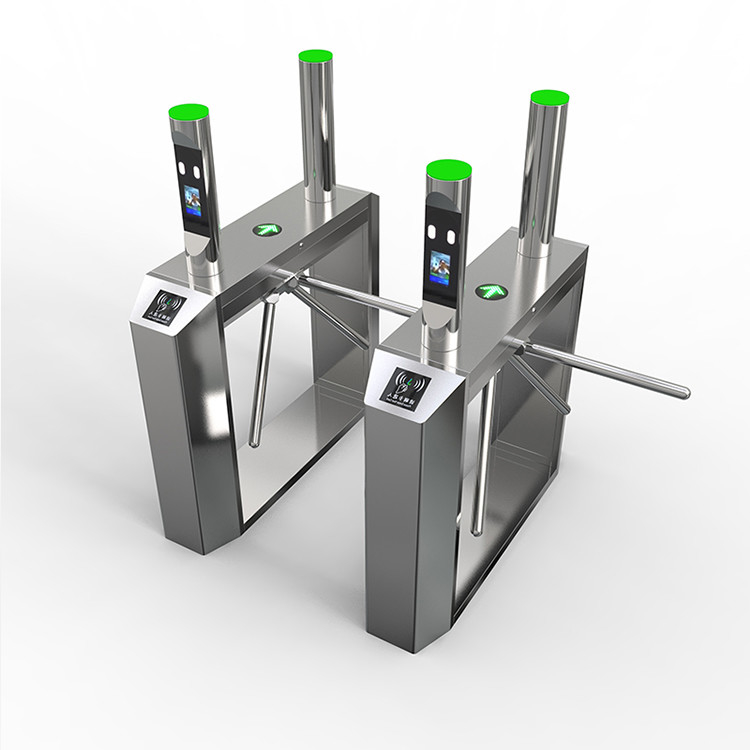

This tripod turnstile is a space-efficient security barrier with a compact design that provides sufficient space to integrate any access control system. This bi-directional device controls entrance flow with excellent anti-tailgate performance. Featuring modular design for easy and fast maintenance, this tripod turnstile offers a cost-effective solution for entrance control applications.
304 Stainless Steel Three Arm Turnstile Bi Directional Access Control System 0
Product Advantages
  • SUS304 stainless steel housing
  • Bi-directional tripod turnstile with arm drop function
  • LED pictograms for intuitive user experience and high throughput in both directions
  • High quality at an affordable price
  • Low power consumption
  • Wide range of accessories
  • Easy and simple installation process
  • Easy to maintain and monitor
  • Reversed RFID card reader window
304 Stainless Steel Three Arm Turnstile Bi Directional Access Control System 1
Technical Specifications
Case Material SS304
Barrier Arm Material SS304
Production Process CNC Laser Cutting
Size 1200*280*980mm
Power Input AC100-240V, 50/60HZ
Operation Voltage DC24V, 3A, Power: 40W
Electromagnetic Duty Cycle 100%
Barrier Arm Length 510mm
Arm Max Applied Force 80Kg
Arm Operation Driving Force 3Kg
Passage Direction Single directional/Bi-directional (Optional)
Throughput Rate 30-35 persons/minute
Operating Time 0.2 seconds
Automatic Reset Function Automatically locked within set time (Adjustable)
Operation Humidity 0~95% (No Freezing)
Operation Temperature -15℃~+60℃
Operation Environment Indoor, Outdoor (Shelter)
Protection Level IP45
Communication Interface TCP/IP (optional)
MCBF 5,000,000 Cycles
Performance Features
  • Auto replacement function, re-position after person passes by
  • Anti-tail function auto-locks once turned 120°
  • Arms automatically drop when power is off, ensuring unblocked passage during accidents
  • Standard electronic interface for remote control through internet, compatible with various card readers and relay signals
  • Diverse control modes optional, changeable for convenient management
  • Auto alert error function for easy maintenance and operation
  • Manual button or remote control with bi-directional passage
  • Open signal with memory or without set function
  • Red and green lights indicate pass or stop status for easy exit and entrance
Why Choose Our Products
  • Over 20 years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model stock availability
  • OEM/ODM orders accepted to meet client requirements
  • Trial orders accepted for sample testing before bulk orders
  • Online technical support for carefree business partnerships
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
