Automatic Tripod Turnstile Gate Access Control Communication Interface Stainless Steel
  • Automatic Tripod Turnstile Gate Access Control Communication Interface Stainless Steel
  • Automatic Tripod Turnstile Gate Access Control Communication Interface Stainless Steel

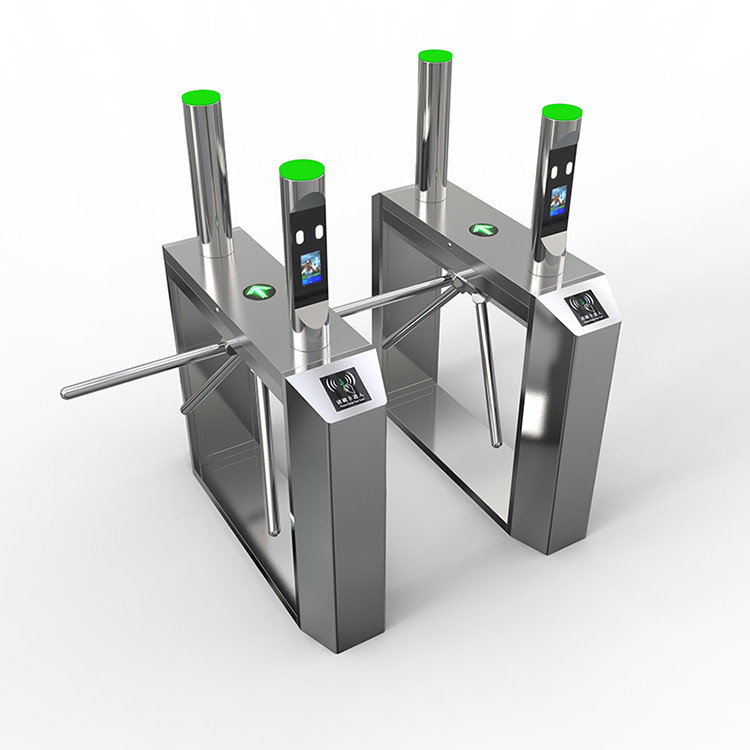

Automatic Tripod Turnstile Gate Access Control Communication Interface Stainless Steel

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Cabinet Dimension:
1200*280*980 Mm
Barrier Diameter:
38mm
Control Voltage:
24V
IP:
IP54
Direction:
Bi-directional
Service Life:
≥ 5 Million Times
High Light:

Communication Interface tripod turnstile gate

,

tripod turnstile gate IP54

,

Stainless Steel Tripod Turnstiles Door

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

Security Access Control Communication Interface Stainless Steel Automatic tripod turnstile gate mechanism



Product description



The whole profile is stamped from the standard SS304, beautiful and generous shape, rust proof, durable, resisting external damage.The passageway composed of rectangular frame and barrier arm can provide orderly and civilized access for the pedestrians, prevent illegal access., and quickly control the dropping or lifting the arm in emergency.



The adoption of standard electrical interface can easily integrate the bar code card, ID card, IC card and other card readers into the equipment, to provide civilized and orderly access for pedestrians, at the same time can prevent unauthorized persons access.In addition, the system is specially designed the function to meet the fire prevention requirements to ensure that the passage is unimpeded, convenient for pedestrians timely evacuating in emergency.



Automatic Tripod Turnstile Gate Access Control Communication Interface Stainless Steel 0



Product Advantage:

1. Tripod turnstile gate are compact and cost-effective entrance solutions.
2. The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
3. Tripod turnstile gate is ideal for indoor and outdoor settings.
4. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and

Bio-metricdevice).
6. In case of emergency, the tripod turnstile gate will drop down when power off.
7. It is suitable for all kinds of places.


Performance and Feature:


1. Auto replacement function, re-position after person pass by.
2. Anti tail function auto-lock once turn120°
3. Arms auto drop when power off, insure unblocked when accident.
4. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work.
5. Diverse control mode optional, changeable due to varying, convenient for your manage.
6. Auto alert error function, comfort for user maintain and operate.
7. Manual button or remote control ,Bio-directional passage.
8. Open signal with memory or with out set function.
9. Red and green light to show pass or stop, leisure to exit and entrance.





TECHNICIAL SPECIFICATIONS



ITEM SPECIFICATIONS
Housing material 304 grade stainless steel
Material thickness 1.2mm at least
Power voltage
AC220±10%,50Hz, AC110±10%,60Hz
Working environment
-20℃~+60℃
Humidity
5%~90%
Length of the bar
500mm
Housing Size
1200*280*980mm
Pass speed
30 Persons/min
Movement working power
DC24±10%
Width of passage
≤550mm
Open direction
Single and Double
Work environment
Outdoor and indoor
Service life
≥5 million
Weight
About 60kg
Open signal
Relay signal input
Card reader installation position
Two
Controller mounting position
One
