Swing Gate Operator
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-PK400AC |

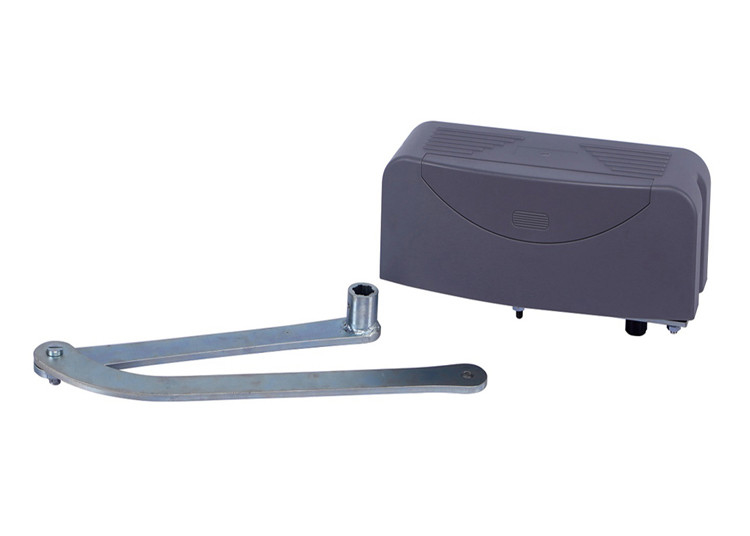

Outdoor Waterproof Remote Control Rolling Code WIFI Mobile App Electric PK400AC Swing Gate Opener Motor
DETAILED PRODUCT DESCRIPTION
The PK400AC gate opener designed for residential courtyard swing gate use, gate leaf weight up to 400 Kg and width up to 3.0 meters.
*Safe and reliable performance.
*Adjustable moving speed.
*Keypad / single button interface.
*Alarm lamp, Photo beam & safety beam interface.
*User can select auto-close function.
*Integrated mechanical limit switches that permits to eliminate the ground stops.
*Available for installs 2 openers or 1 opener with a single control box.
*Available with articulated arm or sliding arm.
*Manual key release design for emergency purposes.
Main technical parameters
| Unit Model | PK400AC |
| Power Supply | 220V,50Hz;110V,60Hz |
| Max. Gate Weight | 400KG / Leaf |
| Max. Gate Length | 3.0 m / Leaf |
| Motor Power | 200W |
| Gate Moving Speed | 10 second per 90 angle |
| Limit Switch | Mechanical |
| Recording of up Remotes | 25 |
| Decoding / Frequency | Rolling code / 433.92MHz |
| Work Duty | S2 15min |
| Noise | ≤60dB |
| Work Temperature | -20°C~70°C |
| Gross Weight | 28KG (2 package) |
Installation guide
PK400AC swing gate opener is applicable to single leaf gate weight less than 400kg, and length of the single leaf swing gate should be less than 2.5m. The drive mode adopts the worm and worm gear to combine the pinion transmission. This gate opener must be installed inside the enclosure or yard for protection.
Installation drawing for main engine
The two engines are respectively installed at both sides of the gate and the Figure 6 shows the installation relation between the housing, main engine and mounting plate. The main engine at the left hand is taken as an example for detailed description of installation method and can be a reference for the installation method of the right one.
Preparation work before installation
a) Before installing the door opener, please confirm the correct installation of the door to ensure that the door can be easily manually operated. Dismantle the plastic cover on the main engine and mounting base plate before installation and keep the relevant fasteners properly;
b) Install the electric lock, the distance between the door bottom and ground should be 40-50mm. If not install the electric lock, the distance between door bottom and ground should be ≥20mm.
Cable
Please prepare the fasteners for connecting mounting plate and wall according to the installation environment, and the power cable for main engine (the number of each single engine power supply cable core shall not be less than 4 PCS, the sectional area of cable core shall not be lower than 1.5mm²), the limit switch cable for main engine (the number of each single engine limit switch cable core shall not be less than 3 PCS, the sectional area of cable core shall not be less than 0.75mm²), the power
cable for control box (the number of cable core shall note be less than 3 PCS, the sectional area of cable core shall not be less than 1.5mm²). The length is determined by the user of according to the situation in the installation site.
Note: The pipe outlet should be facing down to avoid rain water entering the pipe along the cable.
Mounting brackets fixation
In order to install the PK400AC main engines firmly, recommend to use the expansion screws to fix the mounting brackets.
FOR MORE DETAILS, PLEASE CLICK THE BELOW LINK TO DOWNLOAD THE USER MANUAL.
