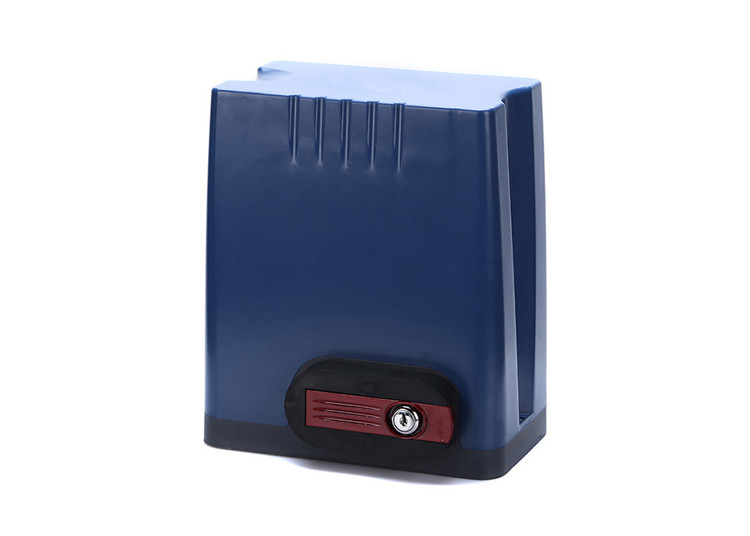

Gear Driven 800kg Sliding Gate Operator DC Motor Residential Automatic
  • Gear Driven 800kg Sliding Gate Operator DC Motor Residential Automatic
  • Gear Driven 800kg Sliding Gate Operator DC Motor Residential Automatic
Gear Driven 800kg Sliding Gate Operator DC Motor Residential Automatic

Gear Driven 800kg Sliding Gate Operator DC Motor Residential Automatic

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DKC800DC
Product Details
Power Supply:
220V,50Hz;110V,60Hz;
Limit Switch:
Magnetic Limit Switch
Max.gate Weight:
800 KG
Gate Move Speed:
18m/min
Drive:
Gear Driven
Work Duty:
S2 20min
Highlight:

DC24V motor Sliding Gate Operator

,

Magnetic limit switch Sliding Gate Operator

,

800 KG Sliding Door Motor

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
1,000 pcs per month
Product Description
Gear Driven 800kg Sliding Gate Operator DC Motor Residential Automatic
Gear Driven 800kg DC Motor Residential Automatic Door Opener / Sliding Door Motor / Gate Operator
Gear Driven 800kg Sliding Gate Operator DC Motor Residential Automatic 0
Product Overview
  • DC24V motor with built-in control unit
  • Optional backup battery connection
  • Solar system compatible
  • Keypad/single button interface
  • Alarm lamp, photo beam and safety beam interface
  • User-selectable auto-close function
  • Soft start and slow stop (smart version, optional)
  • Auto-reverse function when hitting obstacle during closing (smart version, optional)
  • Manual key release design for emergency power failure
Technical Specifications
Model DKC500DC DKC800DC
Color Blue/Gray/Black
Max Gate Weight 500KG 800KG
Motor Power 150W 170W
Output Torque 14N·m 18N·m
Limit Switch Magnetic Limit Switch
Gate Move Speed 13m/min or 14m/min
Remote Control Range >30M
Design Style Modern
Origin China
Gear Driven 800kg Sliding Gate Operator DC Motor Residential Automatic 1
Key Features & Functions
  • Designed for residential use, handles gates up to 500/800 kg with operating distance up to 8 meters
  • Compact structure with novel appearance and easy installation
  • Built-in control board with optional backup battery and solar charger compatibility
  • MCU-controlled operation for precise gate movement
  • Keypad and single button interface options
  • Alarm lamp, photo beam & safety beam interfaces
  • User-selectable auto-close function
  • Magnetic limit switch with soft start & slow stop function
  • Manual key release design for emergency situations
  • Automatic stop when hitting obstacles during opening, auto-reverse when hitting obstacles during closing
  • Full solar system compatibility
Internal Components
Gear Driven 800kg Sliding Gate Operator DC Motor Residential Automatic 2
Optional Accessories
  • Metal Gear Rack & Nylon Gear Rack (order according to your gate length)
  • Photo beam sensor
  • Keypad systems
  • Push button
  • Warning light
  • Solar panel
  • Backup batteries
Installation Requirements
The DKC500DC/DKC800DC sliding gate opener is designed for gates weighing less than 500kg/800kg with sliding gate length less than 8m. The drive mode utilizes rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.
Gear Driven 800kg Sliding Gate Operator DC Motor Residential Automatic 3
Installation Procedures
Pre-Installation Preparation
Ensure the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installing the gate opener.
Cable Installation
To guarantee normal operation and protect cables from damage, bury the motor & power cable and controlling cable separately using two PVC tubes.
Concrete Pedestal
Cast a concrete pedestal measuring 400mm x 250mm with a depth of 200mm in advance to firmly install the DKC500DC/DKC800DC gate opener. Ensure the distance between the gate and gate opener is appropriate before casting the pedestal.
For complete installation and operation details, download the user manual:
DKC500DC, DKC800DC User Manual.pdf
