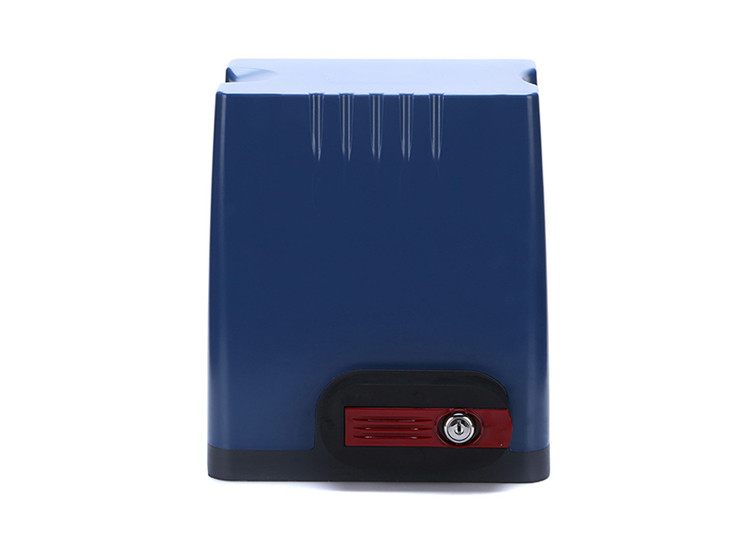

Automatic Residential Sliding Gate Opener DC Motor 24V / 150W Remote Control
  • Automatic Residential Sliding Gate Opener DC Motor 24V / 150W Remote Control
  • Automatic Residential Sliding Gate Opener DC Motor 24V / 150W Remote Control

Automatic Residential Sliding Gate Opener DC Motor 24V / 150W Remote Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DKC500DC
Product Details
Power Supply:
220V,50Hz;110V,60Hz;
Limit Switch:
Magnetic Limit Switch
Max.gate Weight:
500 KG
Gate Move Speed:
13m/min
Drive:
Gear Driven
Gate Moving Speed:
13m/min
Highlight:

Gear driven Sliding Gate Opener

,

DC Motor Sliding Gate Opener

,

150W residential automatic sliding door opener

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
1,000 pcs per month
Product Description
Automatic Residential Sliding Gate Opener DC Motor 24V / 150W Remote Control
DC Motor 24V/150W 500 kgs Gate Weight Capacity Remote Control Automatic Residential Use Sliding Gate Opener
Product Features
  • DC24V motor with built-in control unit
  • Optional connect backup battery
  • Solar system compatible
  • Keypad/single button interface
  • Alarm lamp, photo beam and safety beam interface
  • User can select auto-close function
  • Soft start and slow stop (smart version, optional)
  • Auto-reverse function when hitting obstacle during closing (smart version, optional)
  • Manual key release design for emergency power failure
Automatic Residential Sliding Gate Opener DC Motor 24V / 150W Remote Control 0 Automatic Residential Sliding Gate Opener DC Motor 24V / 150W Remote Control 1
Technical Specifications
Model DKC500DC DKC800DC
Color Blue/Gray/Black
Max gate weight 500KG 800KG
Motor power 150W 170W
Output torque 14N·m 18N·m
Limit switch Magnetic Limit switch
Gate move speed 13m/min or 14m/min
Remote control range >30M
Design style Modern
Origin China
Advanced Functions & Features
  • Designed for residential use, weight capacity up to 500/800 Kg and operating distance up to 8 meters
  • Compact structure, novel appearance, easy installation
  • Built-in control board, optional for backup battery and solar charger
  • MCU is supplied to control the gate opener
  • Keypad / single button interface
  • Alarm lamp, Photo beam & safety beam interface
  • User can select auto-close function
  • Magnetic limit switch, soft start & slow stop function
  • Manual key release design for emergency purposes
  • Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing
  • Solar System compatible
Optional Accessories
  • Metal Gear Rack & Nylon Gear Rack are optional, you can order the rack length according to your gate length
  • Photo beam sensor
  • Keypad systems
  • Push button
  • Warning light
  • Solar panel
  • Backup batteries
Installation Requirements
DKC500DC/DKC800DC sliding gate opener is applicable to gate weight less than 500kg/800kg, and length of the sliding gate less than 8m. The drive mode adopts the rack and gear transmission. This gate opener must be installed inside the enclosure or yard for protection.
Automatic Residential Sliding Gate Opener DC Motor 24V / 150W Remote Control 2
Installation Procedures
Preparation work before installation
Please make sure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installing the gate opener.
Cable installation
In order to guarantee the normal operation of the gate opener and protect the cables from damages, please bury the motor & power cable and controlling cable separately with two PVC tubes.
Concrete pedestal
Please cast a concrete pedestal with the size can be 400mm x 250mm, depth be 200mm in advance, so as to firmly install DKC500DC/DKC800DC gate opener. Please make sure the distance between the gate and gate opener is appropriate before casting the pedestal.
Documentation
FOR MORE DETAILS, PLEASE CLICK THE BELOW LINK TO DOWNLOAD THE USER MANUAL.
DKC500DC, DKC800DC User Manual.pdf
