Full Height Turnstile
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-FHT01 |

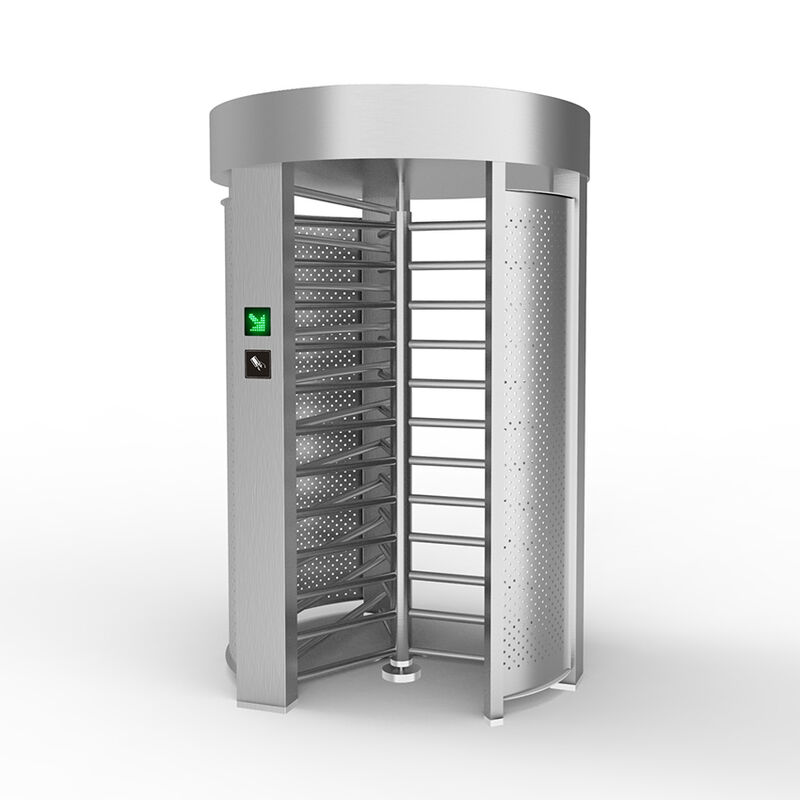

High Security 120 Degree Semi-automatic Full Height Turnstile Access Control System
Product description
This series full height turnstile is s a high-tech product which mainly provides high Security level management to passageway. The device use
high quality stainless steel and total water proof design, it can be installed directly outdoor. The device works in bi-direction, only after the user
access granted, the barrier can be pushed open. When power ofF, the barrier can be rotated freely for fre alarm security in fail-safe mode by
default. Or the device can be set to fail-secure mode, when power off the barrier can't be freely rotated.
Technician specifications
| Structure parameters | |
| Housing material | 304 grade stainless steel |
| Thickness | 1.5mm |
| Surface treatment | Brushed finish |
| Technical parameters | |
| Size | 1500*1350*2240mm |
| Lane width | 610mm |
| Passing speed | 30--40 people/min |
| Open/close speed | 0.2sec |
| Weight | 200KG |
| Turning angle | 120 degree/ 90 degree |
| MCBF | 5.000.000 times |
| Application | Indoor or outdoor |
| Rotating directional | Single way or Bi-directional adjustable |
| Noise | <55db |
| Operating temperature | -25 to 70℃ |
| Relative humidity | 5% to 95% |
| Package | Plywood case |
| Electronic parameters | |
| Power supply | AC100V~240V, DC24V |
| Power consumption | 100W |
| Input signal | Dry contact |
| Driving motor | Solenoid |
| Mainboard | Independent development mainboard |
Main function and features
1. Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.
2. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
3. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
4. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
5. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
6. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
7. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
8. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
