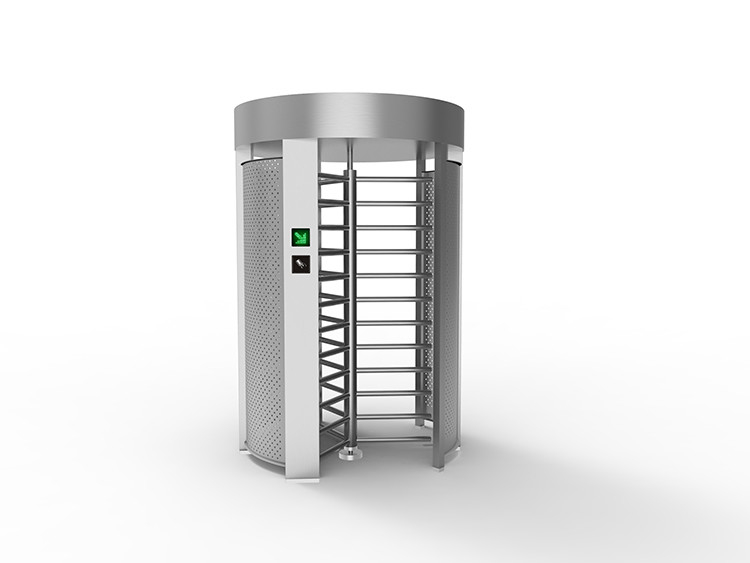

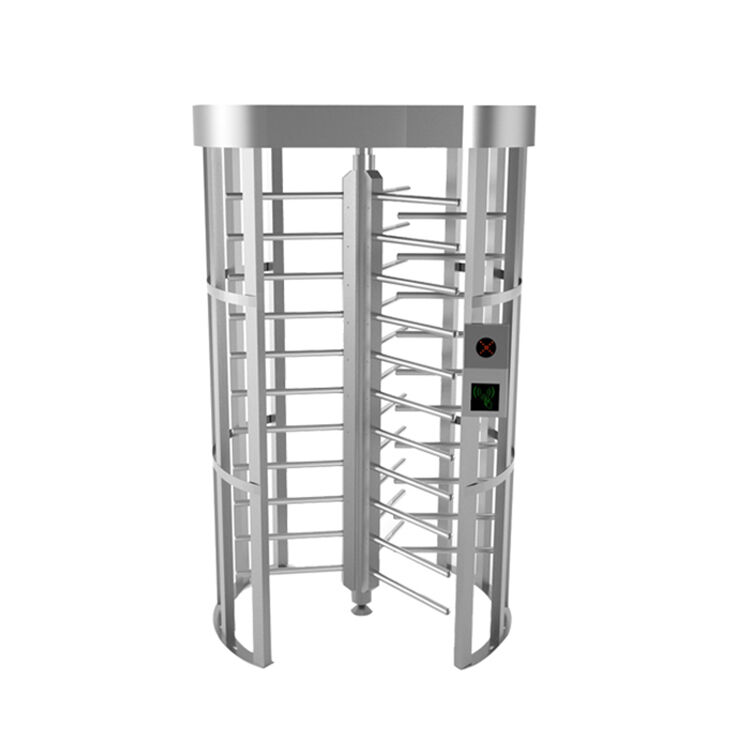

120 Degree Semi Automatic Full Height Turnstile High Security Access Control System
  • 120 Degree Semi Automatic Full Height Turnstile High Security Access Control System
  • 120 Degree Semi Automatic Full Height Turnstile High Security Access Control System
  • 120 Degree Semi Automatic Full Height Turnstile High Security Access Control System
120 Degree Semi Automatic Full Height Turnstile High Security Access Control System

120 Degree Semi Automatic Full Height Turnstile High Security Access Control System

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT01
Product Details
Arm Diameter:
38mm
Housing Material:
304/316 Stainless Steel/mild Steel
Passage:
About 600mm
Control Device:
Solenoid
Control Voltage:
DC24V
Package:
Plywood Box
Highlight:

120 Degree Full Height Turnstile

,

600mm arm Full Height Turnstile

,

Semi automatic Access Control Turnstile gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,00pcs per month
Product Description
120 Degree Semi Automatic Full Height Turnstile High Security Access Control System
High Security 120 Degree Semi-automatic Full Height Turnstile Access Control System
Product Advantages
  • Stainless steel construction enhances entrance security grade
  • Authorized pedestrian access only, one person at a time
  • 3 or 4 units of 90-degree bending arms ensure orderly single-file passage
  • Full-height design enables unattended operation, reducing labor costs
  • Automatic free exit mode activation during fire emergencies for safe evacuation
  • Versatile application for various scenarios with outdoor waterproof and corrosion-resistant properties
120 Degree Semi Automatic Full Height Turnstile High Security Access Control System 0
Technical Specifications
Size 1500*1343*2300mm
Material 1.2mm 304 stainless steel (other materials optional)
Passage Width Approximately 600mm (customizable)
Passage Direction Single directional/Bi-directional
Pass Rate 30-35 persons/minute
Operating Time 1 second
Power Input AC220V/110V, 50/60HZ
Working Voltage 24V
Working Humidity 30%~95%
Working Temperature -40℃~+70℃
Working Environment Indoor/outdoor
Communication Interface Dry contact
Service Life ＞5 million cycles
Main Functions and Features
Rainproof housing with anti-corrosion coating and 304 or 316 stainless steel construction
Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
Automatic arm positioning: rotates to next idle position if moved beyond half-way, returns to current position if moved less than half-way
Built-in adjustable tensioner controls rotation force for easy operation by all users including elderly and children
Configurable bi-directional or uni-directional operation with key-locked housing for security
Innovative mounting surface design ensures simple and convenient installation for system integrators
Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint systems (access controller required)
Automatic reset function cancels user authority if passage isn't completed within preset time (default: 5 seconds)
Automatic regulated hydraulic buffer device ensures quiet, impact-free operation
