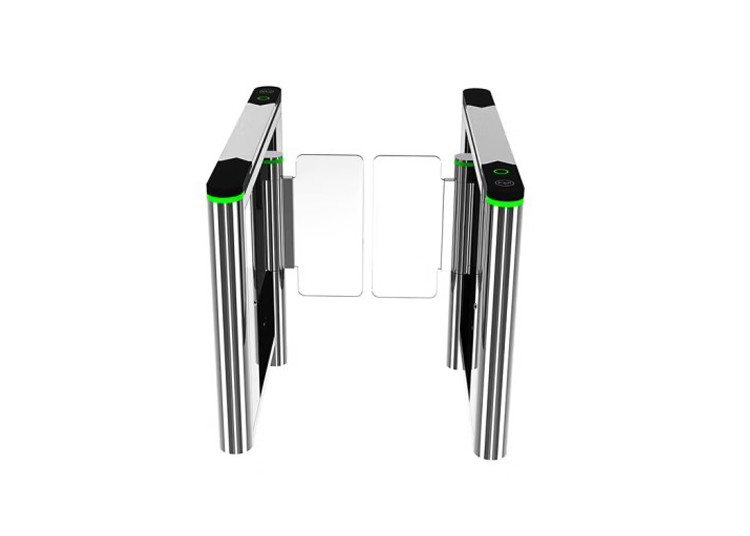

Anti Tailing Speed Gate 24V Brushless Motor Drive Fast Swing Barrier Turnstile
  • Anti Tailing Speed Gate 24V Brushless Motor Drive Fast Swing Barrier Turnstile
  • Anti Tailing Speed Gate 24V Brushless Motor Drive Fast Swing Barrier Turnstile
  • Anti Tailing Speed Gate 24V Brushless Motor Drive Fast Swing Barrier Turnstile

Anti Tailing Speed Gate 24V Brushless Motor Drive Fast Swing Barrier Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HSG01
Product Details
Material:
SS304/ Acrylic
Direction:
Single/bi-directional
Power Supply:
AC100V~240V; DC24V
IP Rate:
54
MCBF:
5 Million Times
Motor Type:
BLDC
Highlight:

Anti Tailing speed Turnstile Gate

,

Brushless Motor speed Turnstile Gate

,

Acrylic SS304 swing barrier turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
500 pcs per month
Product Description
Anti Tailing Speed Gate with 24V Brushless Motor Drive
Sinomatic Intelligent speed gate turnstile features a transparent, bright, and elegant design. The housing is constructed from 1.5mm thick 304 stainless steel, while the mechanism incorporates BLDC motor (or optional servo motor) and precise position encoder technology. This ensures rapid, quiet, stable, and accurate rotation with low-power consumption for energy conservation and environmental protection.
Anti Tailing Speed Gate 24V Brushless Motor Drive Fast Swing Barrier Turnstile 0
Technical Specifications
Specification Details
Model SN-HSG01
Case Material SS304 (1.5mm)/Acrylic (10mm)
Barrier Arm Material Transparent Acrylic (Color Optional)
Production Process CNC Laser Cutting
Size 1200*150*1000mm (Customization acceptable)
Power Input AC100-240V, 50/60Hz
Operation Voltage DC24V, 3A, Power: 40W (Servo Motor Optional)
Electromagnetic Duty Cycle 100%
Passage Width 600mm (Customization acceptable)
Passage Direction Single directional/Bi-directional (Optional)
Operating Time 1S
Throughput Rate 30 persons/minute (Normally Closed) or 40 persons/minute (Normally Open)
Reset Time after Power On 3S
MCBF 5,000,000 Cycles
Automatic Reset Function Automatically locked within set time (Time Adjustable)
LED Indicator Yes
Operation Humidity 0~95% (No Freezing)
Operation Temperature -10℃~+50℃
Operation Environment Indoor, Outdoor (Shelter)
Protection Level IP45
Communication Interface Standard RS485 interface, distance ≤1200 meters
Input Interface Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA
System Integration
Anti Tailing Speed Gate 24V Brushless Motor Drive Fast Swing Barrier Turnstile 1
Product Features
  • DC brushless motor supporting at least 5 million normal passages
  • Multiple infrared detection sensors with anti-tailing tracking control technology
  • Integrated voice module with customizable broadcast content
  • LED indicators for traffic direction and status display
  • Anti-shock function with automatic door wing locking during intrusion
  • Self-test, self-diagnosis, and automatic alarm functions including illegal intrusion, reverse intrusion, and trailing alarms
  • Automatic reset function cancels permissions after specified time
  • Flexible configuration of access status (controlled, free traffic, no traffic)
  • Memory mode for continuous and fast traffic
  • Compatible with access control, consumption, ESD, and E-ticket systems
  • One-way or two-way control options
  • Remote control and administration capability
  • LED lamp indicator system
Applications
Intelligent high speed gates are compatible with IC card, ID card, barcode card, and fingerprint reading card recognition devices. They provide civilized, orderly access methods and effectively manage staff access. Widely used in stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring intelligent access management.
Frequently Asked Questions
What is your product's biggest advantage?
DC Brushless Motor - no maintenance throughout life, no attrition, low noise, high intelligence.
What is your flap gates opening and closing time?
≤0.4 seconds
What is the swing barrier gate working environment?
Can be used indoor and outdoor (with shelter)
Can I customize it?
Yes, welcome. We are the manufacturer and welcome OEM orders.
What's your warranty?
1 year time warranty.
