Smoothly Running Baffle Gate Turnstile Pedestrian Flap Barrier With BLDC Motor
  • Smoothly Running Baffle Gate Turnstile Pedestrian Flap Barrier With BLDC Motor
  • Smoothly Running Baffle Gate Turnstile Pedestrian Flap Barrier With BLDC Motor
  • Smoothly Running Baffle Gate Turnstile Pedestrian Flap Barrier With BLDC Motor
Smoothly Running Baffle Gate Turnstile Pedestrian Flap Barrier With BLDC Motor

Smoothly Running Baffle Gate Turnstile Pedestrian Flap Barrier With BLDC Motor

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB02
Product Details
Motor Type:
BLDC Motor
Operating Time:
0.2 Second
Barrier Color:
Clear/red/blue Etc
Infrared Sensor:
Included
Matarial:
SS304/SS316/Acrylic
Warranty:
12 Months
Highlight:

Anti Breakthrough Pedestrian Flap Barrier

,

BLDC motor baffle gate turnstile

,

Acrylic baffle gate turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

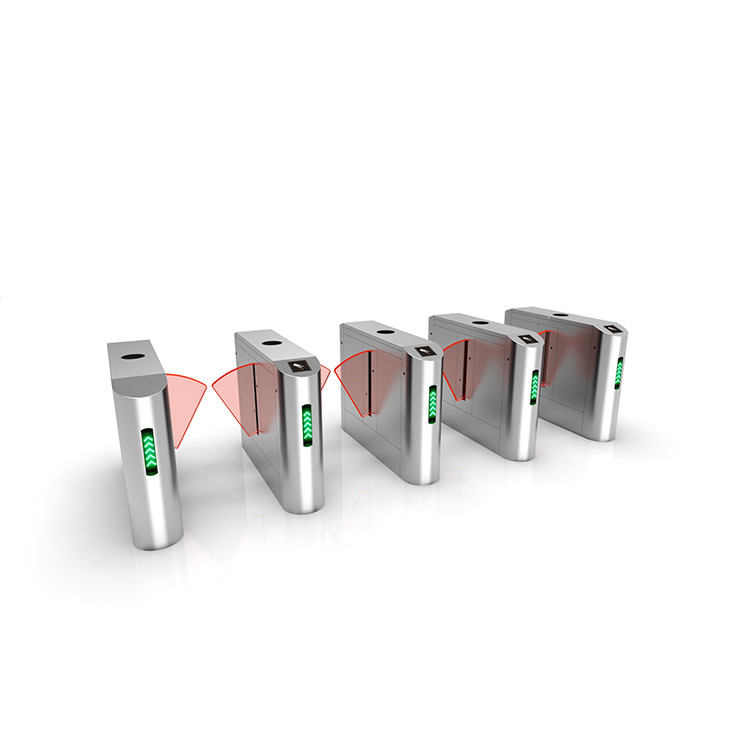

Smoothly Running Baffle Gate Turnstile Pedestrian Flap Barrier With BLDC Motor
Product Overview
This sinomatic flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume. It features a single lane flap barrier turnstile series designed for smooth and silent operation with minimal power consumption. Constructed from durable stainless steel for long-lasting performance.
The flap barriers remain in a locked position by default, securing access to protected areas. Upon recognition of valid credentials through RFID or fingerprint readers, the barriers automatically retract upward to permit authorized passage. Emergency protocols ensure barrier retraction during power outages or emergencies, with optional battery backup for continuous safety operation.
Combining security with convenience in a compact, elegant design, this system provides reliable access control for various applications.
Smoothly Running Baffle Gate Turnstile Pedestrian Flap Barrier With BLDC Motor 0
Technical Specifications
Specification Details
Power Requirements AC 100-120V/200-240V, 50/60Hz
Working Temperature -28℃ to 60℃
Working Humidity 5% to 80%
Working Environment Indoor/Outdoor (if sheltered)
Speed of Throughput RFID: Maximum 30/minute
Fingerprint: Maximum 25/minute
Lane Width 600mm
Dimensions L=1200mm, W=280mm, H=980mm
Dimension with Packing L=1300mm, W=400mm, H=1160mm
Net Weight 60kg
Weight with Packing 80kg
LED Indicator Yes
Cabinet Material SUS304 Stainless Steel
Sensor 4 pairs
Barrier Material Acrylic (18mm)/PMMA (thickness 50mm, red/blue optional)
Barrier Movement Retracting
Emergency Mode Yes
Security Level Medium
MCBF 5 million cycles
Transmission Variant Belt transmission
Enclosure Rating IP54
Key Features & Functions
  • Compatible with smart card readers and access controllers for comprehensive access control functionality
  • Expandable to automatic identification systems for access control, pedestrian flow management, attendance tracking, and fare collection
  • International standard electrical interfaces for easy integration with other reader/writer devices and remote computer management
  • Infrared photocell sensors for unauthorized entry detection, tailgating prevention, and anti-strike protection
  • LED gate direction indicators displaying operational status (green arrow for entry, red cross for locked)
  • Dual input signal capability for turnstile activation via access controller, buttons, or other equipment
  • Audible sound prompts and information display functions
  • Automatic barrier opening during power interruption with normal closed mode restoration after power recovery (optional)
  • Counting function for continuous pedestrian passage management (up to 16 persons)
  • Reverse passing alarm for unauthorized direction movement detection
  • Advanced face recognition terminal with 200W pixel camera for face detection, tracking, and recognition
Frequently Asked Questions
Who are we?
Based in Guangdong, China since 2002, we serve domestic and international markets including South America, Southeast Asia, North America, Eastern Europe, and more. Our team consists of 51-100 professionals dedicated to quality manufacturing.
How can we guarantee quality?
We maintain strict quality control with pre-production samples and final inspections before shipment to ensure product excellence.
What products do we offer?
Our product range includes Tripod Turnstiles, Speed Glass Gates, Barrier Gates, Swing Gate Openers, and Sliding Gate Openers.
Why choose us over other suppliers?
Sinomatic Technology integrates intelligent machinery and electronic technology with proprietary hardware and software designs. We offer ODM/OEM services to meet diverse client requirements in domestic and international markets.
What services do we provide?
We accept various delivery terms (FOB, CIF, EXW, DDP, Express Delivery) and payment methods (T/T, L/C, Western Union, Cash, Escrow) in multiple currencies (USD, EUR, HKD, CNY). Our team communicates in English, Chinese, Spanish, and other languages.
