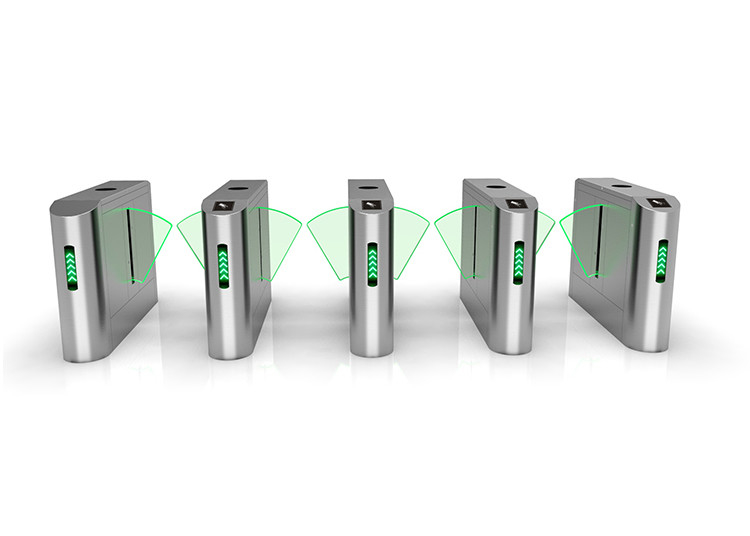

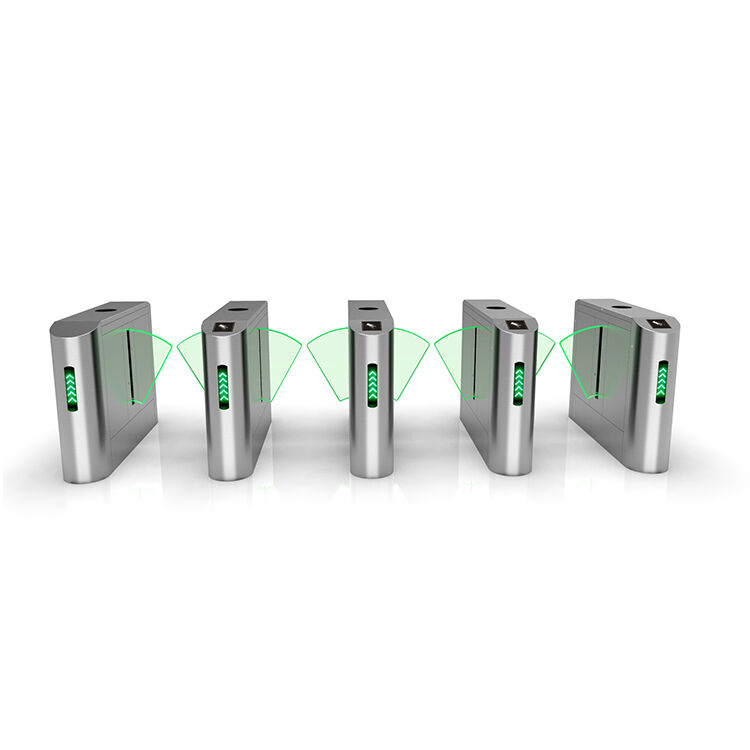

Access Control Glass Flap Turnstile Gate For Business Center CBD Office Buliding
  • Access Control Glass Flap Turnstile Gate For Business Center CBD Office Buliding
  • Access Control Glass Flap Turnstile Gate For Business Center CBD Office Buliding
  • Access Control Glass Flap Turnstile Gate For Business Center CBD Office Buliding
Access Control Glass Flap Turnstile Gate For Business Center CBD Office Buliding

Access Control Glass Flap Turnstile Gate For Business Center CBD Office Buliding

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB02
Product Details
Motor Voltage:
24V
Motor Type:
BLDC Motor
Operating Time:
0.2 Second
Open Direction:
Single And Double
Barrier Color:
Clear/red/blue Etc
Infrared Sensor:
Included
Highlight:

600mm width flap turnstile gate

,

Glass flap turnstile gate

,

BLDC motor access control turnstile gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description
Access Control Glass Flap Turnstile Gate
Professional access control solution for business centers, CBD offices, and commercial buildings
Product Overview
The flap barrier turnstile is an advanced access management system designed for high-frequency pedestrian traffic areas. This equipment combines mechanical engineering, electronic components, and microprocessor control to deliver secure, efficient access control. It seamlessly integrates with various reading and writing devices to provide comprehensive access management solutions.
Access Control Glass Flap Turnstile Gate For Business Center CBD Office Buliding 0
Key Features & Functions
  • Compatible with smart card readers and access controllers for comprehensive access control functionality
  • Expandable to automatic identification systems for access control, pedestrian flow management, attendance tracking, and fare collection
  • Standard electrical interfaces for easy integration with other reading/writing devices and remote computer supervision
  • Multiple infrared photocells for unauthorized entry detection, tailgating prevention, and anti-strike protection
  • LED direction indicators showing operational status with green arrow for entry and red cross for locked passage
  • Dual input signal capability from access controllers, buttons, or other equipment
  • Audible sound prompts and information display functions
  • Automatic flap opening during power interruption with normal close mode restoration after power recovery
  • Counting function for continuous passage of up to 16 pedestrians with corresponding card reads
  • Reverse passing alarm system for unauthorized direction entry attempts
  • Advanced face recognition terminal with 200W pixel camera for detection, tracking, and identification
Technical Specifications
Product Name Flap Barrier Gate
Model SN-FB Series
Material Stainless Steel 304 (Cover: 1.5mm, Cabinet: 1.2mm)
Size 1200*300*980mm
Passage Width 600mm
Passage Direction Unidirectional/Bi-directional
Pass Rate 30-40 persons/minute
Infrared Sensor 3 pairs minimum
Power Input AC100-240V, 50/60Hz; DC24V
Working Voltage 24V
Working Humidity ≤95%
Working Temperature -30℃ to +70℃
Working Environment Indoor/Outdoor
Communication Interface RS232, RS485, TCP/IP
Access Control Systems ID/IC Card, Fingerprint, Face Recognition, Barcode/QR Code, Phone App, ESD System, Visitor System
Application Areas
  • Banks and insurance companies
  • Government and institutional establishments
  • Office buildings, registered offices, and administrative sites
  • Schools, universities, and colleges
  • Sensitive facilities: nuclear, pharmaceutical, computer centers
  • Airports and transportation hubs

Tags:

automatic flap barrier,

waist high turnstile,

flap turnstile
