Vertical Tripod Half Height Turnstile Bar Code Reader Card Reader Ticket Solution
  • Vertical Tripod Half Height Turnstile Bar Code Reader Card Reader Ticket Solution
  • Vertical Tripod Half Height Turnstile Bar Code Reader Card Reader Ticket Solution

Vertical Tripod Half Height Turnstile Bar Code Reader Card Reader Ticket Solution

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Control Voltage:
DC24V
Gate Open Signal:
Dry Contact/ Relay
Material:
SS304/SS316/MS With Painting
Working Environment:
Indoor/ Outdoor
Material Thickness:
1.2mm
Package:
Carton/plywood Box
Highlight:

Gymnasium Half Height Turnstile

,

Pedestrian Automatic Half Height Turnstile

,

vertical tripod turnstile SS304

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000pcs per month
Product Description

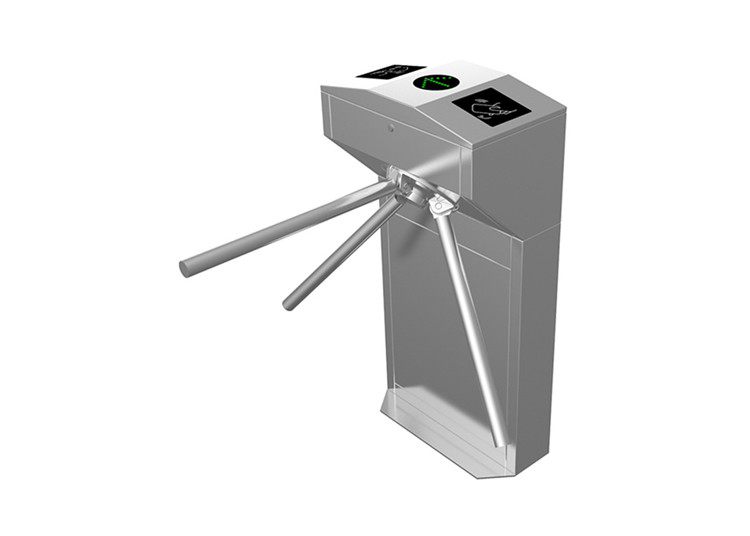

Vertical Tripod Half Height Turnstile with Bar Code Reader & Card Reader
This half-height tripod turnstile integrates mechanical, electrical, and microcontroller technologies with multiple identification systems including IC, ID, barcode, and fingerprint readers. Designed for intelligent flow control management, it provides orderly pedestrian passage while preventing unauthorized access. Features include durable, rust-resistant construction, smooth operation with low noise, and automatic arm release during emergencies.
Ideal for bus stations, ports, subways, factories, residential areas, hotels, and corporate facilities requiring smart access control solutions.
Vertical Tripod Half Height Turnstile Bar Code Reader Card Reader Ticket Solution 0
Technical Specifications
Parameter Specification
Power Voltage AC220 ±10%V/50 ±10%HZ
Communication Mode 232/485 TCP/TP
Movement Hydraulic movement
Structure 1.2mm thick 304 stainless steel
Relative Humidity None-condensation
Input Signal 12v DC level or Dry contact signal
Working Current ≤2000mA
Length of the Bar 510mm
Open Angle 120°
Pass Speed ≤40 persons/minute
Open Direction Single and Double (optional)
Work Environment Outdoor and indoor
Temperature -20℃ to 60℃
Width of Passage ≤550mm
Key Features & Functions
  • Compact, cost-effective entrance security solution
  • Fully rainproofed 304 stainless steel housing - rust-resistant, solid, and durable
  • Suitable for both indoor and outdoor installation (IP54 rated)
  • International standard relay output for easy integration with third-party access control systems
  • Semi-automatic operation - push arm slightly when access is granted
  • Precision mold mechanism for smooth, quiet operation with low power consumption
  • Durable, corrosion-resistant, heavy-duty construction for extended service life
  • Single-person passage design for enhanced security
  • Supports both single-directional and bi-directional operation
  • LED directional indicator light on housing top
  • Automatic clock function with default 5-second timeout
  • Power-off arm drop for free passage compliance with fire safety requirements
Why Choose Our Turnstile Solutions
  • 20+ years of OEM/ODM experience in access control systems
  • Prompt delivery with standard model inventory
  • Custom OEM/ODM orders to meet specific client requirements
  • Sample orders accepted for testing before bulk purchases
  • Comprehensive online technical support
  • Multiple transportation options including sea, air, and express shipping
  • Factory visits welcome on working days
