300KG DC24V Gear Chain Driven Optional battery backup residential sliding gate opener
  • 300KG DC24V Gear Chain Driven Optional battery backup residential sliding gate opener
  • 300KG DC24V Gear Chain Driven Optional battery backup residential sliding gate opener
  • 300KG DC24V Gear Chain Driven Optional battery backup residential sliding gate opener
300KG DC24V Gear Chain Driven Optional battery backup residential sliding gate opener

300KG DC24V Gear Chain Driven Optional battery backup residential sliding gate opener

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number PY300DCL
Product Details
Power Supply Range:
AC220V,50Hz; AC110V,60Hz; DC24V
Max Loading Weight:
300 Kg
Motor Power:
DC24V,100W
Gate Moving Speed:
13 M/min
Limit Switch:
Electronic Limit Switch
Recording Of Up Remotes:
25
Highlight:

Waterproof Electric Sliding Gate Operator

,

Electric Sliding Gate Operator 1800kg

,

350W Automatic Sliding Gate Operator

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
10,000 pcs per month
Product Description
300KG DC24V Gear Chain Driven Residential Sliding Gate Opener with Battery Backup
The PY300DCL Sliding Gate Automation Kit is engineered for reliable operation of residential sliding gates weighing up to 300kg with lengths up to 12 meters. The standard configuration includes a 6-meter chain; for gates exceeding 5.5 meters in length, chain extension is recommended.
Main Features
  • Durable brushed aluminum housing with modern design
  • DC24V motor with integrated control unit
  • Built-in backup battery system
  • Compatible with solar power systems
  • Keypad and single-button interface options
  • Alarm lamp, photo beam, and safety beam interfaces
  • Programmable auto-close functionality
  • Smooth soft start and gradual stop operation
  • Emergency manual key release mechanism
Technical Specifications
Unit Model PY300DCL
Power Supply AC220V,50Hz; AC110V,60Hz
Maximum Gate Weight 300KG
Motor Power DC24V, 100W
Gate Moving Speed 13 m/min
Limit Switch Electronic limit switch
Remote Control Capacity 25 remotes
Decoding / Frequency Rolling code / 433.92MHz
Work Duty S2 20min
Noise Level ≤60dB
Operating Temperature -20°C to 70°C
Backup Battery 12V 4.5Ah (2 pieces)
Package Weight 19 KG
Package Dimensions 30×27×50cm

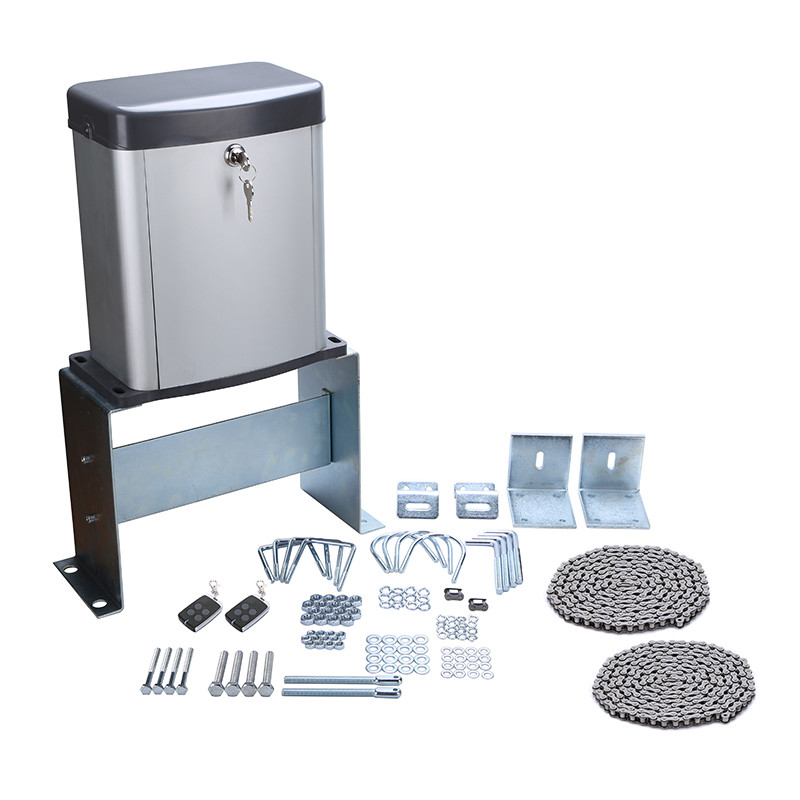

Standard Package Contents
  • Gate motor unit
  • Control board and enclosure
  • 2 remote controls
  • Manual release key
  • Comprehensive user manual
  • Installation bolts and nuts
  • 6-meter chain
300KG DC24V Gear Chain Driven Optional battery backup residential sliding gate opener 0
