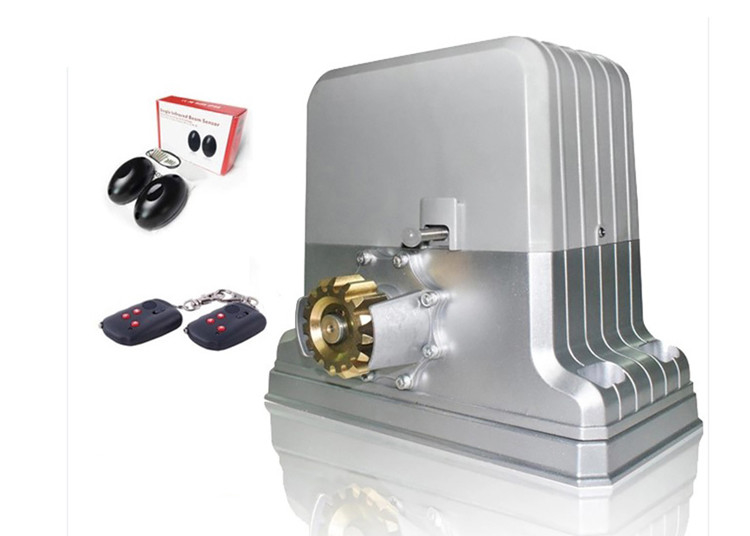

Spring Limit Switch Sliding Gate Operator 1800KG AC220V Power Supply
  • Spring Limit Switch Sliding Gate Operator 1800KG AC220V Power Supply
  • Spring Limit Switch Sliding Gate Operator 1800KG AC220V Power Supply
  • Spring Limit Switch Sliding Gate Operator 1800KG AC220V Power Supply
Spring Limit Switch Sliding Gate Operator 1800KG AC220V Power Supply

Spring Limit Switch Sliding Gate Operator 1800KG AC220V Power Supply

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-KMP202
Product Details
Package:
Carton Box
Weight Capacity:
1800 Kg
Remote Control:
418Hz
Power Supply:
AC100V~120V， AC200V~240V
Shell:
Waterproof
Highlight:

Waterproof Sliding Gate Operator

,

Sliding Gate Operator 1800KG

,

AC220V automatic sliding gate opener

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
2,000 pcs per month
Product Description
Spring Limit Switch Sliding Gate Operator 1800KG AC220V
This advanced sliding gate operator features a new design with integrated control system, offering low noise operation, lightweight construction, powerful starting torque, and reliable performance. The motor maintains functionality during brief voltage drops, while the control board provides overload protection. In case of power failure, the clutch system allows manual operation using the provided key. Optional infrared photocells enable automatic obstacle detection and safety reversal.
Spring Limit Switch Sliding Gate Operator 1800KG AC220V Power Supply 0
Motor Specifications
Model MP201 KMP202
Voltage 220V±10% | 110V±10% 220V±10% | 110V±10%
Frequency 50HZ | 60HZ 50HZ | 60HZ
Current 2A | 4.5A 2.7A | 5.8A
Motor Voltage AC220V / 110V
Capacitor 18μf | 60μf 20μf | 60μf+14μf
Output Power 250W 350W
Absorbed Power 440W | 495W 594W | 638W
Torque 22.5nm 35nm
Mode Number M=4
Motor Speed 1350rpm | 1620rpm 1350rpm | 1620rpm
Reduction Ratio 23:1
Gear Speed 58.5rpm | 70.2rpm 58.5rpm | 70.2rpm
Travel Speed 11m/min | 13.2m/min 11m/min | 13.2m/min
Working Temperature -40°C∼+55°C
Overload Protection Temperature 130°C
Motor Construction Die casting aluminum alloy
Manual Release Yes
Net Weight (approx) 9.13kg | 9.18kg 10.19kg | 10.25kg
Max Gate Weight 1000kg 1800kg
Electronic Specifications
Feature KMP201 KMP202
Soft Start YES YES
Stop on Obstacle (sensitivity adjustable) YES YES
Auto Warming-up (at freezing temperature) YES YES
Remote Control 418MHZ (50m, approx)
Wire Control Available
Auto Closing YES YES
Vehicle Loop Detector Socket YES YES
Photocell Socket YES YES
Alarm Light Socket YES YES
Key Features
  • Integrated mechanical and electrical systems with all functions on one controller
  • Radio controller or wired control for open, close, and stop functions
  • Magnetic limit switch for precise door positioning
  • Accurate limit braking system
  • Electronic soft-start for smooth operation
  • Dialing switches to adjust motor rotation in both directions
  • Self-locking function for open and close limits
  • Intelligent obstacle detection with automatic reversal and retry
  • Movement indicator light for operational status
  • Optional line control or remote control capabilities
Package Contents
Spring Limit Switch Sliding Gate Operator 1800KG AC220V Power Supply 1
Item Quantity Unit Status
Sliding gate operator 1 set Necessary
Remote control 2 pcs Necessary
Internal hexangular bolt 4 pcs M8*40
Internal hexangular bolt 4 pcs M6*16
Left limit iron 1 pcs Necessary
Right limit iron 1 pcs Necessary
Base board 1 pcs Necessary
Release key 2 pcs Necessary
Manual 1 pcs Necessary
Infrared photocell 1 set Optional
Radio emitter 1 set Optional
