Security Access Control Full Height Turnstile Gate Hot Dip Galvanizing With Canopy
  • Security Access Control Full Height Turnstile Gate Hot Dip Galvanizing With Canopy
  • Security Access Control Full Height Turnstile Gate Hot Dip Galvanizing With Canopy
  • Security Access Control Full Height Turnstile Gate Hot Dip Galvanizing With Canopy
Security Access Control Full Height Turnstile Gate Hot Dip Galvanizing With Canopy

Security Access Control Full Height Turnstile Gate Hot Dip Galvanizing With Canopy

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FH01
Product Details
Type:
Semi-automatic/Full Automatic Optional
Control Voltage:
DC24V
Housing Material:
304/316 Stainless Steel/mild Steel
Passage:
About 600mm
Control Device:
Solenoid
Package:
Plywood Box
Package Size:
Small
Shipment:
Sea, Air
Highlight:

Galvanizing Full Height Turnstile Gate

,

Finger Print Full Height Turnstile Gate

,

Canopy Security Access Control Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,00pcs per month
Product Description

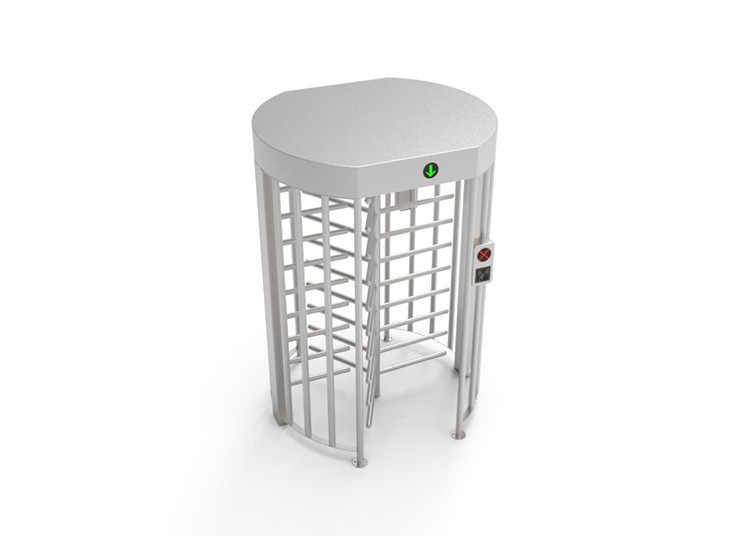

Security Access Control Full Height Turnstile Gate Hot Dip Galvanizing With Canopy
Product Overview
This security access control full height turnstile gate features hot dip galvanizing and fingerprint recognition capabilities with an optional canopy. The frame is constructed from stainless steel using laser cutting and CNC bending for superior aesthetics and durability. The system incorporates standard quick-connect electronic interfaces for seamless integration with various reading devices including RFID card readers, fingerprint scanners, and face recognition systems.
Security Access Control Full Height Turnstile Gate Hot Dip Galvanizing With Canopy 0
Basic Parameters
Cabinet material 38 round tube, 1.5mm thick SS304
Channel width ≤ 600mm
Ambient temperature -20°C to 60°C
Working environment Indoor and outdoor (outdoor canopy)
Technical Parameters
Input voltage 100V~240V
Driving voltage 24V
Equipment power 40W
Response time 0.2S
Passing speed 30-35 people/minute
Communication interface RS485 (optional)
Communication distance Less than 1200m
Open brake signal input Dry contact
Switching door time Less than 1S
Key Features & Functions
  • Rainproof housing with anti-corrosion coating and 304/316 stainless steel construction
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic rotation control: rotates to next position if arm moves beyond half-way, returns to current position if less than half-way
  • Built-in adjustable tensioner for controlled rotation force, suitable for all users including elderly and children
  • Configurable for bi-directional or uni-directional operation with tamper-resistant locking system
  • Innovative mounting surface design for simple and convenient installation
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint systems (access controller required)
  • Automatic reset function cancels user authority if passage isn't completed within preset time (default 5 seconds)
  • Equipped with automatic regulated hydraulic buffer device for silent, impact-free operation
  • Emergency and power failure protection mode allows free rotation during power outages or fire alarms
