Swipe Card Reader Full Height Turnstile High Security 38mm Round Tube

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00pcs per month
Product Details
Rotor Section 3 Sections Or 4 Sections Arm Diameter 38mm
Working Temperature -20°C~60°C Housing Material 304/316 Stainless Steel/mild Steel
Passage About 600mm Control Device Solenoid
High Light

Card Reader Full Height Turnstile

,

38mm tube Full Height Turnstile

,

Solenoid Control High Security Turnstile

Leave a Message
Product Description

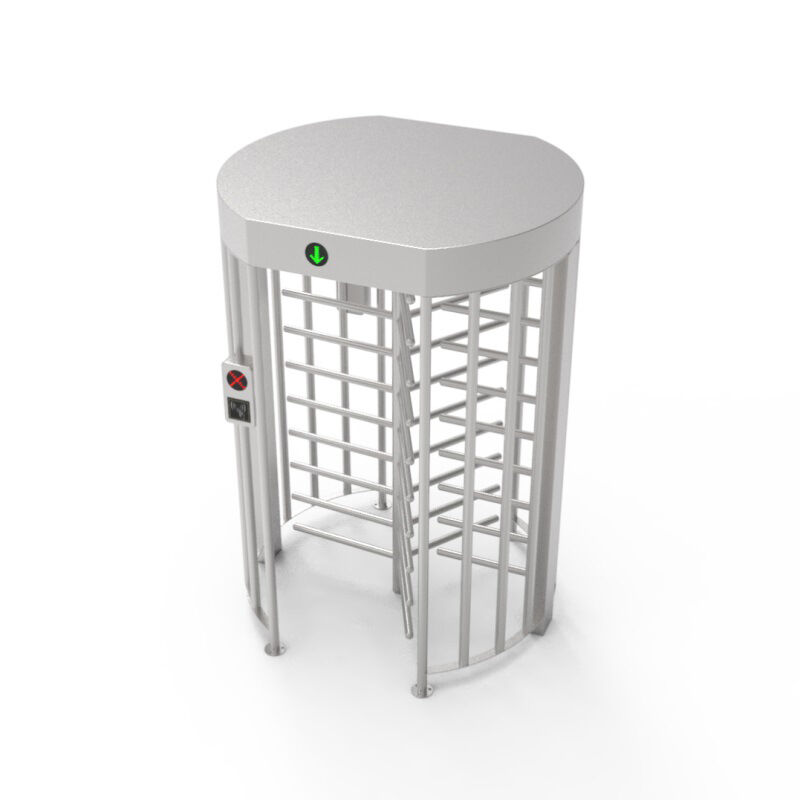

Swipe Card Reader High Security Entrance Canopy Full Height Turnstile



Functional Overview

A high-reliability, high-rise revolving door for outdoor use. The waterproof design of the whole structure and the sectional installation design make the installation and maintenance of this product very convenient. A standard electromechanical device is configured to prevent double pass at the same time. In addition, the hydraulic shock absorber ensures smooth and quiet operation.


The whole product frame adopts stainless steel laser cutting, CNC bending forming, beautiful appearance, and the system adopts standard quick plugging and unplugging electronic interface, which can integrate various reading and writing devices, etc., and can easily read ID card, IC card, etc.



Swipe Card Reader Full Height Turnstile High Security 38mm Round Tube 0

Technician specifications



Model

SN-FHT01

Size
1500*1343*2300mm
Material
1.2mm 304 stainless steel (oter material optional)
Passage Width
About 600mm (customizable)
Passage direction
Single directional/Bi-directional
Pass rate
30-35 persons/minute
Operating time
1 seconds
Power input
AC220V/110V, 50/60HZ
Working voltage
24V
Working humidity
30%~95%
Working temperature
-40℃~+70℃
Working environment
Indoor/outdoor
Communication interface
Dry contact
Service life
>5 million cycles



Main function and features



1. Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.



2. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.



3. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.



4. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.



5. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.



6. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.



7. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)



8. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.



9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
