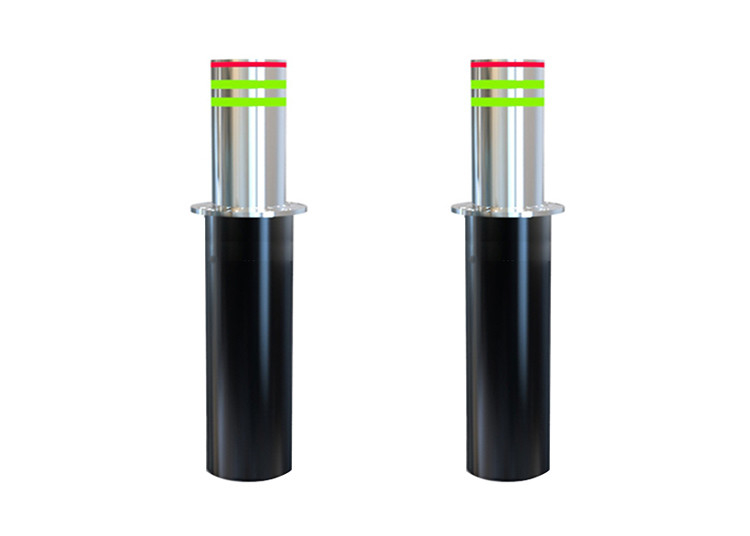

Hydraulic Automatic Rising Bollards Retractable Steel Brushed Finishing

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-RB01
Minimum Order Quantity Sample order accepted
Price US$600~US$999
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, credit card/Cash/wechat
Supply Ability 1000 pcs a month
Product Details
Material 304 Stainless Steel Normal Work Life Over 5 Years
Surface Treatment Brushed Finishing Power Supply 220V/110V
Control Voltage DC24V Rising Height 600mm~1000mm
High Light

Hydraulic Automatic Rising Bollards

,

DC24V Automatic Rising Bollards

,

retractable steel automatic road bollard

Leave a Message
Product Description

Hydraulic retractable steel rising parking automatic road traffic bollard system



Product description



The electro-hydraulic rising bollard is an automatic lifting road pile with a motor and a hydraulic cylinder as a power unit. The rising bollard integrates the motor and the hydraulic cylinder to form a hydraulic driving system, and drives the hydraulic cylinder to rise and fall by the motor running to control the lifting and lowering of the bollard. it is usually installed at vehicle entrance/exit. It rises to block the vehicle and falls the ground level to authorize free passing.



Hydraulic Automatic Rising Bollards Retractable Steel Brushed Finishing 0



Product application



The rising bollards are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies,military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicletraffic is restricted.



Product specifications



Color
Silver
Raising/lowering speed
3-6s(adjustable)
Diameter
219mm/273mm/324mm
raised height
600-1000mm(optional)
Material
304/316 stainless steel
Control mode
remote control(<100m)
system control
hydraulic and electric control
Working temperature
-30℃~+75℃
Embedded cylinder depth
1100mm
Lamp belt
LED lamp(Acrylic light circle)
Power Supply
220V/110V
thickness
6mm,8mm,10mm,15mm,20mm
weight
100-150kg
anti-collision levels
K4,K8,K12
service life
more than 5 million times
Drainage mode
Natural drainage+External drainage system



SINOMATIC road bollard advantages



1. Different thickness of steel is available (default 6 mm)


2. The different color is available


3. Customized size is available


4. Steady and safe due to the OMRON PLC control system


5. Speedy rising time and durable quality with hydraulic pressure

6. Housing with durable and stainless Galvanization


7. Optimization of the frame structure, high anti-impact capability, high loading capability


8. High security and anti-collision ability


9. With a reflective band and a low energy consumption LED light at night



Automatic bollard Feature



High security and anti-collision ability

Pneumatic air pump in control cabinet could procide large power safely for a long time.

Electronic control, automatic rise/fall

High system independence



Automatic bollard Reflective band

Various color options for Glossee aveolate reflective band; only need weak light to be clearly visible at night.



Automatic bollard Materials Available

304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.Automatic bollard Flange

Anti-skid flange with unique some pattern design. Compatible with various road surface styles. Built-in PA orientation.



Automatic bollard​ Top cap

Its simple integration design is compatible with all kinds of architectural style. Excellent workmanship is amenable to any close attack.



About our company



The company is located in Shenzhen, China.Our manufacturing plant with approx. 5.000 square meter space, is equipped with modern production lines, own powder coating facility, developing department, processing center.



Products are widely used in transportation road, schools, government agencies, airports, prisons, military, customs, border control, parks,smart city and other fields.



Our aim is to use our knowledge, experience, manufacturing and design capacity, to be able to offer more flexibility than other manufacturers, providing custom made solutions, within short lead time and with value for money. Very resistant and durable products for reasonable pricing, variety of customization and system integration options, are the focuses for our business.



With excellent cost performance in overseas market, our products are exported to Europe, US,East Asia, Russia, the Middle East Islamic war countries. Advanced technology is accompanied by highest international quality standard. Comprehensive design, outstanding high technological standards together with superb corrosion protection, we gain trust of customers all over the world. At the same we keep competitive price policy. Fast and dynamic growth of our company during last years and now we have 100 skilled employees.
