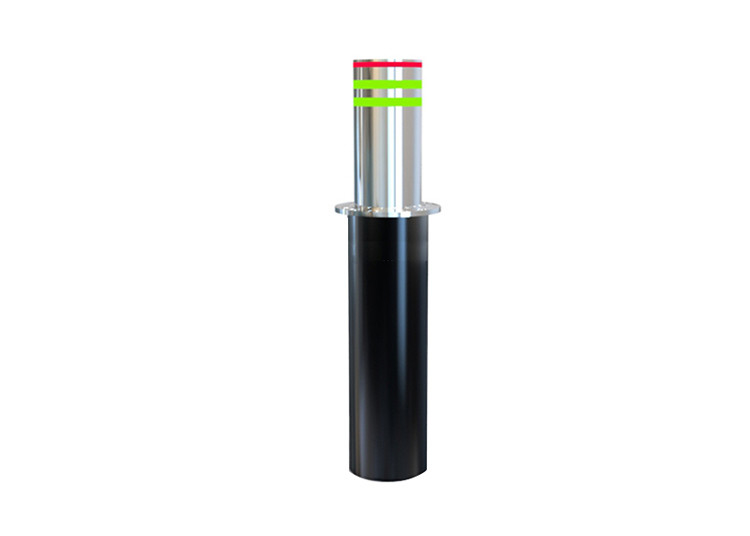

Automatic Hydraulic Rising Bollard Stainless Steel 304 Grade Waterproof Anti Collision
  • Automatic Hydraulic Rising Bollard Stainless Steel 304 Grade Waterproof Anti Collision
  • Automatic Hydraulic Rising Bollard Stainless Steel 304 Grade Waterproof Anti Collision
  • Automatic Hydraulic Rising Bollard Stainless Steel 304 Grade Waterproof Anti Collision

Automatic Hydraulic Rising Bollard Stainless Steel 304 Grade Waterproof Anti Collision

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-RB01
Product Details
Protection Level:
IP 68
Control Mode:
Button/Remote Control
Bollard Material:
SS304/SS316 Optional
Surface Treatment:
Brushed Finishing
Power Supply:
220V/110V
Control Voltage:
DC24V
High Light:

Anti Collision hydraulic rising bollard

,

SS304 hydraulic rising bollard

,

Hydraulic Waterproof automatic lifting road pile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$600~US$999
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, credit card/Cash/wechat
Supply Ability
1000 pcs a month
Product Description

Stainless steel 304 Grade WaterProof Anti-Collision Automatic hydraulic Road Blocker



Product description



The electro-hydraulic rising bollard is an automatic lifting road pile with a motor and a hydraulic cylinder as a power unit. The rising bollard integrates the motor and the hydraulic cylinder to form a hydraulic driving system, and drives the hydraulic cylinder to rise and fall by the motor running to control the lifting and lowering of the bollard. Through the restrictions on passing vehicles, the traffic order and the safety of major facilities and places are effectively guaranteed. With K12 Grade Anti-Collision: Can Hold a 80 Tons Truck collision with a 120 km/h speed.



Automatic Hydraulic Rising Bollard Stainless Steel 304 Grade Waterproof Anti Collision 0



Product specifications



  S/N
Specifications
Material
304 stainless steel/ 316 stainless steel
Control mode
integrated hydraulic and electro
Power supply
AC220V, 110V/(control voltage 24V)
Bollard diameter
168mm, 219mm(default),  273mm, 324mm etc
Rising height
600mm(default), 800mm, 1000mm
  Wall thickness   6mm(default), 8mm, 10mm, 15mm, 20mm
Waterproof degree
IP68
Surface treatment
brushed finishing
Operating Temperature
-40℃ to +70℃
Control model
push button/remote control standard, loop detector /card reader optional
Running speed
2-4S ( ascending )
Safety signs
reflective tape/LED warning light zipper/loop detector system traffic lights
Cylinder
stainless steel/plastic coating for steel tube Traffic Road Bollard,automatic bollards,cast iron road stake bollards
Optional Function
Traffic Lamp/Solar light/Hand Pump/Safety Photocell, Reflective tape/sticker, buzzer
Optional Color
Brushed titanium gold, champagne, rose gold, Brown, red, purple,sapphire blue, gold, dark blue paint, chocolate,stainless steel,Chinese red paint



Product application



The rising bollards are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies,military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicletraffic is restricted.



Automatic Hydraulic Rising Bollard Stainless Steel 304 Grade Waterproof Anti Collision 1



SINOMATIC road bollard advantages



1. Different thickness of steel is available (default 6 mm)


2. The different color is available


3. Customized size is available


4. Steady and safe due to the OMRON PLC control system


5. Speedy rising time and durable quality with hydraulic pressure

6. Housing with durable and stainless Galvanization


7. Optimization of the frame structure, high anti-impact capability, high loading capability


8. High security and anti-collision ability


9. With a reflective band and a low energy consumption LED light at night



Automatic bollard Feature



High security and anti-collision ability

Pneumatic air pump in control cabinet could procide large power safely for a long time.

Electronic control, automatic rise/fall

High system independence



Automatic bollard Reflective band

Various color options for Glossee aveolate reflective band; only need weak light to be clearly visible at night.



Automatic bollard Materials Available

304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.Automatic bollard Flange

Anti-skid flange with unique some pattern design. Compatible with various road surface styles. Built-in PA orientation.



Automatic bollard​ Top cap

Its simple integration design is compatible with all kinds of architectural style. Excellent workmanship is amenable to any close attack.
