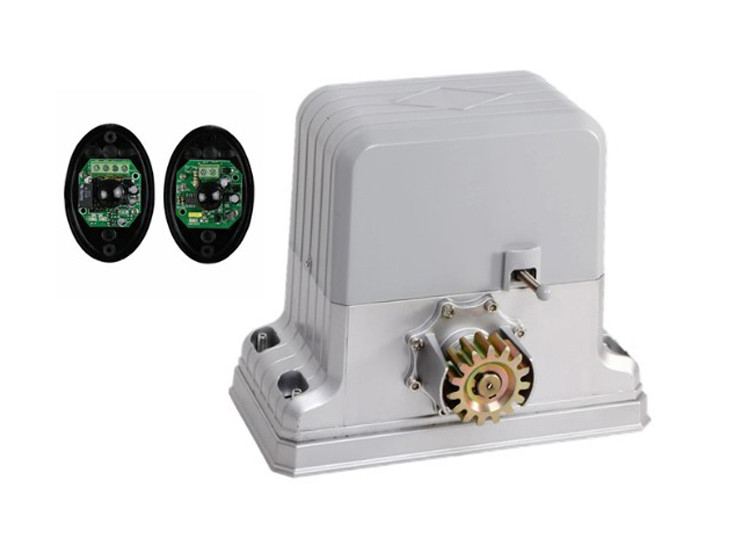

AC220V Automatic Door Opener 50 Meter Remote Control Wireless Automatic Gate Openers
  • AC220V Automatic Door Opener 50 Meter Remote Control Wireless Automatic Gate Openers
  • AC220V Automatic Door Opener 50 Meter Remote Control Wireless Automatic Gate Openers
  • AC220V Automatic Door Opener 50 Meter Remote Control Wireless Automatic Gate Openers
AC220V Automatic Door Opener 50 Meter Remote Control Wireless Automatic Gate Openers

AC220V Automatic Door Opener 50 Meter Remote Control Wireless Automatic Gate Openers

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-KMP202
Product Details
Net Weight:
8.5kg
Manual Release:
Yes
Gross Weight:
10.2 Kg
Weight Capacity:
1800 Kg
Warranty:
At Least 12 Months
Remote Control:
Default
Highlight:

Wireless Automatic Door Opener

,

AC220V Automatic Door Opener

,

50M wireless automatic gate openers

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
2,000 pcs per month
Product Description
AC220V Automatic Door Opener with 50 Meter Wireless Remote Control
Electric wireless remote control automatic gate opener with 50-meter range and maximum loading capacity of 1800kg.
This conventional sliding gate operator features a brand-new design with innovative clutch structure, fashionable exterior design, and advanced control techniques that enhance user experience. The integrated electromechanical design and streamlined appearance provide a sophisticated, elegant solution for automated gate operations.
AC220V Automatic Gate Opener with wireless remote control
Motor Specifications
Model MP201 KMP202
Voltage 220V±10% | 110V±10% 220V±10% | 110V±10%
Frequency 50HZ | 60HZ 50HZ | 60HZ
Current 2A | 4.5A 2.7A | 5.8A
Motor Voltage AC220V / 110V
Capacitor 18μf | 60μf 20μf | 60μf+14μf
Output Power 250W 350W
Absorbed Power 440W | 495W 594W | 638W
Torque 22.5nm 35nm
Mode Number M=4
Motor Speed 1350rpm | 1620rpm 1350rpm | 1620rpm
Reduction Ratio 23:1
Gear Speed 58.5rpm | 70.2rpm 58.5rpm | 70.2rpm
Travel Speed 11m/min | 13.2m/min 11m/min | 13.2m/min
Working Temperature -40°C∼+55°C
Overload Protection Temperature 130°C
Motor Construction Die casting aluminum alloy
Manual Release Yes
Product Weight (approx) 9.13kg | 9.18kg 10.19kg | 10.25kg
Maximum Gate Weight 1000kg 1800kg
Electronic Specifications
Model KMP201 KMP202
Soft Start YES YES
Stop on Obstacle (sensitivity adjustable) YES YES
Auto Warming-up (at freezing temperature) YES YES
Remote Control 418MHZ (50m, approx)
Wire Control Available
Auto Closing YES
Vehicle Loop Detector Socket YES
Photocell Socket YES
Alarm Light Socket YES
Key Features & Functions
  • Integrated mechanical and electrical design with all functions on one controller
  • Radio controller or wired control for open, close, and stop functions
  • Magnetic limit switch for precise door positioning
  • Accurate limit braking system
  • Electronic soft-start for smooth operation
  • Dialing switches to adjust motor rotation in both directions
  • Open and close limits with self-locking function
  • Intelligent obstacle detection - reverses to open when obstacle detected during closing, then attempts to close automatically after 10 seconds
  • Movement indicator light activates when door is in motion
  • Optional line control or remote control operation
Technical Specifications
  • Power supply range: AC220V/110V±10% 50/60Hz
  • Net weight: 8.5kg
  • Maximum loading weight: 1800kg
  • Working temperature of motor: -25 to +55 Celsius degree
  • Working humidity: ≤85%
  • Rated power: 200W
  • Output gear module: M=4
  • Output gear number: Z=16
  • Open/close speed: v=12m/min
  • Maximum pull: 1100N
  • Packaging: One set per carton
