Remote Controller Sliding Gate Opener 2000 Kg Capacity Aluminum Alloy Die Casting Cabinet
  • Remote Controller Sliding Gate Opener 2000 Kg Capacity Aluminum Alloy Die Casting Cabinet
  • Remote Controller Sliding Gate Opener 2000 Kg Capacity Aluminum Alloy Die Casting Cabinet
  • Remote Controller Sliding Gate Opener 2000 Kg Capacity Aluminum Alloy Die Casting Cabinet
Remote Controller Sliding Gate Opener 2000 Kg Capacity Aluminum Alloy Die Casting Cabinet

Remote Controller Sliding Gate Opener 2000 Kg Capacity Aluminum Alloy Die Casting Cabinet

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-KMP202
Product Details
Power Supply:
AC100V ~ 240V； 50/60Hz
Material Of Cabinet:
Die Casting Aluminum Alloy
Manual Release:
Yes
Color:
Silver
Weight Capacity:
2000 Kg
Warranty:
At Least 12 Months
Highlight:

remote control Sliding Gate Opener

,

Sliding Gate Opener 2000 Kg

,

Aluminum Alloy automatic sliding gate system

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
2,000 pcs per month
Product Description
Remote Controller Sliding Gate Opener - 2000 Kg Capacity

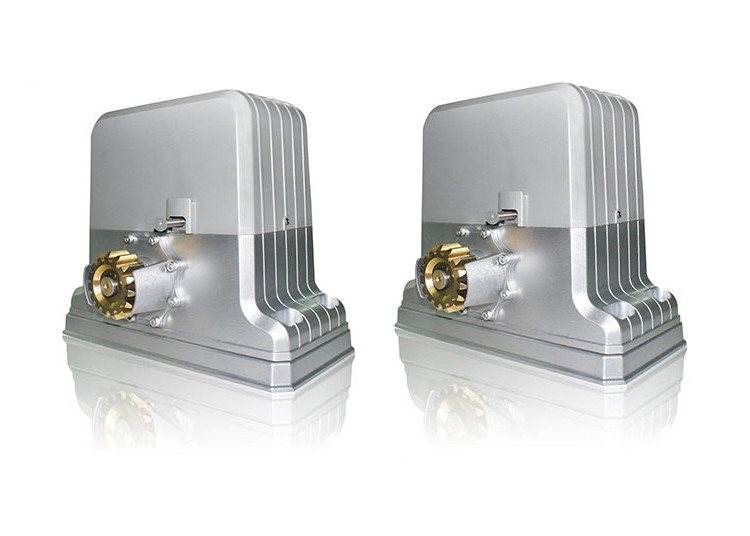

The KMP202 series automatic gate system is designed for both residential and industrial sliding gates. Featuring an aluminum alloy die-casting cabinet and powerful AC motor, this opener delivers robust performance with strong starting power and short-term overload capability. An emergency release key enables manual operation during power outages.
Advanced Features
  • Self-locking electromechanical gear motor
  • Safety Obstruction Reverse (requires infrared photocell installation)
  • Overheat & overload dual protection system
  • Emergency release key for power failure situations
  • Output compatibility for photocells, loop detectors, IC cards, alarm lamps, and remote controllers
Standard Kit Contents
  • 1 sliding gate motor
  • 1 control board
  • 2 transmitters
  • 2 limit irons
  • 1 English user manual
  • 1 set hardware accessories
Technical Specifications
Electrical & Performance Data
  • Power Supply: AC220V/110V±10% 50/60Hz
  • Rated Power: 200W
  • Maximum Loading Capacity: 2000kg
  • Maximum Pull Force: 1100N
  • Operating Speed: 12m/min
  • Motor Operating Temperature: -25°C to +55°C
  • Working Humidity: ≤85%
  • Net Weight: 8.5kg
  • Output Gear Module: M=4
  • Output Gear Number: Z=16
Product Dimensions
Remote Controller Sliding Gate Opener 2000 Kg Capacity Aluminum Alloy Die Casting Cabinet 0
Detailed Specifications
Specification Value
After-sale Service Online technical support
Application Villa
Design Style Modern
Place of Origin Guangdong, China
Model Number SN-KMP202
Voltage AC100V~240V
Frequency 50Hz/60Hz
Current 2.7A/5.8A
Remote Control Distance Max 50m
Working Temperature -40°C to +55°C
Relative Humidity 130°C
Motor Speed 1350 rpm / 1620 rpm
Gear Speed 58.5 rpm / 70.2 rpm
Travel Speed 11m/min / 13.2m/min
Maximum Gate Weight 1800kg
Functions & Features
  • Integrated mechanical and electrical design with all functions on one controller
  • Radio controller or wired control for open, close, and stop functions
  • Magnetic limit switch for precise door positioning
  • Accurate limit braking system
  • Electronic soft-start for smooth operation
  • Dialing switches for motor rotation adjustment in both directions
  • Self-locking function for open and close limits
  • Intelligent obstacle detection - reverses to open when obstacle detected during closing, then attempts to close automatically after 10 seconds
  • Movement indicator light activates during door operation
  • Optional line control or remote control configurations
Packing List
Name Quantity Unit Remark
Sliding gate operator 1 set Necessary
Remote control 2 pcs Necessary
Internal hexangular bolt 4 pcs M8*40
Internal hexangular bolt 4 pcs M6*16
Left limit iron 1 pcs Necessary
Right limit iron 1 pcs Necessary
Base board 1 pcs Necessary
Release key 2 pcs Necessary
Manual 1 pcs Necessary
Infrared photocell 1 set Optional
Radio emitter 1 set Optional
