A3 Stainless Steel Automatic Tyre Killer Flush Mounted Anti Impact
  • A3 Stainless Steel Automatic Tyre Killer Flush Mounted Anti Impact
  • A3 Stainless Steel Automatic Tyre Killer Flush Mounted Anti Impact
  • A3 Stainless Steel Automatic Tyre Killer Flush Mounted Anti Impact

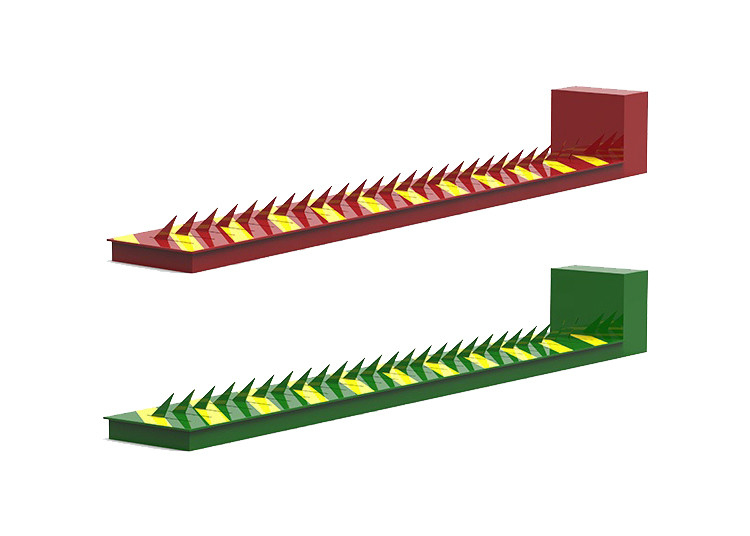

A3 Stainless Steel Automatic Tyre Killer Flush Mounted Anti Impact

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TKD01
Product Details
Power Supply:
AC100V~240V; DC24V
Color:
Yellow, Red, Green
Lenght:
3m ~6m
Width:
550mm
Spike Height:
12cm (can Be Customized )
Mounted Type:
Flush
Highlight:

A3 SS automatic tyre killer

,

Flush Mounted automatic tyre killer

,

anti impact tyre spike barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,00 pcs per month
Product Description
A3 Stainless Steel Automatic Tyre Killer Flush Mounted Anti Impact
This knife-type anti-impact vehicle tire destruction system employs a mechanical and electrical integrated control device. It features simple operation and safe, reliable performance, effectively preventing unauthorized vehicles from forced entry and avoiding security incidents. During interception, activating the ascent function causes steel blades to rapidly extend, puncturing and deflating tires. The dense blade configuration effectively prevents wheel passage, forcing vehicles to stop. When interception concludes, activating the descent function retracts the steel blades to ground level, returning the system to standby mode.
A3 Stainless Steel Automatic Tyre Killer Flush Mounted Anti Impact 0
Functions & Features
  • Firm and Anti-Collision: Constructed from 12mm thick Q235 carbon steel with robust load-bearing capacity and destructive power. Durable, solid structure.
  • IP68 Military Protection Standard: Maximum waterproof and dustproof rating for harsh environments.
  • Speedy and Low Noise: Hydraulically powered operation through both raising and lowering cycles. Fast 1-2 second operation with minimal noise.
  • Safe and Reliable: Available with single-phase or three-phase drive motors for high-frequency operation. Environmentally friendly with low power consumption and high reliability.
  • Flexible Control Method: Supports remote control and drive-by-wire operation. Remote controller operates up to 30 meters distance (depending on radio communication environment).
  • Backup Solution: Manual operation mode allows blade adjustment during power outages.
  • Convenient Maintenance: Easy inspection, testing, and problem resolution.
  • Functional and Manageable: Easily integrates safety accessories including photocells, inductive loop detectors, and beam sensors.
  • System Integration: Compatible with other access control elements including bollards, road barriers, turnstiles, fire alarm systems, and traffic lights for comprehensive security checkpoints.
  • Wide Range of Configurations: Custom designs available to meet specific requirements. Available in various thicknesses and lengths for any roadway or security level.
Technical Specifications
Product Tyre Killer
Material A3 steel with antirust paint
System Control Mode Electric control
Power Supply AC100V~240V
Max Pressure 80T
Waterproof Degree IP68
Operating Temperature -40ºC to +70ºC
Spike Height 120mm
Lifting Time 1s~2s
Panel Thickness 12mm
Spike Thickness 10mm
Optional Color Yellow, Black & Red, White (customized)
Case Reference
A3 Stainless Steel Automatic Tyre Killer Flush Mounted Anti Impact 1
Frequently Asked Questions
Can machines be used outdoor?
All our models are IP67 grade waterproof suitable for outdoor use.
Can this machine work with my control system?
Yes, as long as your control device can provide relay signal to our motherboard.
When will you make the delivery?
Production time is 3-5 days for samples. Bulk quantities range from 10 to 20 days.
Do you have experience exporting to my country?
Since 2002, we have exported turnstiles to more than 100 countries worldwide.
How can we be your agent in my country?
We can begin with a trial order and then sign a contract for selling our brands in your region.
Payment term?
30% by T/T deposit, 70% by T/T before delivery. Western Union and Money Gram also accepted.
