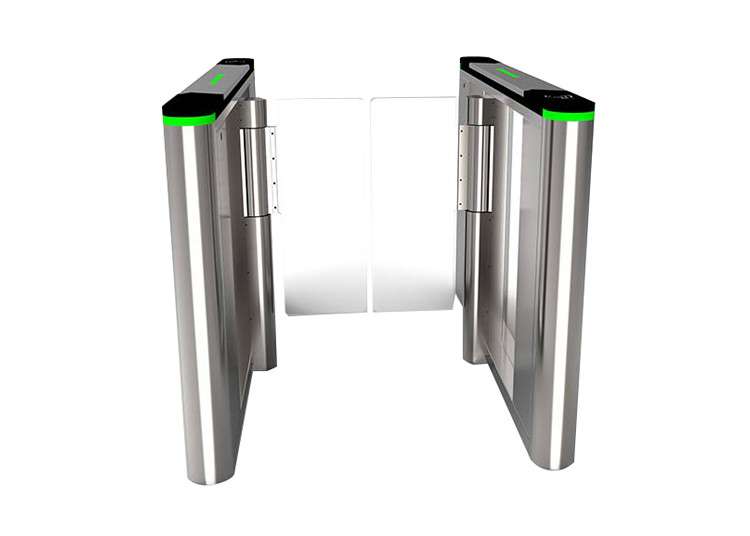

IP54 Swing Turnstile Gate For Airport / Customs Checkpoint Access Control
  • IP54 Swing Turnstile Gate For Airport / Customs Checkpoint Access Control
  • IP54 Swing Turnstile Gate For Airport / Customs Checkpoint Access Control
  • IP54 Swing Turnstile Gate For Airport / Customs Checkpoint Access Control
IP54 Swing Turnstile Gate For Airport / Customs Checkpoint Access Control

IP54 Swing Turnstile Gate For Airport / Customs Checkpoint Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HSG01
Product Details
Direction:
Single/bi-directional
Power Supply:
AC100V~240V; DC24V
IP Rate:
54
MCBF:
5 Million Times
Application:
Pedestrian Access Control
Material:
304 Stainless Steel, Acrylic
Highlight:

Airport Checkpoint Swing Turnstile Gate

,

Customs Checkpoint Swing Turnstile Gate

,

IP54 Access Control Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
500 pcs per month
Product Description
IP54 Swing Turnstile Gate for Airport & Customs Checkpoint Access Control
Fast Speed Airport Customs Checkpoint Access Control Swing Turnstile Gate
Product Application
Intelligent high-speed gate compatible with IC card, ID card, barcode card, and fingerprint recognition devices. Provides civilized, orderly access methods for staff while effectively managing personnel access. Widely applicable for stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring intelligent access management.
IP54 Swing Turnstile Gate For Airport / Customs Checkpoint Access Control 0
Technical Specifications
Product Name: Speed Gate
Model: SN-HSG01
Basic Parameters
Product Size: 1200×150×1060mm
Material: SS 304 stainless steel, Acrylic
Internal Structure: Steel frame structure
Pass Width: Double Door ≤ 900mm
Operating Temperature: -20℃~70℃ indoor or outdoor
Passage Direction: Single directional/Bi-directional
Technical Parameters
Power Input: AC100V~240V
Driving Voltage: DC24V
Driving Mode: Brushless DC motor
Reacting Time: 0.2S
Throughput Rate: 30 p/m
Instruction: Voice broadcast, Indicator LED
Communication: TCP/IP
External Equipment: IC card reader, ID card reader, code scanner, face recognition module, fingerprint recognition module (optional)
Product Features
  • DC brushless motor supports at least 5 million normal passages
  • Multiple infrared detection sensors with anti-tailing tracking control technology
  • Customizable voice broadcast content via integrated voice module
  • LED indicators for traffic direction and status display
  • Anti-shock function with automatic door wing locking during intrusion
  • Self-test, self-diagnosis, and automatic alarm functions including illegal intrusion, reverse intrusion, and trailing alarms
  • Automatic reset function cancels permissions after specified time
  • Flexible configuration of access status (controlled, free traffic, no traffic)
  • Memory mode enables continuous and fast traffic
  • Compatible with access control, consumption, ESD, and E-ticket systems
  • One-way or two-way control options
  • Remote control and administration capability
  • LED lamp indicator system
Frequently Asked Questions
  • What is your product's biggest advantage?
    DC Brushless Motor - no maintenance throughout life, no attrition, low noise, high intelligence.
  • What is your flap gates opening and closing time?
    ≤0.4s
  • What is the Swing barrier gate working environment?
    Suitable for both indoor and outdoor use (with shelter)
  • Can I customize it?
    Yes, we welcome OEM customization as we are the manufacturer.
  • What's your warranty?
    1 year time warranty.
