Solenoid Mechanism Waist Height Turnstile IP55 With QR Barcode Scanner
  • Solenoid Mechanism Waist Height Turnstile IP55 With QR Barcode Scanner
  • Solenoid Mechanism Waist Height Turnstile IP55 With QR Barcode Scanner

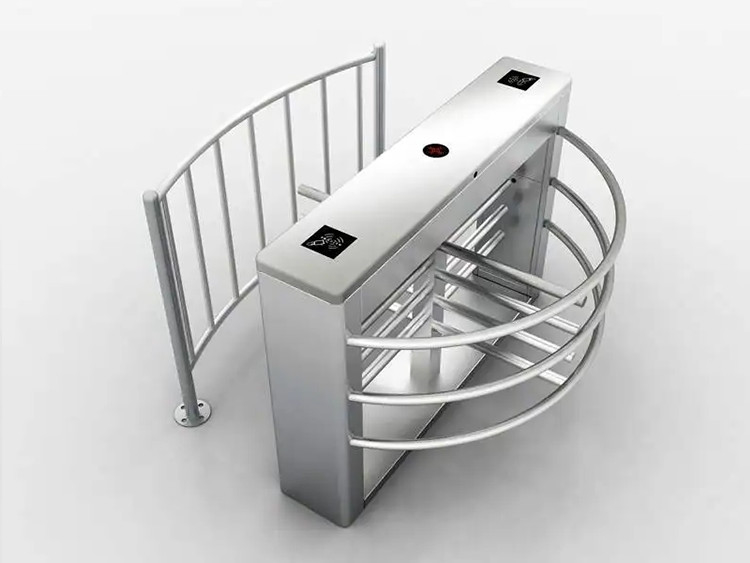

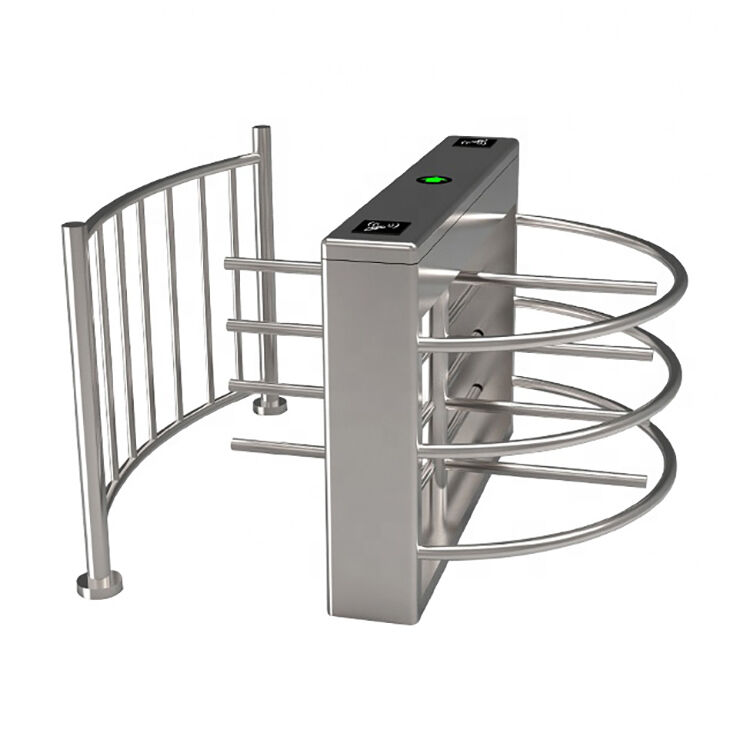

Solenoid Mechanism Waist Height Turnstile IP55 With QR Barcode Scanner

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HHT01
Product Details
Working Voltage:
DC24V
Gate Open Signal:
Dry Contact/ Relay
IP Rate:
IP55
Power Supply:
AC100V~240V; DC24V
Warranty:
12 Months.
Control Device:
RFID/fingerprint/face/push Button
High Light:

Solenoid Mechanism Waist Height Turnstile

,

IP55 Waist Height Turnstile

,

IP55 Half Height Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7working days after payment received for sample
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

Half Height Wide Passage Automatic Waist height Turnstile with QR Barcode Scanner





PRODUCT DESCRIPTION



1. Turnstile Appearance: Compact and beautiful half high turn style design, superior quality and brushed surface, Thickness=1.5 mm, finest work-craft.
2. Turnstile Mechanism: Semi-auto type or (Full auto type, DC brush-less motor drive, ARM + DFC control technology.)

3. Turnstile Operation: Solid performance silent and smooth operation, easy installing and less maintenance rate.



Solenoid Mechanism Waist Height Turnstile IP55 With QR Barcode Scanner 0



FUNCTION AND FEATURES



1. Anti-rust and Anti-corrosion.


2. Automatic resent function, if doesn’t pass through within the given time, the permission will be automatically cancelled and the arm will be restored.


3. Intelligent motherboard, turnstiles can be configured to allow access in a single direction or bi-directional.


4. Prevent trailing. After each pass, the arm is rotated 120 degrees to automatically lock.



5. Anti-collision, unable to push with external force when the arm is locked.



6. Compatible with various control methods, including remote control, push buttons, IC or ID Card Reading Devices, etc.



7. Anti-Panic function. After the gate is powered off, the arm is automatically dropped to facilitate evacuation.



Turnstile Integrated System:



1. Interface various kind of management system
2. Communicating and data interchange
3. Intergrate multi management software
4. We have strong R&D team to assist you development



Turnstile Access Control Device

Turnstile made of stainless steel has a modular design that allows to integrate different types of external equipment: QR-code scanners, biometric readers, card readers, button, IR, coin acceptors etc.





TECHNICAL SPECIFICATIONS



Item SN-HHT01
Housing Material 304 stainless steel
Standard Size L1200*W280*H1000(mm)
Drive mechanism Solenoid mechanism
Arm Length 450mm
Pass Direction single or bi-directional
Arm Driving Force 1kg
LED Light direction indication
Working mechanism 24V solenoid valve
Working Environment Indoor and Outdoor
Work temperature -20°C~60°C
Normal Running Life More than 5million
Input interface 12V pulse signal with pulse width >100ms, drive current >10mA
