Pedestrian Access Control Semi Automatic Revolving Full Height Turnstile
  • Pedestrian Access Control Semi Automatic Revolving Full Height Turnstile
  • Pedestrian Access Control Semi Automatic Revolving Full Height Turnstile
  • Pedestrian Access Control Semi Automatic Revolving Full Height Turnstile

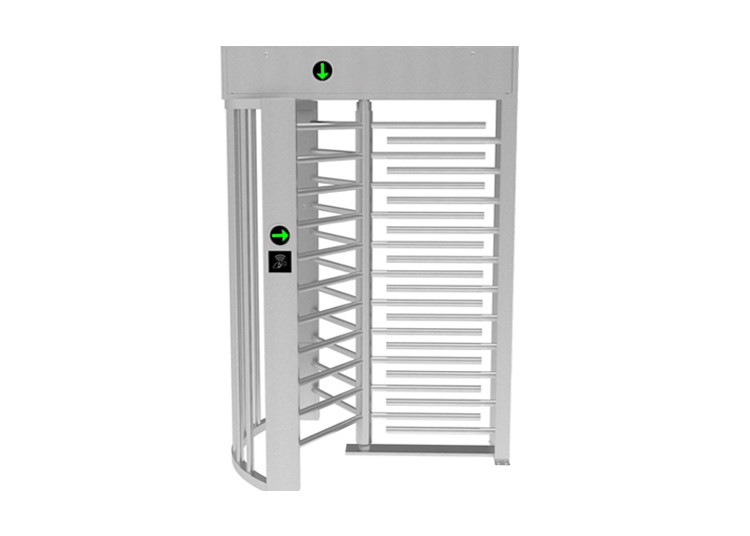

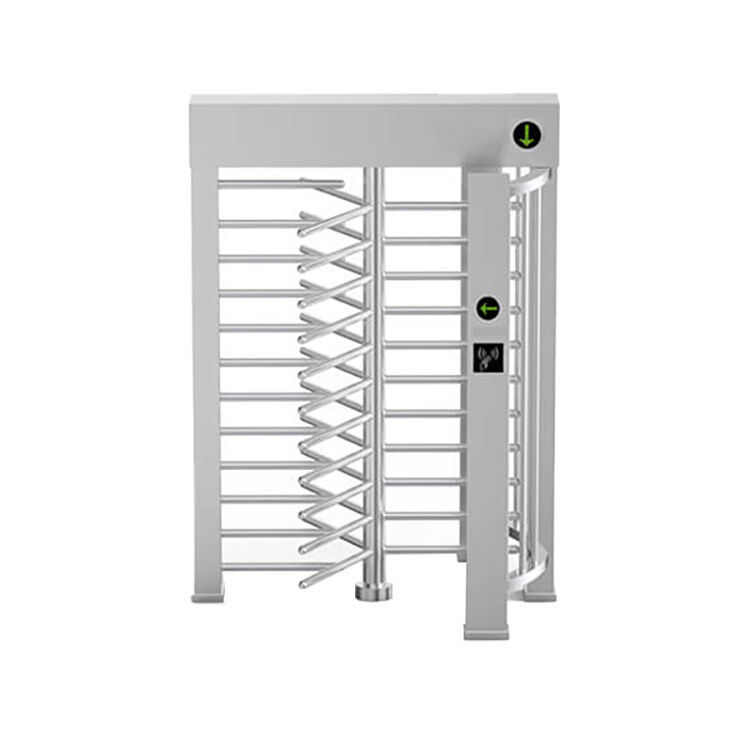

Pedestrian Access Control Semi Automatic Revolving Full Height Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT01
Product Details
Arm Lenght:
About 550mm
Control Circuit:
DC24
Housing Material:
Stainless Steel/mild Steel
Passage:
About 600mm
IP Rate:
IP54
OEM/ODM:
Support
High Light:

Revolving Full Height Turnstile

,

Semi Automatic Full Height Turnstile

,

Pedestrian Access Control Revolving Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,00pcs per month
Product Description

Pedestrian Revolving Access Control System Semi-Automatic Full Height Rotor Turnstile





Introduction of Full Height Turnstile:



The full high turnstile is designed to provide unsupervised access control for office or building. The impenetrable construction eliminates any unauthorized access to restricted areas. To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. the turnstile will unlock and allow the user to pass through the direction requested.



The turnstile can also work with push button, fingerprint and face recognition access control system.



Pedestrian Access Control Semi Automatic Revolving Full Height Turnstile 0



Funcation and features

(1) Running stably without noise and mechanical impact.



(2) The passing person number of the persons can be set.



(3) Several ways of working molds for your demand chosen.



(4) Bidirection, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board.



(5) Self-check and alarm for convenienting to operate.



(6) Direction-guide lights in the turnstile to tell you whether the direction to go or not.



(7) The standard electrical interface connected with various kinds of reader and writer equipment.


(8) All the functions realized in one integration machine and controlled and managed by the computer in the far distance.


(9) The number of the persons passed by can be counted automatically which can also be displayed in LED (optional)



(11) The function with or without card-reading memory can be set according to your demand.(optional)



Technician specifications



  S/N    Specs
Model

SN-FHT01

Size
2300*1450*2300mm
Material
1.2mm SUS304
Passage Width
About 600mm (customizable)
Passage direction
Single directional/Bi-directional
Pass rate
30-35 persons/minute
Operating time
1 seconds
Power input
AC100-240V, 50/60HZ
Working voltage
24V
Working humidity
30%~95%
Working temperature
-40℃~+70℃
Working environment
Indoor/outdoor
Communication interface
Dry contact
Service life
>5 million cycles





FAQ



Q: Are you manufacturer or trader?
A: We are manufacturer, we have own factory in Shenzhen, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.



Q. Do you sell the accessories for Products ?
A: Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.



Q. How about the packing for product?
A: Is it easy damaged during transportation? For light structure products like loop detector. we use carton box .

For heavy structure products like full height turnstile, we use Standard Export ploy Wooden Case.





Q. Where is your main sales market?
A: Our Gold meal detectors customer all over the world. Mainly in Southeast of Asia, South of America, Middle east, East Europe and Africa



Q. How about your after-sales policy?
A: Customer first is our always principle . All of our products normal warranty is 12 months.



Q. Do you accept customer Logo and customized ?
A: we accept kinds of customized and logo of all of our products for customers
