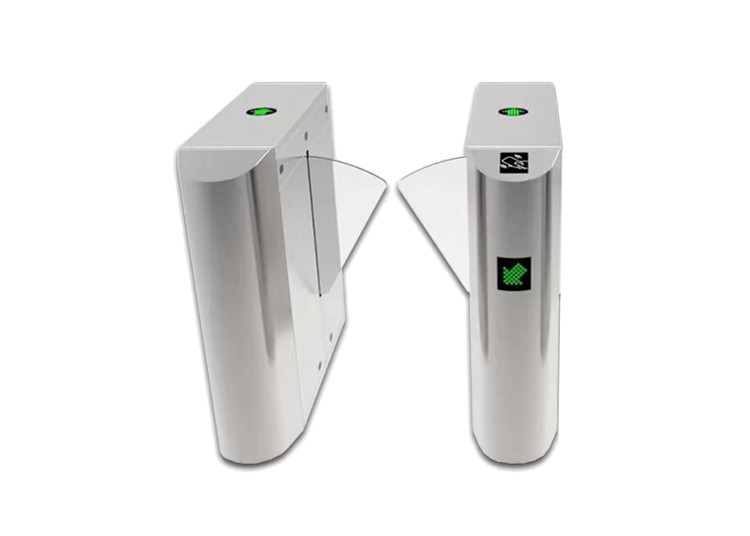

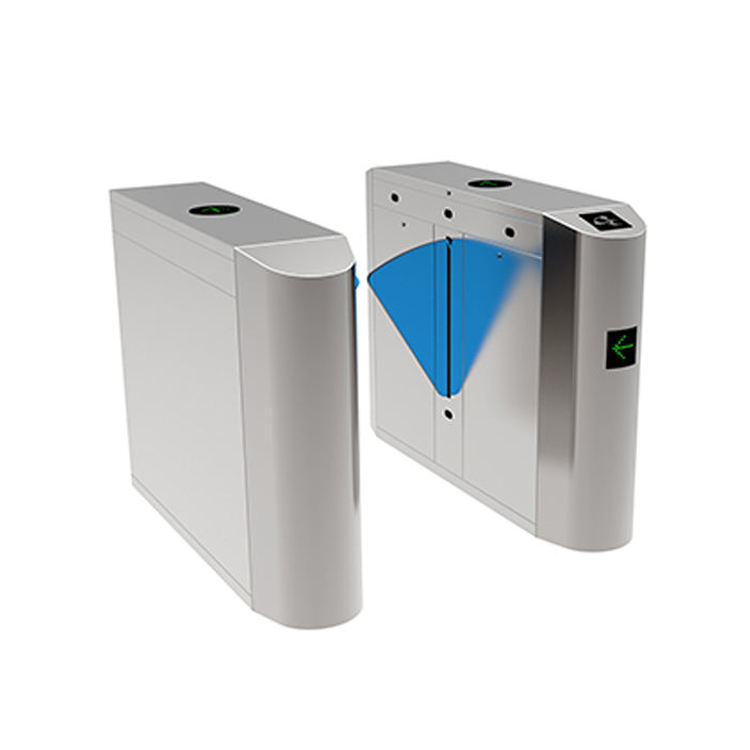

CE Certificated RFID Card Reader Bidirectional Flap Barrier Gate For Fitness Center
  • CE Certificated RFID Card Reader Bidirectional Flap Barrier Gate For Fitness Center
  • CE Certificated RFID Card Reader Bidirectional Flap Barrier Gate For Fitness Center
  • CE Certificated RFID Card Reader Bidirectional Flap Barrier Gate For Fitness Center
  • CE Certificated RFID Card Reader Bidirectional Flap Barrier Gate For Fitness Center
CE Certificated RFID Card Reader Bidirectional Flap Barrier Gate For Fitness Center

CE Certificated RFID Card Reader Bidirectional Flap Barrier Gate For Fitness Center

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB02
Product Details
Material:
SS304(default)
Certificate:
CE RoHS FCC
Machine Core:
Single Core Or Dual Core
Normal Life:
5 Million Times
OEM/ODM:
Support
IP:
54
Highlight:

Bidirectional Flap Barrier Gate

,

RFID Card Reader Flap Barrier Gate

,

Bidirectional Flap Barrier Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description
CE Certificated RFID Card Reader Bidirectional Flap Barrier Gate For Fitness Center
Product Overview
Sinomatic flap barrier gates are designed for secure access control in fitness centers and other facilities. Compatible with IC cards, ID cards, barcode cards, and fingerprint recognition devices, these gates provide civilized and orderly access management for staff and members.
Applications
Ideal for stations, subway systems, wharves, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring sophisticated access management solutions.
Case Reference
CE Certificated RFID Card Reader Bidirectional Flap Barrier Gate For Fitness Center 0
Key Advantages
  • Built-in self-diagnostic and problem-detection system
  • Bi-directional gate opening capability
  • Automatic arm opening during power failure with automatic reset when power returns
  • Adjustable closing delay (1-60 seconds) after valid card read
  • Auto-reposition function cancels access if not used within set time
  • Anti-rush protection with secure locking without open signal
  • Quiet operation with stable performance
Main Functions & Features
  • Comprehensive fault detection and alarm system for easy maintenance
  • Programmable operation via built-in keyboard on main board
  • Mechanical anti-pinch safety feature with automatic reset
  • Anti-breakthrough security with automatic locking
  • Synchronization capability for dual gate installations
  • Automatic access cancellation for unused permissions
  • Configurable as normally open or normally closed
  • Compatible with IC/ID card readers, barcode scanners, and fingerprint systems
  • Single-direction or bi-direction operation settings
  • LED direction indicators for clear user guidance
  • Fire safety compliance with automatic power-off opening
  • Alarm functions for unauthorized access attempts
  • Optional counter functionality
  • Infrared photocell support for enhanced safety
Technical Specifications
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor Voltage DC 24V (brushless motor)
Maximum Flow Rate 25 to 30 persons per minute
Flap Opening/Closing Time 1 second
Reset Time When Power On 3 seconds
Working Temperature -20°C to 60°C
