RFID / Fingerprint / Barcode Reader Flap Barrier Gate For Entrance System
  • RFID / Fingerprint / Barcode Reader Flap Barrier Gate For Entrance System
  • RFID / Fingerprint / Barcode Reader Flap Barrier Gate For Entrance System
  • RFID / Fingerprint / Barcode Reader Flap Barrier Gate For Entrance System

RFID / Fingerprint / Barcode Reader Flap Barrier Gate For Entrance System

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB03
Product Details
Opening Time:
0.2s
Passing Speed:
30 ~35 Person/min
Working Temperature:
-20°C~60°C
Direction:
Single Or Double
Drive Motor:
Brushless DC 24V
Input Voltage:
AC100-240V, DC24V
Highlight:

Barcode Reader Flap Barrier Gate

,

Fingerprint Flap Barrier Gate

,

RFID Flap Barrier Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description
RFID / Fingerprint / Barcode Reader Flap Barrier Gate For Entrance System
This advanced flap barrier gate system integrates RFID, fingerprint, and barcode reader technologies to provide secure and efficient pedestrian access control. Designed for optimal performance and reliability in various environments.
Technical Specifications
Product Name Flap Barrier Gate
Model SN-FB03
Material Stainless Steel 304 (Cover: 1.5mm Cabinet: 1.2mm)
Size 1200*300*980mm
Pass Width 600mm
Passage Direction Unidirectional/Bi-directional
Pass Rate 30-35 persons/min
Infrared Sensor 3 pairs (default)
Power Input AC100-240V, 50/60HZ, DC24V
Working Voltage 24V
Working Humidity ≤95%
Working Temperature -30℃ to +70℃
Working Environment Indoor/Outdoor
Communication Interface RS232, RS485, TCP/IP
Access Control System ID/IC card, fingerprint, face recognition, barcode/QR code, phone app, ESD system, visitor system
Flap Barrier Gate Overview
This innovative pedestrian control technology achieves the perfect balance of quality, performance, and affordability. The flap barrier gate provides reliable mechanical and electronic restriction for unauthorized visitors while maintaining a welcoming atmosphere. Access control and time attendance readers can be seamlessly integrated.
Ideal for indoor applications including railway platforms, passenger terminals, ferries, airports, checkpoints, factories, stadiums, and commercial, industrial, or government building lobbies. Enhances security while providing a premium, organized entrance solution.

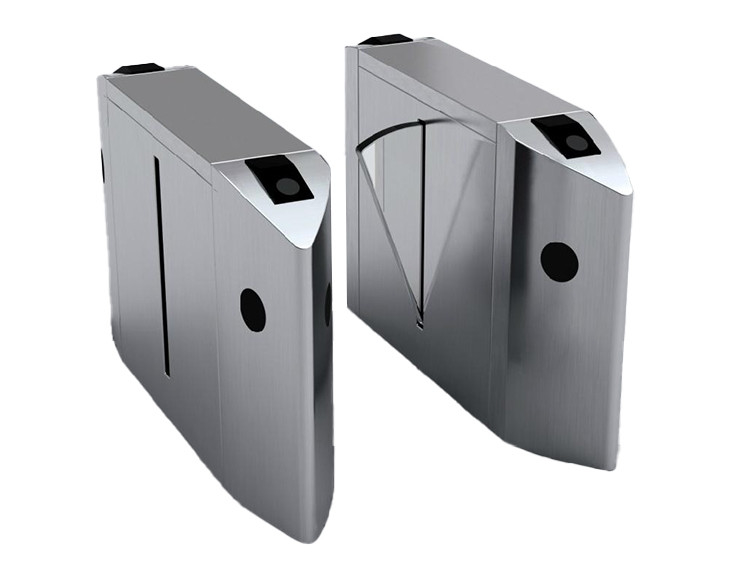

RFID / Fingerprint / Barcode Reader Flap Barrier Gate For Entrance System 0
Features and Functions
Fault detection and alarm functions for easy maintenance
Programmable operation via built-in keyboard on main board
Mechanical anti-pinch function with automatic reset
Anti-breakthrough security with automatic locking
Synchronization capability for dual gate configurations
Automatic reset function with configurable timing
Configurable as normally open or normally closed
Compatible with various card readers and biometric systems
Unidirectional or bi-directional operation modes
LED direction indicators for user guidance
Fire safety compliance with auto-open during power failure
Alarm system for illegal and reverse intrusion detection
Optional counter functionality
Infrared photocell integration for enhanced safety

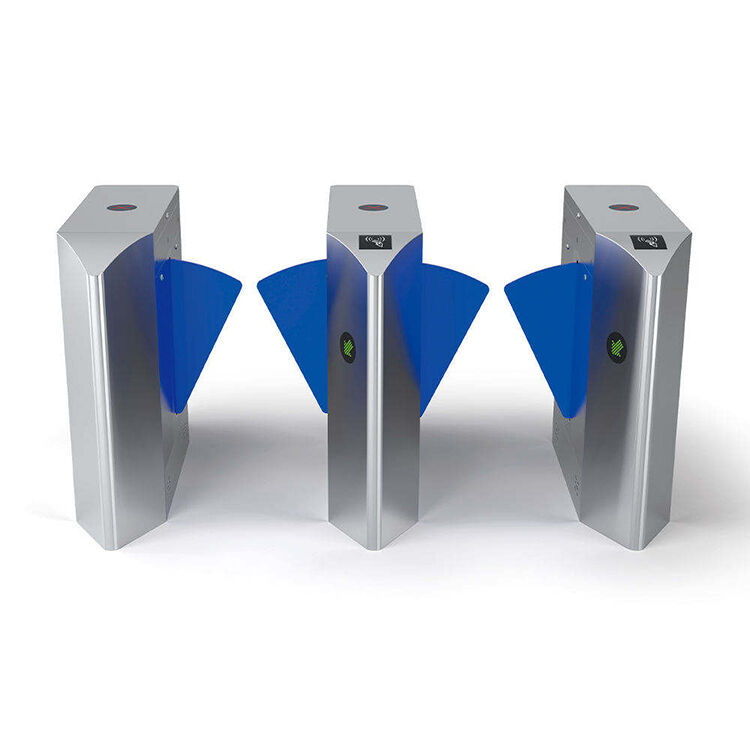

RFID / Fingerprint / Barcode Reader Flap Barrier Gate For Entrance System 1
