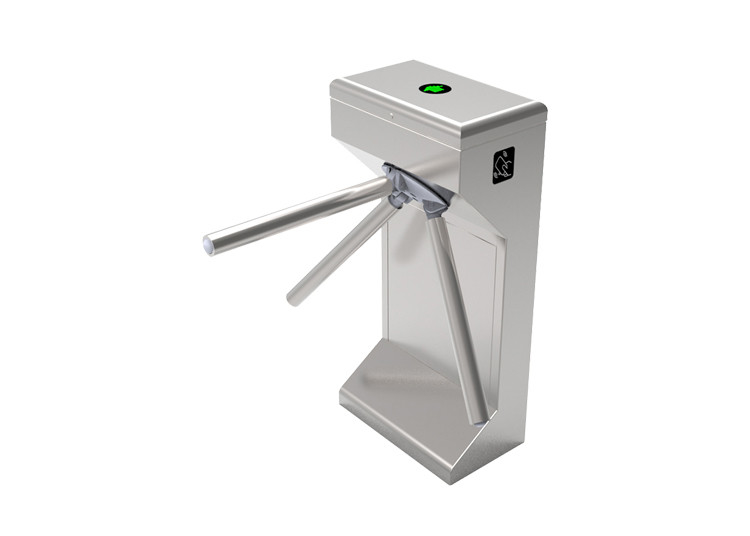

550mm Lane Width 304 Stainless Steel Tripod Turnstile Gate
  • 550mm Lane Width 304 Stainless Steel Tripod Turnstile Gate
  • 550mm Lane Width 304 Stainless Steel Tripod Turnstile Gate

550mm Lane Width 304 Stainless Steel Tripod Turnstile Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Size:
480*280*980 Mm (can Be Customized)
Passing Speed:
30 Person/min
Control Voltage:
DC24V
Power Supply:
110V/220V (±10%)
Gate Open Signal:
Dry Contact/ Relay
Casing Material:
304 Stainless Steel
High Light:

304 Stainless Steel Tripod Turnstile Gate

,

550mm Lane Width Tripod Turnstile Gate

,

550mm Lane Width Tripod Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

550 Mm Lane Width 304 Stainless Steel Security Tripod Turnstile Gate





Product description



Tripod security gate is a three-arm turnstile gate that is used in the location that the controlled entrance and exit of crowds are needed. The tripod security gate runs smoothly and effectively by basic operation, and also prevents illegal in and out. Tripod security turnstile is a type of easy, economical crowd-organizing and reliable, entrance gate system. Tripod turnstile is a cost-effective turnstile that is suitable for various locations.



Tripod turnstile is the most basic type of pedestrian turnstile gate, which is composed of the chassis, mechanism, and three blocking rods which stop or release by rotating 120° each time. Its components include chassis, mechanism, drive control board, motor, limit, direction indicator board, access control part, optional counter, etc. The metal rod (rod length standard 50cm) forms a spatial triangle as the blocking body (brake rod). It is made of 304 or 316 stainless steel, which is durable and not easy to deform. The blocking and releasing are achieved by rotation.



Generally, the shape of the tripod turnstile is made of a 304 stainless steel plate, which is beautiful and generous, rustproof and durable, and can resist external force damage.



Tripod turnstile is divided into mechanical type, semi-automatic type, and full-automatic type from the mechanism control mode. From the shape, it is divided into vertical tripod turnstile and bridge tripod turnstile. The vertical tripod turnstile gate has a small volume and is relatively easy to install; The bridge tripod turnstile gate has a longer channel and higher security.



TECHNICIAN SPECIFICATIONS



ITEM

SPECIFICATIONS

Power supply

AC100V ~ 240V; 50/60Hz

Housing material SS304

Power consumption

40W

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor

No motor

Max flow rate

30 person per minute

Arm length

500mm

Passage width 550mm to 600mm

Working temperature

-20°C~60°C



550mm Lane Width 304 Stainless Steel Tripod Turnstile Gate 0

Main function and features



1. Tripod security gate is a compact and cost-effective entrance solution.


2. Tripod security gate has fully rainproofed 304 stainless steel housing, which is rust-resistant, solid, durable.


3. Tripod security turnstile can be mounted for both indoor and outdoor locations. The IP rate is 54


4. It has an international standard relay output, which can be easily integrated with all kinds of third-party access control systems (i.e RFID, Fingerprint, Face, Barcode, IR thermometer).


5. This model of Tripod security gate is a semi-automatic one. You will need to push the arm slightly to open the gate when access is granted.
The reasonable design and high performance are to ensure the gates can move quickly and accurately, stably and quietly; with low-power consumption, energy conservation, and environment protection.


6. Durable, corrosion-resistant, heavy-duty, mold mechanism for extended service life


7. The mechanism is mold design. All the components are precise. It makes the gate system operate smoothly, with low noise. A hydraulic damper can be added.


8. The design of the tripod security turnstile makes only one person pass at one time.



9. Single-directional or Bi-directional is supported.



10. LED directional indicator light on top of the housing


11. Automatic clock function: if there is an open signal received, but the visitor does not pass through the gate within a specific time (default 5s), the turnstile arm will lock automatically.


12. When power off, tripod turnstile arms will drop down automatically to allow free passage, which is complying with fire safety requirements.
