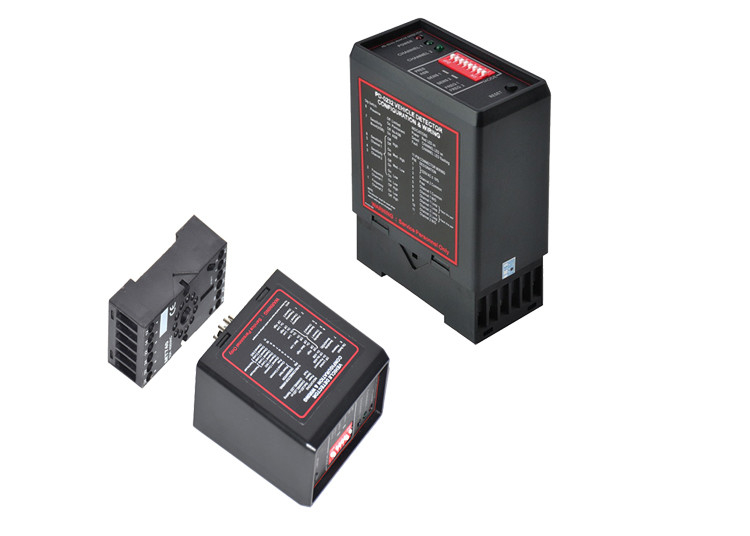

OEM Dual Channel Vehicle Loop Detector 230VAC 115VAC 24VDC/AC 12VDC/AC

Name: OEM Dual Channel Vehicle Loop Detector 230VAC 115VAC 24VDC/AC 12VDC/AC
Brand: SHENZHEN SINOMATIC TECHNOLOGY CO., LIMITED
SKU: PD-232
Price: 67.00 USD
Availability: InStock

Place of Origin	Shenzhen, China.
Brand Name	SINOMATIC
Certification	CE/ ISO
Model Number	PD-232

Product Details

Output Signal Type:

Exist

Frequency Adjustment:

Color:

Black

Output Signal:

Exist,pulse

Loop Quantity:

Output Delay:

Highlight:

OEM Vehicle Loop Detector

230VAC Vehicle Loop Detector

115VAC Dual Channel Loop Detector

Payment & Shipping Terms

Minimum Order Quantity

Sample order accepted

Price

negotiable

Packaging Details

Carton/Plywood box/Pallet

Delivery Time

2-5 working days after payment received

Payment Terms

T/T, L/C, D/A, D/P, Western Union,

Supply Ability

10,000 pcs per month

Product Description

OEM Dual Channel Vehicle Loop Detector

Professional OEM supply dual channel vehicle existence detector supporting multiple voltage inputs including 230VAC, 115VAC, 24VDC/AC, and 12VDC/AC.

Key Advantages

High temperature stability for reliable operation
Automatic environmental drift compensation
Coil automatic fault detection system
Multi-stage sensitivity adjustment
Compatible with barrier gates and anti-collision systems
Enables automatic gate closure after vehicle passage
Dual coil model supports vehicle driving direction detection

Application Scope

Parking lot entrance vehicle detection
Parking space information acquisition systems
Electronic traffic enforcement snapshot systems
Traffic monitoring and control systems

Technical Specifications

Product Name	Vehicle Loop Detector
Product Model	PD-232
Work Voltage	230V AC, 115V AC, 24V DC/AC, 12V DC/AC
Loop Quantity	2
Output Interface	Two relay
Output Signal Type	Exist pulse
Frequency Adjustment	4
Sensitivity	4
Output Delay	No
Dimension	78×40×108mm

Product Features

Reset Switch: Manual reset capability for system recovery during testing
Selectable Pulse Time: Configurable pulse duration (1S or 0.5 Seconds)
Pulse Relay Selection: Configurable activation on vehicle entry or exit
Sensitivity Reinforcement: Maximum sensitivity setting for large vehicle detection
Adjustable Sensitivity: 4 sensitivity settings for optimal performance
Adjustable Frequency: 4 frequency settings to prevent signal interference
Filtering Option: Delay feature to prevent false detection of small objects
Permanent Presence Option: Continuous detection for vehicles in extended loop occupancy

Operation & Configuration

Initial Operation

Upon power-up, the vehicle loop detector performs automatic correction lasting 1 second. During correction, ensure no vehicles are present on the loop. Successful initialization is indicated by the "check" LED turning off. Vehicle detection activates the relay and illuminates the "check" LED.

Frequency Adjustment

Four frequency options available via DIP1 and DIP2 switches to prevent crosstalk between adjacent loops.

Sensitivity Adjustment

Sensitivity is controlled by DIP3, DIP4, and DIP5 switches. Begin with lower sensitivity settings during testing and gradually increase until stable detection is achieved.

Filter Option

DIP6 switch enables filtering in high electromagnetic interference environments. Note: Filter activation may reduce sensitivity or increase detection delay.

Output Relay Functions

Pin5, pin6, pin10 provide pulse output (500ms duration). Pin3, pin4, pin11 provide existence output while vehicle occupies loop. DIP8 switch controls duration output timing.

Duration Output Time Setting

DIP8 switch programs output duration: ON position provides unlimited duration, OFF position limits to 10 seconds with automatic reset.

Reset Function

Reset occurs during power-up, manual button press, or timeout in limited duration mode. After reset, detector initializes to vehicle-free state.

Download PD-232 Datasheet (PDF)
