Anti Tailgating Electro Mechanical Tripod Turnstile Gate
  • Anti Tailgating Electro Mechanical Tripod Turnstile Gate
  • Anti Tailgating Electro Mechanical Tripod Turnstile Gate

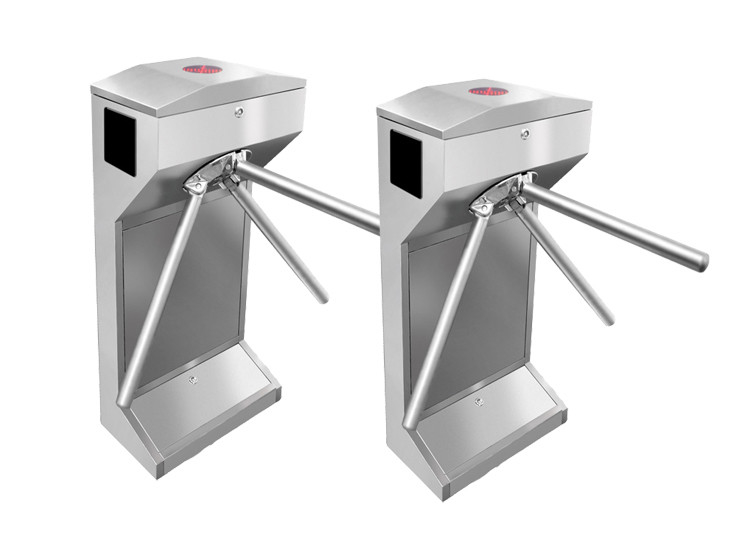

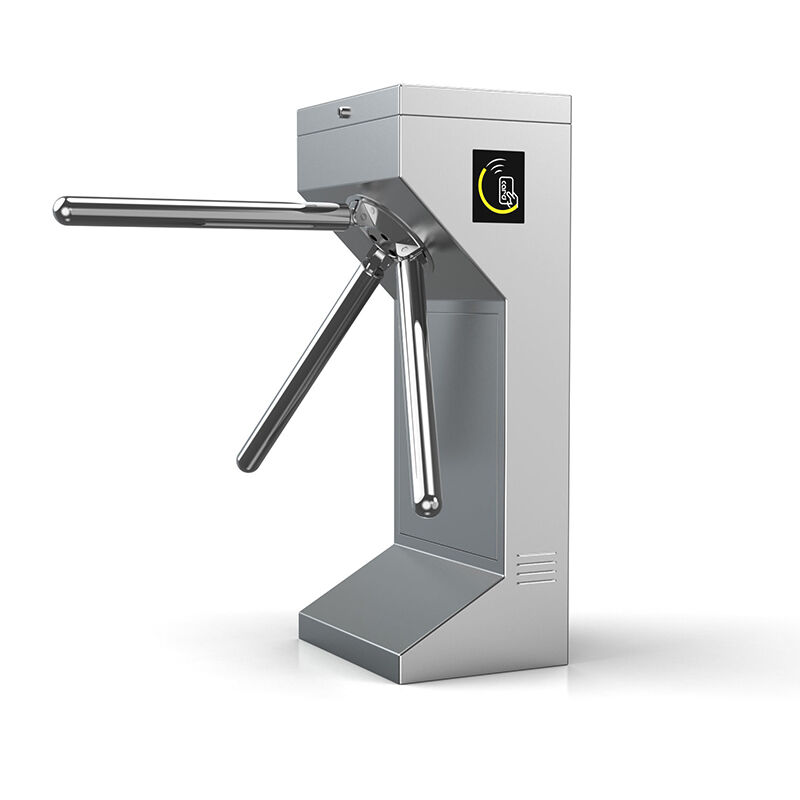

Anti Tailgating Electro Mechanical Tripod Turnstile Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Flow Rate:
30 Person/min
Control Voltage:
DC24V
Input Power:
AC100V~240V, DC24V
Gate Open Signal:
Dry Contact/ Relay
Casing Material:
304 Stainless Steel
Feature:
Mini Size
Highlight:

Electro Mechanical Tripod Turnstile Gate

,

Anti Tailgating Tripod Turnstile Gate

,

Anti Tailgating Tripod Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,000pcs per month
Product Description
Anti Tailgating Electro Mechanical Tripod Turnstile Gate
Product Overview
This Anti-Tailgating Smart Lock Mechanism Turnstile Gate features a unique mechanical drive design that allows effortless arm movement and automatic rotation without expensive electric motors. This turnstile efficiently manages high-volume traffic (up to 35 people per minute) while maintaining a welcoming atmosphere and integrates seamlessly with ticketing, ESD, RFID access control, and time attendance systems.
Applications
Ideal for indoor installations, It can be used outdoors under shelter. For coastal areas, SS316 material is recommended. This economical solution is optimized for railways, bus stations, factories, colleges, commercial buildings, stadiums, game parks, banks, and similar facilities.
Key Features
  • Mechanical drive unit eliminates expensive electric motors and reduces maintenance costs
  • Heavy-duty solenoid lock mechanism ensures longer lifespan and minimal maintenance
  • Configurable for bi-directional or uni-directional operation
  • Built-in acrylic plate for easy integration with other devices
  • Automatic arm rotation with adjustable tension spring for controlled movement
  • DC operation with built-in circuit breaker protection
  • Anti-tailgating smart lock mechanism with limit switch detection
  • Configurable time delays (5, 10, 15, and 60 seconds)
  • Free passage during power failure with automatic arm drop
  • Key-locked internal components to prevent tampering
  • Built-in LED direction indicators
  • Light-touch operation suitable for all users including elderly and children
Anti Tailgating Electro Mechanical Tripod Turnstile Gate 0 Anti Tailgating Electro Mechanical Tripod Turnstile Gate 1 Anti Tailgating Electro Mechanical Tripod Turnstile Gate 2
Technical Specifications
ITEM SPECIFICATIONS
Power supply AC100V ~ 240V; 50/60Hz
Housing material SS304
Power consumption 40W
Access device input voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor No motor
Max flow rate 30 persons per minute
Arm length 510mm
Passage width 600mm
Working temperature -20°C~60°C
