Electro Mechanical Auto Rotate Back Mini Tripod Turnstile Gate
  • Electro Mechanical Auto Rotate Back Mini Tripod Turnstile Gate
  • Electro Mechanical Auto Rotate Back Mini Tripod Turnstile Gate

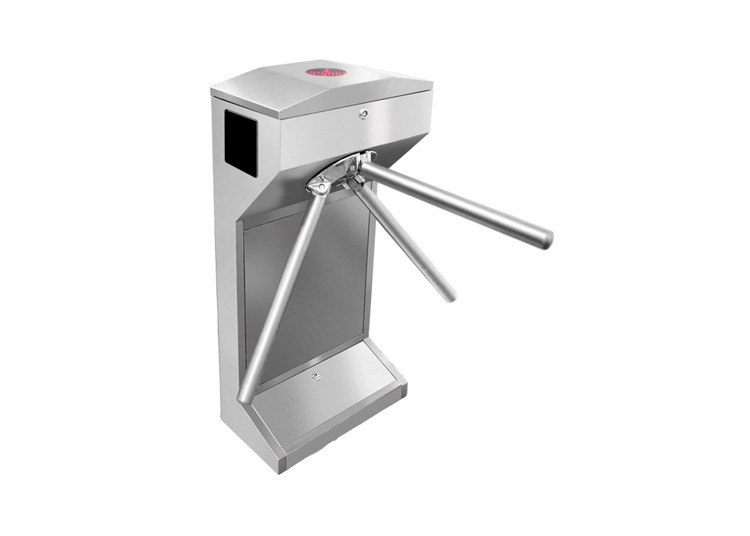

Electro Mechanical Auto Rotate Back Mini Tripod Turnstile Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Power Supply:
AC100V ~ 240V; 50/60Hz
Passing Speed:
30 To 40 Person/min
Control Voltage:
DC24V
Passage Width:
600mm
Gate Open Signal:
Dry Contact/ Relay
Casing Material:
304 Stainless Steel
Highlight:

Auto Rotate Back Tripod Turnstile Gate

,

Electro Mechanical Three Arm Turnstile

,

Mini Tripod Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,000pcs per month
Product Description
Electro Mechanical Auto Rotate Back Mini Tripod Turnstile Gate
Unique Electro Mechanical Design with Auto-Rotate Back Function

This semi-auto mini tripod turnstile is a compact pedestrian access control solution designed for restricted entry points. This turnstile effectively prevents unauthorized access while maintaining an inviting atmosphere. The system does not permit luggage passage and offers superior anti-tailgating performance in the smallest available footprint.

Advanced Anti-Tailgating Technology

Traditional turnstiles often suffer from tailgating vulnerabilities where multiple individuals pass through with a single valid credential. The TTS312 eliminates this security gap through innovative DLAR (Dual Level Anti Reverse) technology and SPT (Single Pass Timer) alarm system, ensuring one credential permits only one person to pass without additional tailgating attempts.

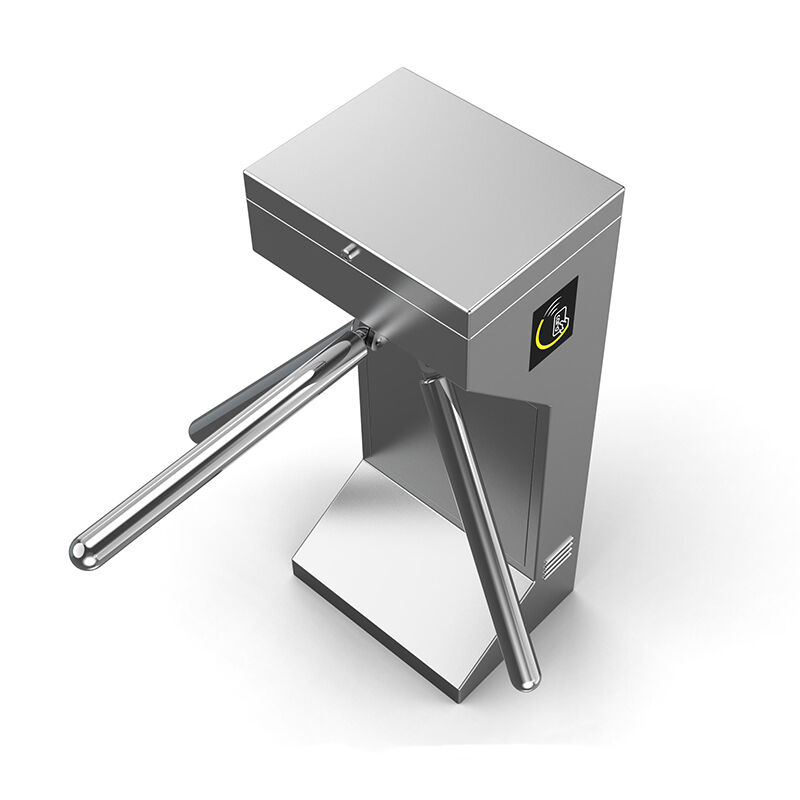

Electro Mechanical Auto Rotate Back Mini Tripod Turnstile Gate 0
Advanced Features
  • Compact Design: Easily installs in tight spaces with minimal footprint requirements
  • Cost-Efficient Operation: Mechanical spring system automatically returns arm to home position without expensive electric motors - requires only light pressure for operation, suitable for all users including elderly and children
  • Emergency Safety: Arm drops automatically during emergencies or power failures to facilitate rapid evacuation
  • Project Flexibility: Standard model inventory ensures timely delivery and accommodates unpredictable project schedules
Technical Specifications
Power Supply AC100V ~ 240V; 50/60Hz
Housing Material SS304 Stainless Steel
Power Consumption 40W
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor No motor required
Maximum Flow Rate 30 persons per minute
Arm Length 510mm
Passage Width 600mm
Working Temperature -20°C ~ 60°C
Why Choose Our Turnstile Solutions
  • More than 20 years of OEM/ODM experience in access control turnstiles, barriers, and road blockers
  • Prompt delivery with standard model inventory availability
  • Custom OEM/ODM orders to meet specific client requirements
  • Sample testing available before bulk orders
  • Comprehensive online technical support
  • Multiple transportation options including sea, air, and express shipping
  • Factory visits welcome during working days

Stop tailgating security breaches at your restricted entry points with our compact, affordable TTS312 turnstile solution.
