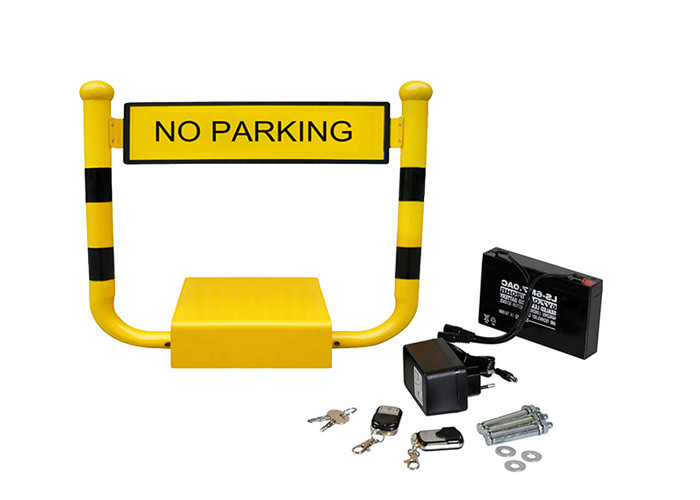

Cold Rolled Steel Parking Space Barrier 530mm Up Height

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-BW-5
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 3-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability 5,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Color Yellow/black Remote Distance 30 Meters
Power Voltage DC 12V 7AH Bearing Max. 5 Tons
Net Weight 12.5 KG Packing Standard Export Carton/pallet For Bulk Order
High Light

Cold Rolled Steel Parking Space Barrier


Parking Space Barrier 530mm Up Height


Cold Rolled Steel Parking Spot Barrier

Leave a Message
Product Description

530mm Barrier Up Height Waterproof Cold Rolled Steel Sheet Parking Space Barrier



Product description


  • High quality material: A3 steel, durable; IP 54, waterproof and rustproof.
  • Special shape design: we have the design patent, supply OEM/ODM customized service.
  • Easy operation & use: we offer the specific user manual to help you quickly use it.
  • Excellent service: pre-sales and after sales service. Pre-sale: we do confirm all details with you before sending products, such as the working voltage and so on. After- sale: if you have any problem in installation or operation, just contact us in time, our team do help you to solve it.
  • Hot-selling market: Saudi Arabia, Brazil, Chile, Pure, Colombia, Australia, Canada, New Zealand, UAE, PH, USA, the European, Malasia, and so on.

Our advantages

1. Body of parking barrier

The cover is made of A3 steel, which can bear the greatest weight 2000KG, if you have special requirements can be modified to enhance the structure strength.


2. Indicator light

With one indicator light in the front of the lid for show the state of operating:

a. The indicator will show a red light when the barrier is working normally.

b. The indicator will flash continually show the battery voltages is low. Pleases recharge in time in order to extend battery's life.


3. Crash resistance

If the barrier arm is forced down when in the upper position, the beeper will beep. When the barrier arm is released it will return to the upper position and running normally.


4. Object sensing

The power will be cut off automatically when the parking barrier senses that excessive force is being exerted on barrier arm


5. Energy saving

After one minute without use the barrier switches itself to the energy saving mode.


6. Water-proof

Processed for motor, main parts so that they have water-proof feature.


7. Manual expatiation for emergency

If the battery voltage is too low the barrier can be manually operated.



Cold Rolled Steel Parking Space Barrier 530mm Up Height 0




Weight resistance ≤5 ton
Dimension 520*480*530mm
Up height 530mm
Down height 90mm
Outdoor Protection IP67
Finish Spraying plastic coating
Material 3.00mm steel rolling
Up and down time 5s -6s
Remote distance ≤50m
Lead Acid Battery About 3 months on a charge
Input voltage DC 12V or AC110/220V
Working power DC12V 7AH
Static Current(mA) ≤0.85Ah
Environment Temperature -40~+70 °c
Package dimension 620*510*110mm (1 set in a carton)
Weight G.W (13KG) / N.W (12.5KG)
Humidity 10%-95%


Product features


1, Security Designs

Parkinglock using plate buckle arranged fixed screws, in addition to the user can beopened by a key, others will not be able to remove parking lock; The outside can not see the mounting screw, so as to play the role of anti-theftand aesthetic effect


2, Hermetic Design

Thecabinet is tightly closed, so it can protect the control pane and motor. It canbe used in any environment, even in rain and snow


3, Low –Noise Solution

Inorder to reduce friction, improve product stability, parking lock using bearingtransmission, bearing transmission design of the motor makes almost zero noise.It is beneficial for battery and motor longevity and lesser friction.


4, Anti-Disconnecting Design

The power connection is anti-disconnectingdesign in case that the user misplaces the battery causing short circuit.


5, Photoelectric switch

Intelligent circuit,it will improve the work stability of the parking lock, especially when youoperate your parking lock, you will find the unique feature compare with othersupplier.


6, Charge Reminder

Whenthe accumulator discharges to some extent, the internal reminder warns thesubscriber to recharge the battery cell.


7, Auto-Reset

The external force could notchange the away arm position when it is vertical; when the sway arm is forcedto a horizontal position, it will reposition vertically, unless the user usesremote control to put it horizontally.


8, Anti-Collision Design

90°rotationangle can make it safe when car hit,

Protectyour car, protect your parking lock


9, WaterproofDesign

General waterproof design, 24 hours is ok under one meter of water.


10, Easy Installation

Justa bit by a plate buckle playing four holes, install the expansion screw fixingplate buckle, four prepared holes at the bottom of the cabinet makes it easy toinstall, you need just a wrench.


11, DarkIndicator

In dark both ends of the berth shine red Reflective stripe toremind the passersby to avoid, thus preventing accidents.


12, Feasibility

Suitable for all parking place andall kinds of car
