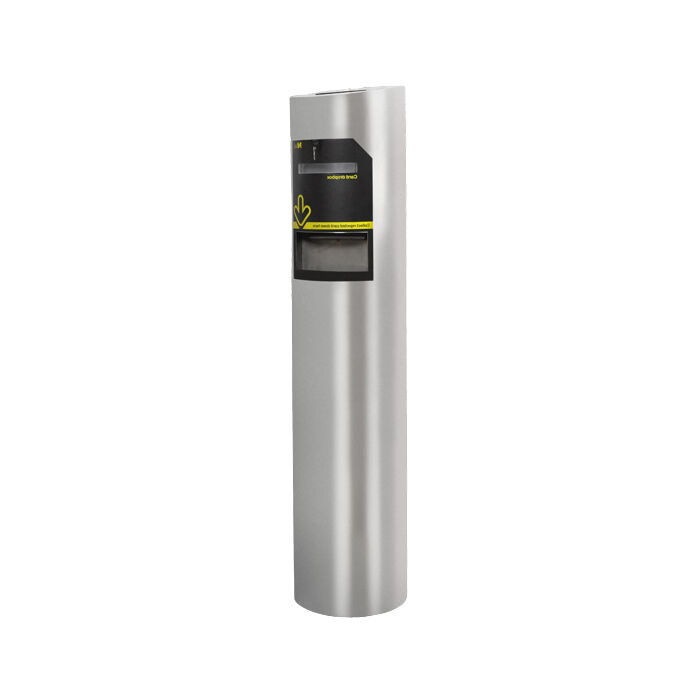

219mm Diameter Cylinder SS304 Dropbox Card Collector
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-DBX100 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 5-10 working days after payment received |
| Payment Terms | T/T or western Union |
| Supply Ability | 1,000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | SS304 | Housing Thickness | 2.0mm |
|---|---|---|---|
| Housing Shape | Cylinder | Power Consumption | Idle : 24VDC, 0.01A Operation : 24VDC, 4.71- 4.74A |
| Collection Bin Dimension | 13.5 X 13.5 X 29 Cm | Card Capacity | Maximum 280 Cards |
| High Light | SS304 Dropbox Card Collector,219mm Diameter Cylinder Dropbox Card Collector,SS304 Card Collector Box |
||
Product Description
219mm Diameter Cylinder 2.0mm Thickness SS304 Dropbox Card Collector Turnstile
PRODUCT DESCRIPTION
It is so frustrating for your visitors to be in the long queue twice on the same registration counter when entering and
exiting your building just to return the access card. What if you can help reduce the long line by half?
DBX100 can be used with visitor management software to achieve auto-visitor check out function. Visitor no
longer need to go to the reception counter to return their visitor card. Visitor just needs to drop their visitor
card into DBX100, the card will automatically check out this visitor in SE-VMS software record.
DBX 100 can accept proximity card with holder and pin clip. Valid visitor card will fall into collection bin inside.
Invalid card will fall out to the exit tray at front.
DBX100 is a dropbox type card collector. User can drop their visitor card into the dropbox to gain access for
exit or entry. DBX100 can be integrated with any access control reader. DBX100 design is simplified to achieve
highly affordable solution for ticketing and visitor management system.
PRODUCT SPECIFICATION
| Description | Parameter |
| Power supply | AC230 power input Built in DC12V power supply |
| Power consumption | Idle : AC 0.04A, DC 0.01A Operation : AC 0.28A , DC 4.71- 4.74A |
| Indicated light | Blue : Power On Green : Valid card Red : Dropbox fully occupied |
| Collection bin dimension |
13.5 x 13.5 x 29 cm Can contain maximum 280 cards |
| Maximum card size |
10 (W) x 9 (H) cm |
PRODUCT Application:
Dropbox is suitable for indoor application only. It is NOT suitable to be installed outdoor or near sea side.
Main function and features
- DBX100 can accept card with maximum 10 cm wide
- Any brand access control reader can be installed inside the dropbox. Once reader verified a valid card, reader shall trigger dropbox to accept the card. Accepted card will fall into collection bin at bottom.
- There is indication light to show operation status.
- Top cover can be opened by key for maintenance purposes.
- Bottom door can be opened by key to take out collection bin once it is full. Once collection bin is full, all cards (valid/invalid) card will fall out to the exit tray. DBX100 will not accept any more cards until the collection bin is cleared.
- DBX100 also can be used for ticketing application. Visitor can purchase entrance fees and be given a proximity card. Visitor drop the proximity card into dropbox to trigger gate to open. Operator collects all ticket (proximity card) back to ticket counter once the collection bin is full. Operator can reuse the proximity card again for next visitor.
Dropbox can be used with visitor management software (VMS) to achieve auto-visitor check out function. Visitor no longer need to go to the reception counter to return their visitor card. Visitor just needs to drop their visitor card into dropbox, the card will automatically check out this visitor in VMS software record.
Dropbox also can be used for ticketing application. Visitor can purchase entrance fees and be given a proximity card. Visitor drop the proximity card into dropbox to trigger gate to open. Operator collects all ticket (proximity card) back to ticket counter once the collection bin is full. Operator can reuse the proximity card again for next visitor.
Here download the datasheet:
