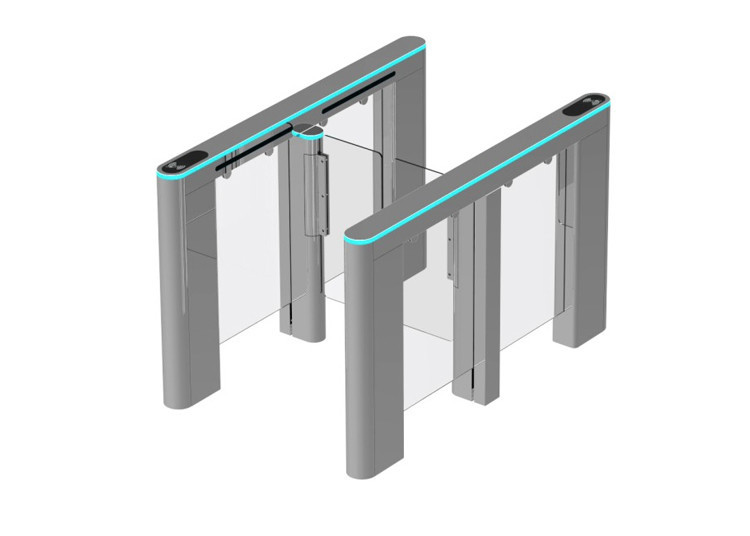

AC100V Pedestrian Barrier Gate LED Indicator 10mm Thickness Swing
High End Factory Price Pedestrian Fast Lane Swing Panel Speed Gate
Our swing turnstile speed gate represents intelligent access management technology developed through years of research and development. This equipment seamlessly integrates mechanical engineering, electronics, microprocessor control, and various reading/writing devices.
The system features comprehensive self-diagnostic capabilities with alarm prompts for easy maintenance and operation. Advanced safety functions include anti-pinch and anti-collision protection - when obstacles are detected during swing arm reset, the motor automatically stops within specified parameters and resumes operation after a preset delay with minimal force.
Additional security features include anti-shock functionality with automatic swing arm locking when no open signal is received. The gate supports both one-way and two-directional operation modes for flexible access control configurations.
Product Features
- Advanced ARM core microprocessor with digital positioning technology for precise start/stop control and accurate brake arm automation
- Smooth operation with minimal noise and simple, reliable mechanical structure
- Rust and corrosion resistant surface treatment for enhanced durability
- Multiple RJ45 and RS485/232 interfaces compatible with various card readers, barcode scanners, fingerprint/palmprint/face recognition systems
- Control panel with counting function and optional LCD/LED display
- Intelligent voice and sound prompts for user-friendly operation
- Automatic malfunction detection and alarm system for simplified maintenance
- Sound and light alarm functions for unauthorized access and tailgating detection
- Anti-impact protection with automatic flap locking without open signal
- Automatic reset function with configurable timing (default 5 seconds)
- Power-off automatic unlocking and rotation with power-on automatic locking
- Compatible with access control, consumer, electronic ticket, biometric, and static testing systems
- Unique two-direction anti-reverse functionality
- Single or bi-directional pedestrian access control
- Remote computer control and management capabilities
Detailed Specifications
| Model |
SN-HSG01 |
| Case Material |
SS304 (1.5mm, 2.0mm optional)/Baking varnish |
| Barrier Arm Material |
Transparent Acrylic (Color Optional) |
| Production Process |
CNC Laser Cutting |
| Size |
1200*150*1000mm (Customization acceptable) |
| Power Input |
AC100-240V, 50/60Hz |
| Operation Voltage |
DC24V, 3A, Power: 40W (Servo Motor Optional) |
| Electromagnetic |
Duty Cycle 100% |
| Passage Width |
600mm (Customization acceptable) |
| Passage Direction |
Single directional/Bi-directional (Optional) |
| Operating Time |
1S |
| Throughput Rate |
30 persons/minute (Normally Closed) or 40 persons/minute (Normally Open) |
| Reset Time after Power On |
3S |
| MCBF |
5,000,000 Cycles |
| Automatic Reset Function |
Automatically locked within set time (Time Adjustable) |
| LED Indicator |
Yes |
| Operation Humidity |
0~95% (No Freezing) |
| Operation Temperature |
-10℃~+50℃ |
| Operation Environment |
Indoor, Outdoor (Shelter) |
| Protection Level |
IP45 |
| Communication Interface |
Standard RS485 interface, distance ≤1200 meters |
| Input Interface |
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA |
Product Applications
This intelligent high-speed gate is compatible with IC card, ID card, barcode card, and fingerprint reading recognition devices for staff management. It provides organized, efficient access control solutions suitable for stations, ports, subway systems, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring sophisticated access management systems.
Frequently Asked Questions
What is your product's biggest advantage?
DC Brushless Motor technology ensures maintenance-free operation throughout product lifecycle, no attrition, low noise levels, and high intelligence.
What is your flap gate's opening and closing time?
≤ 0.4 seconds
What is the swing barrier gate working environment?
Suitable for both indoor and outdoor installations (with shelter)
Can I customize it?
Yes, we welcome customization requests. As the manufacturer, we support OEM arrangements.
What's your warranty?
1-year comprehensive warranty
