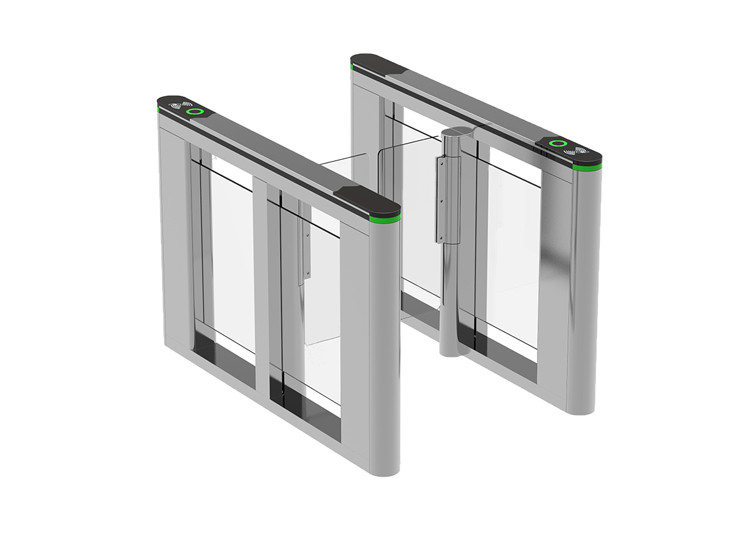

AC100V Pedestrian Turnstile Gate 0.2s Access Management Brushless DC
Intelligent Access Management Integrate Machinery Electronics Microprocessor Control Speed Gate
Product Overview
Our swing turnstile speed gate represents intelligent access management technology developed through years of research and development. This equipment seamlessly integrates mechanical engineering, electronics, and microprocessor control with various reading and writing devices.
Through integration with multiple reading devices and implementation of reliable safety protection systems, real-time alarm functionality, and direction indicator interfaces, this system achieves comprehensive intelligent access control and management through coordinated operation.
Basic Specifications
Size: 1200x150x980mm (customizable)
Supply Voltage: 110V-240V, 50HZ/60Hz
Working Voltage: DC24V
Relative Humidity: ≤95%, No Condensation
Unlock Time: 0.2s
Material: 304 stainless steel
Arms Material: 10mm acrylic
Motor: Brushless DC or Servo Motor
Detailed Specifications
| Model |
SN-HSG01 |
| Case Material |
SS304(1.5mm, 2.0mm optional)/Baking varnish |
| Barrier Arm Material |
Transparent Acrylic (Color Optional) |
| Production Process |
CNC Laser Cutting |
| Size |
1200*150*1000mm (Customization acceptable) |
| Power Input |
AC100-240V, 50/60Hz |
| Operation Voltage |
DC24V, 3A, Power: 40W (Servo Motor Optional) |
| Electromagnetic |
Duty Cycle 100% |
| Passage Width |
600mm (Customization acceptable) |
| Passage Direction |
Single directional/Bi-directional (Optional) |
| Operating Time |
1S |
| Throughput Rate |
30 persons/minute (Normally Closed) or 40 persons/minute (Normally Open) |
| Reset Time after Power on |
3S |
| MCBF |
5,000,000 Cycles |
| Automatic Reset Function |
Automatically locked within set time (Time Adjustable) |
| LED Indicator |
Yes |
| Operation Humidity |
0~95% (No Freezing) |
| Operation Temperature |
-10℃~+50℃ |
| Operation Environment |
Indoor, Outdoor (Shelter) |
| Protection Level |
IP45 |
| Communication Interface |
Standard RS485 interface, distance ≤1200 meters |
| Input Interface |
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA |
Product Features
- DC brushless motor supporting at least 5 million normal passages
- Multiple infrared detection sensors with anti-tailing tracking control technology
- Integrated voice module with customizable broadcast content
- LED indicators for traffic direction and status display
- Anti-shock function with automatic door wing locking during intrusion
- Self-test, self-diagnosis, and automatic alarm functions including illegal intrusion, reverse intrusion, and trailing alarms
- Automatic reset function cancels permissions after specified time
- Flexible configuration of access status (controlled, free traffic, no traffic)
- Memory mode for continuous and fast traffic processing
Product Applications
Intelligent high-speed gates compatible with IC card, ID card, barcode card, and fingerprint reading devices for staff management. Provides civilized, orderly access methods and effectively manages personnel flow. Widely applicable for stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring intelligent access management.
Frequently Asked Questions
What is your product's biggest advantage?
DC Brushless Motor - no maintenance throughout life, no attrition, low noise, high intelligence.
What is your flap gates opening and closing time?
≤ 0.4 seconds
What is the swing barrier gate working environment?
Suitable for both indoor and outdoor use (with shelter)
Can I customize it?
Yes, welcome. We are the manufacturer and welcome OEM partnerships.
What's your warranty?
1 year warranty period.
