SS316 Access Control Turnstile Gate Single Passage DC24V Direction Indicator
  • SS316 Access Control Turnstile Gate Single Passage DC24V Direction Indicator
  • SS316 Access Control Turnstile Gate Single Passage DC24V Direction Indicator
  • SS316 Access Control Turnstile Gate Single Passage DC24V Direction Indicator
SS316 Access Control Turnstile Gate Single Passage DC24V Direction Indicator

SS316 Access Control Turnstile Gate Single Passage DC24V Direction Indicator

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FH01
Product Details
Key Word:
Full Height Rotor Turnstile
Case Material:
SS304/SS316/mild Steel
Mode:
Semi-automatic
Package:
Plywood Box
IP Rate:
IP45
Power Supply:
AC110V/AC220V±10% 50-60Hz
Highlight:

SS316 Access Control Turnstile Gate

,

Direction Indicator Access Control Turnstile Gate

,

DC24V Pedestrian Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,00pcs per month
Product Description
SS316 Access Control Turnstile Gate Single Passage DC24V Direction Indicator
Single Passage Human Security Access Control DC 24V Full Height Turnstile Gate
Single passage square roof 90° full height rotor turnstile manufactured from premium SS304 stainless steel (other materials available). Features beautiful, generous styling with rust-proof construction, exceptional durability, and resistance to external damage.
The rectangular frame and barrier arm configuration provides orderly, civilized pedestrian access while preventing unauthorized entry.
Utilizing advanced drive control technology, this turnstile meets diverse requirements of modern building styles for intelligent access control systems. Designed for automated pedestrian access with comprehensive system integration, compatible with IC card, ID card, barcode, fingerprint, and other identification equipment for intelligent access control and management.

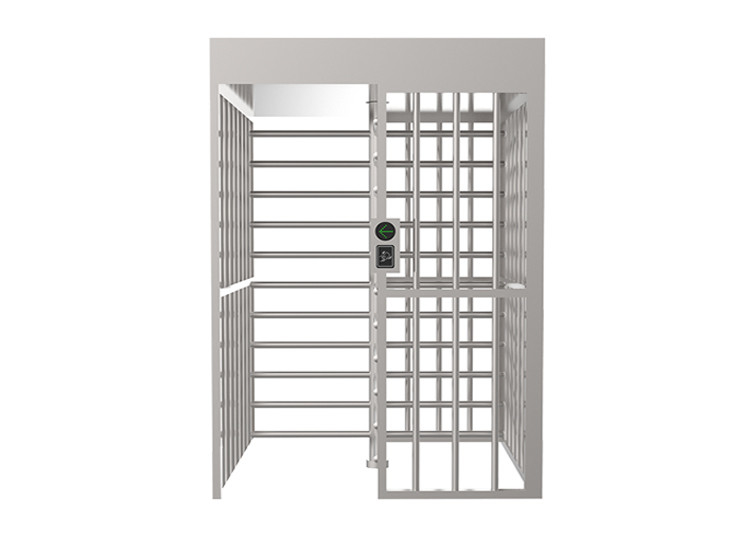

SS316 Access Control Turnstile Gate Single Passage DC24V Direction Indicator 0
Main Functions and Features
  • Mechanical construction consists of two main components: Frame and Core
  • Signal reading device installed on the frame
  • Core components include motor, main board, controller shift, fixed poles, turnstile support, turnstile mechanism, protection cover, and fencing
  • Access direction: Single or bi-directional (optional)
  • Self-resetting function cancels passage rights if card is read but not used within set time
  • Prevents opposite direction passage
  • Automatic opening/closing during power failure
  • Direction indicator shows permitted/prohibited passage
  • Control board with counting function and LED digital display (optional)
  • Memory function supports group passage
  • No time delay requirement for control signals using optical hole focus technology
Product Specifications
Case Material SS304
Barrier Arm Material SS304
Production Process CNC Laser Cutting
Overall Dimension 1450x1450x2300mm
Power Input AC100-240V, 50/60HZ
Operation Voltage DC24V, 3A, Power: 40W
Electromagnetic Duty Cycle 100%
Barrier Arm Length 550mm
Arm Max Applied Force 600mm (Customization acceptable)
Passage Direction Single/bi-directional
Operating Time 0.2S
Throughput Rate 30-35 persons/minute
MCBF 5,000,000 Cycles
Automatic Reset Function Automatically locked within set time
Operation Humidity 0~95% (No Freezing)
Operation Temperature -20℃~+60℃
Operation Environment Indoor, Outdoor (Shelter)
Protection Level IP45
Input Interface Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA
Why Choose Our Turnstile Solutions
  • Over 20 years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model inventory
  • Custom OEM/ODM orders to meet specific client requirements
  • Trial orders and sample testing available before bulk orders
  • Comprehensive online technical support
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
