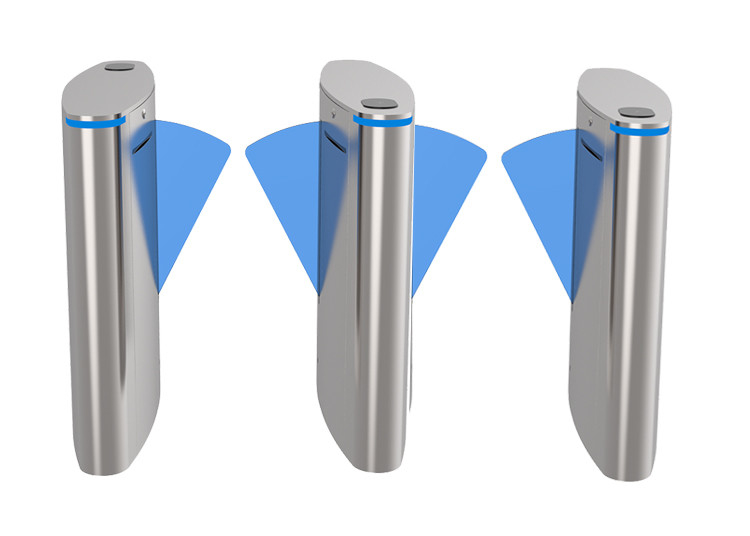

0.2 Second Flap Barrier Gate DC24V Automatic Reset Anti Clipping
  • 0.2 Second Flap Barrier Gate DC24V Automatic Reset Anti Clipping
  • 0.2 Second Flap Barrier Gate DC24V Automatic Reset Anti Clipping
  • 0.2 Second Flap Barrier Gate DC24V Automatic Reset Anti Clipping
0.2 Second Flap Barrier Gate DC24V Automatic Reset Anti Clipping

0.2 Second Flap Barrier Gate DC24V Automatic Reset Anti Clipping

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB04
Product Details
Motor:
DC Brushless Motor
Work Environment:
Outdoo(Canopy)and Indoor
Passing Direction:
Single Directional / Bi-directional
Power Input:
AC100V~240V; DC24V
Operating Time:
0.2 Second
Open Direction:
Single And Double
Highlight:

0.2 Second Flap Barrier Gate

,

Automatic Reset Flap Barrier Gate

,

Anti Clipping Flap Barrier Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description
0.2 Second Flap Barrier Gate DC24V Automatic Reset Anti Clipping
Factory Wholesale Automatic Designed Intelligent Access High Speed Flap Barrier Gate
Product Overview
Luxury intelligent flap gate compatible with IC card, ID card, barcode card, and fingerprint reading card recognition devices. Designed for staff access management, providing civilized and orderly access methods while effectively controlling personnel entry and exit. Widely applicable for stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring intelligent access management.
0.2 Second Flap Barrier Gate DC24V Automatic Reset Anti Clipping 0
Product Advantages
  • Heavy duty stainless steel Flap Barrier construction
  • LED Direction indicators at each side
  • Selectable operating modes: single direction, bi-direction, always free or always locked
  • IP55 Weatherproof Protection rating
  • Automatic reset of barrier gate after each passage
  • Adjustable time out delay
  • Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping
  • Integration support with any RFID/Biometric Reader through NO input
Technical Specifications
Product Name Flap barrier gate
Model SN-FB04
Material Stainless steel 304 (Cover: 1.5mm Cabinet: 1.2mm)
Size 1200×300×980mm
Passage width 600mm
Passage direction Unidirectional/bi-directional
Pass rate 30 persons/min
Infrared Sensor 3 pairs
Power input AC100-240V, 50/60Hz; DC24V
Working voltage 24V
Working humidity ≤95%
Working temperature -30℃ to +70℃
Working environment Indoor/outdoor
Communication interface RS232, RS485, TCP/IP
Access control system ID/IC card, fingerprint, face recognition, Barcode/QR code, phone app, ESD system, visitor system, etc.
Main Functions & Features
  • Auto reset function - system resets automatically if no passage during identified card-reading time
  • Efficient identification technology for magnetic cards, bar code cards, ID cards, and IC cards
  • Real-time trouble self-detect and alarm indication for safe operation and maintenance
  • Direction indicator guides passengers to correct entry and exit ways
  • Automatic locking prevents unauthorized passage
  • Strong system expansion capability for adding new products
  • No noise operation with extended lifespan
  • Ensures efficient, intelligent, and safe access control
  • Configurable as single-direction or bi-direction operation
  • LED direction indicator for clear guidance
  • Gate auto-opens when power off and auto-closes when power on for fire safety compliance
  • Alarm function for illegal intrusion and reverse intrusion detection
  • Optional counter function available
  • Infrared photocell support for anti-pinch and reset functionality
Product Applications
Sinomatic full automatic flap barrier gates are widely used in the following sites:
  • Banks and insurance companies
  • Governmental and institutional establishments
  • Office buildings, registered offices, and administrative sites
  • Schools, universities, and colleges
  • Sensitive sites: nuclear, pharmaceutical, computer centers
  • Airports and transportation hubs
