Tripod Turnstile Gate
>
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-TT03 |

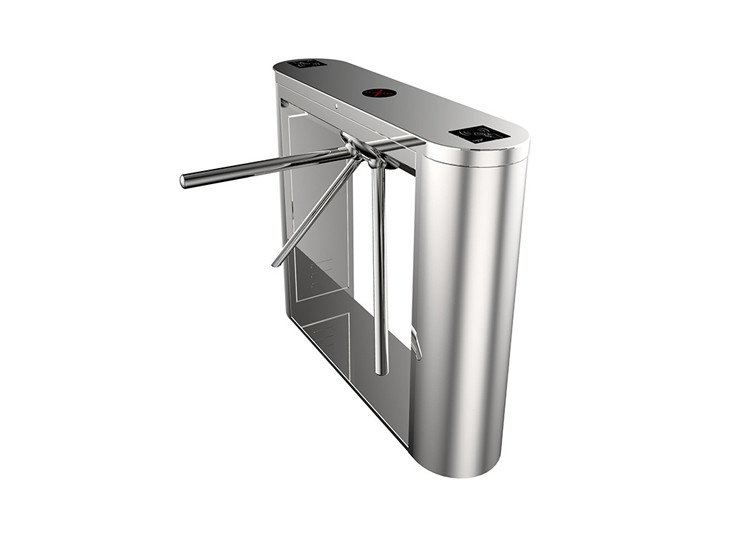

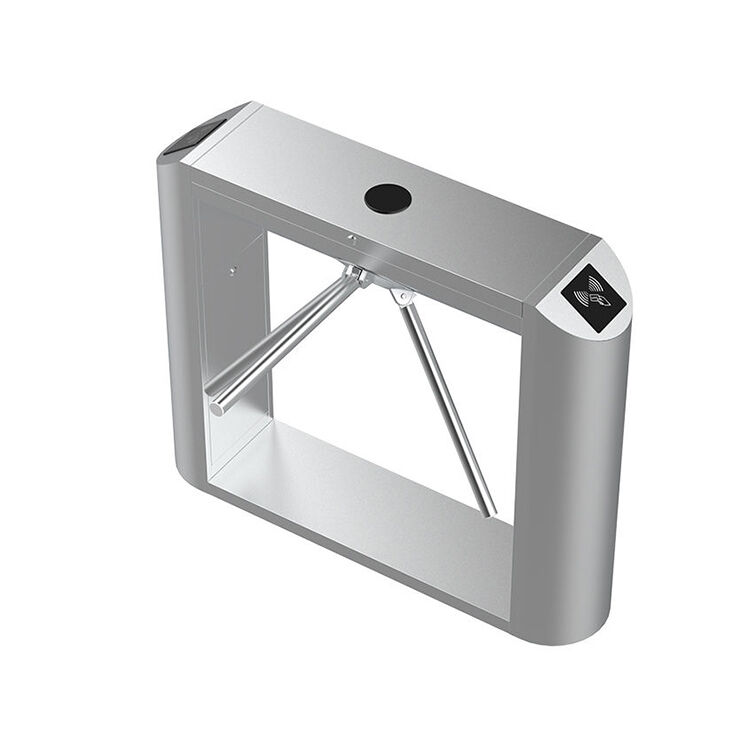

Face Recognition Card System Qr Bar-code Reader security Access Control Automatic Tripod Turnstile
Advantage:
1. Tripod turnstile gate are compact and cost-effective entrance solutions.
2. The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
3. Tripod turnstile gate is ideal for indoor and outdoor settings.
4. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and
Bio-metricdevice).
6. In case of emergency, the tripod turnstile gate will drop down when power off.
7. It is suitable for all kinds of places.
Performance and Feature:
1. Auto replacement function, re-position after person pass by.
2. Anti tail function auto-lock once turn120°
3. Arms auto drop when power off, insure unblocked when accident.
4. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work.
5. Diverse control mode optional, changeable due to varying, convenient for your manage.
6. Auto alert error function, comfort for user maintain and operate.
7. Manual button or remote control ,Bio-directional passage.
8. Open signal with memory or with out set function.
9. Red and green light to show pass or stop, leisure to exit and entrance.
TECHNICIAL SPECIFICATIONS
| ITEM | SPECIFICATIONS |
| Housing material | 304 grade stainless steel |
| Material thickness | 1.2mm at least |
|
Power voltage
|
AC220±10%,50Hz, AC110±10%,60Hz
|
|
Working environment
|
-20℃~+60℃
|
|
Humidity
|
5%~90%
|
|
Length of the bar
|
500mm
|
|
Housing Size
|
1200*280*980mm
|
|
Pass speed
|
30 Persons/min
|
|
Movement working power
|
DC24±10%
|
|
Width of passage
|
≤550mm
|
|
Open direction
|
Single and Double
|
|
Work environment
|
Outdoor and indoor
|
|
Service life
|
≥5 million
|
|
Weight
|
About 60kg
|
|
Open signal
|
Relay signal input
|
|
Card reader installation position
|
Two
|
|
Controller mounting position
|
One
|
Why choose us:
1. Our Factory has more than 20 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.
5. Online technical support makes it carefree to be our business partner.
6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.
7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
