SS304 Tripod Turnstile Gate Fingerprint Solenoid Drive 1.2mm Thickness
  • SS304 Tripod Turnstile Gate Fingerprint Solenoid Drive 1.2mm Thickness
  • SS304 Tripod Turnstile Gate Fingerprint Solenoid Drive 1.2mm Thickness
  • SS304 Tripod Turnstile Gate Fingerprint Solenoid Drive 1.2mm Thickness
SS304 Tripod Turnstile Gate Fingerprint Solenoid Drive 1.2mm Thickness

SS304 Tripod Turnstile Gate Fingerprint Solenoid Drive 1.2mm Thickness

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Frame Material:
SS304/SS316
Material Thickness:
At Least 1.2mm
Service Life:
More Than 5 Million Times
Control Voltage:
24V
IP:
IP54
Drive Mode:
Solenoid Drive
Highlight:

SS304 Tripod Turnstile Gate

,

Solenoid Drive Tripod Turnstile Gate

,

1.2mm Thickness Electronic Turnstile Gates

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,000pcs per month
Product Description

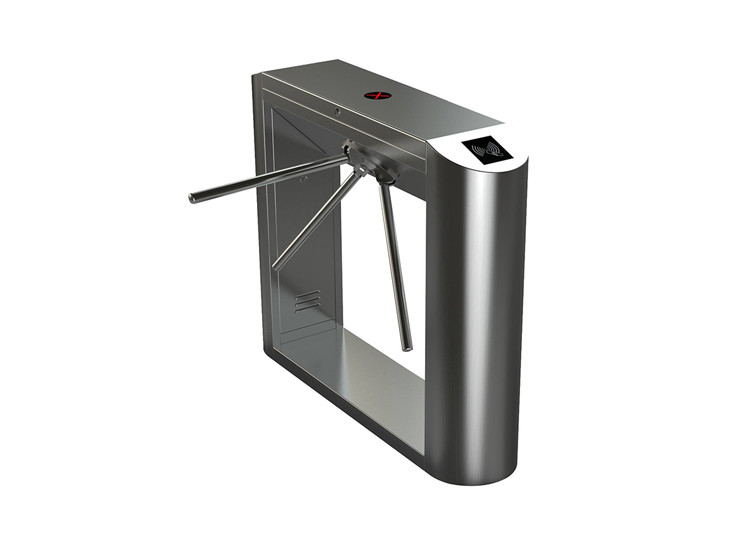

SS304 Tripod Turnstile Gate with Fingerprint Solenoid Drive
Security Access Control Fingerprint Turnstile with RS485 Communication

This advanced tripod turnstile integrates mechanical, electrical, and microcontroller technologies with multiple identification systems. Compatible with IC/ID cards, barcode scanners, fingerprint readers, and more, it provides intelligent flow control management. Constructed with durable, rust-resistant materials, it ensures orderly pedestrian passage while preventing unauthorized entry/exit. Features smooth operation with minimal noise and automatic arm release during emergencies.

Ideal for bus stations, ports, subway systems, factories, residential areas, hotels, corporate facilities, and any location requiring sophisticated access control.

SS304 Tripod Turnstile Gate Fingerprint Solenoid Drive 1.2mm Thickness 0
Functions & Features
  • Optimized movement design ensures reliable operation with minimal noise and automatic hydraulic buffering for stable performance and extended service life
  • Power-off lever function with optional remote control for barrier management and emergency handling

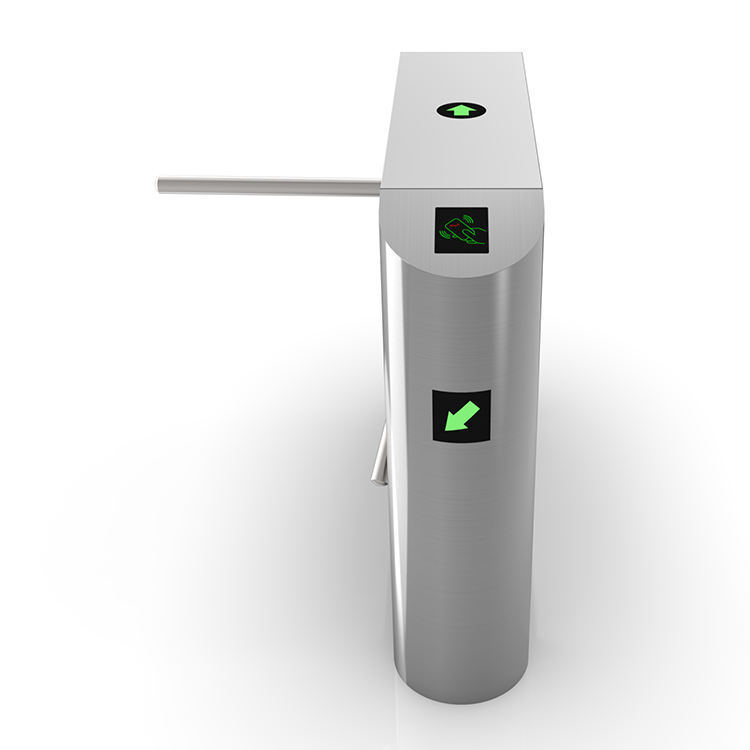

  • Integrated LED indicator lights display green arrows for authorized access and red signals for invalid credentials
  • Configurable memory settings for high-volume group ticket scenarios in tourist attractions
  • Automatic reset function cancels access permissions after set time periods if not utilized
  • Weather-resistant construction provides protection against water, sun, cold, and high temperatures
  • Standardized installation interface compatible with IC, ID cards, and various smart card systems
  • Unified external electrical interface supports integration with multiple reading devices
  • Expandable to automatic identification systems for access control, attendance tracking, and payment functions
  • Compatible with other channel control products for comprehensive security solutions
Technical Specifications
Item Specifications
Housing material 304 grade stainless steel
Material thickness 1.2mm minimum
Power voltage AC220±10%, 50Hz / AC110±10%, 60Hz
Working environment -20℃ to +60℃
Humidity 5% to 90%
Length of the bar 500mm
Housing Size 1200*280*980mm
Pass speed 30 persons per minute
Movement working power DC24±10%
Width of passage ≤550mm
Open direction Single and Double
Work environment Outdoor and indoor
Service life ≥5 million cycles
Weight Approximately 60kg
Open signal Relay signal input
Card reader installation positions Two
Controller mounting positions One
SS304 Tripod Turnstile Gate Fingerprint Solenoid Drive 1.2mm Thickness 1
Why Choose Our Turnstile Solutions
  1. Over 20 years of OEM/ODM experience in access control turnstiles and barriers
  2. Prompt delivery with standard models maintained in stock
  3. Custom OEM/ODM orders accepted to meet specific client requirements
  4. Trial orders available for product testing before bulk purchases
  5. Comprehensive online technical support for business partners
  6. Multiple transportation options including sea, air, and express shipping
  7. Factory visits welcome during working days for client inspections
