Sliding Gate Operator
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-KMP202 |

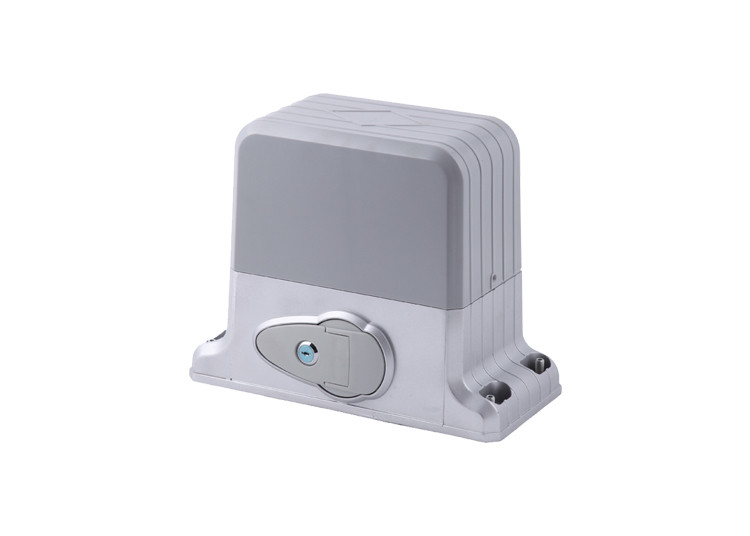

Optimal Choose1800Kg 220V/110V Heavy Duty Ac Motor Sliding Gate Operator
Overview
This is a conventional sliding gate operator,with brand-new design,brand-newclutch structure,fashionable exterior
design and brand-new control technique,making the motor more numanistic.
Furthermore.the integrated electromechanical design and the streamlinedappearancealso make our product look
more fashionable and elegant.
TECHNICIAL SPECIFICATIONS
| Product Model | Sliding Gate Opener SN-KMP202 |
| Power Supply | AC220V±10%,50Hz 110V±10%,60Hz |
| Motor speed | 1350rpm,1620rpm |
| Operating Temperature | -40°C~+55°C |
| Motor voltage | AC220V / 110V |
| Rated output power of motor | 350W |
| Remote control operating distance | Max 50m (Frequency:418MHz) |
| Remote control mode | Single button |
| Max gate weight | 1800Kg |
| Output torque | 35Nm |
| Limit switch | Spring limit switch |
| Noise | ≤58dB |
| Duty cycle | S2,15 minutes |
| Extra remote control | 20 pcs |
| Gate move speed | 11m/min,13.2m/min |
| Application | home automation |
FUNCTIONS AND FEATURES
1) Integrated mechanical and eletrical,all functions on one controller
2) Radio controller or linesto control open,close and stop functions
3) Magenetic limit switch,the door stops when it moves to the limit
4) Accurate limit braking
5) Electronic soft-start
6) Dialing switches to adjust the motor rotation in both directions
7) Open and close limits have a self-locking function
8) Intelligent operation-if an obstacle is detected when the door is closing,it will reverse to open,then after 10 seconds
it attempts to close automatically unless you press the stop key-stroke.
9) Movement indication-the indicator lights up when the door is moving.
10) Optional line control or remote control
PACKING LIST
| MOQ | 1 set |
| Port | Shenzhen, Guangzhou and others |
| Payment terms | T/T ; MoneyGram; Western union; Ali pay etc |
| Producing capacity | 3000 Sets/Month |
| Leading time | 5 days |
| Package | Carton |
1. How many sliding gate models do you have ?
-------- We have 300KG, 500KG,700KG, 800KG, 1000KG,1400KG, 1800KG, 2000KG sliding gate motors for
you choice.
2. Which accessories do you supply for the Sliding gate opener ?
-------- Gear rack (Steel and Nylon), Push button, Photocells sensor ,Alarm light ,
GSM Gate Opener, Loop detector, Extra remote controller, Keypad and Solar panel and so on.
3. What is the frequncy of your remote control ?
-------- 418Hz and 433Hz .
4. What is your products waterproofing grade ?
-------- Yes, it is IP54 .
5. What's you warranty?
-------- 1 year time warranty.
