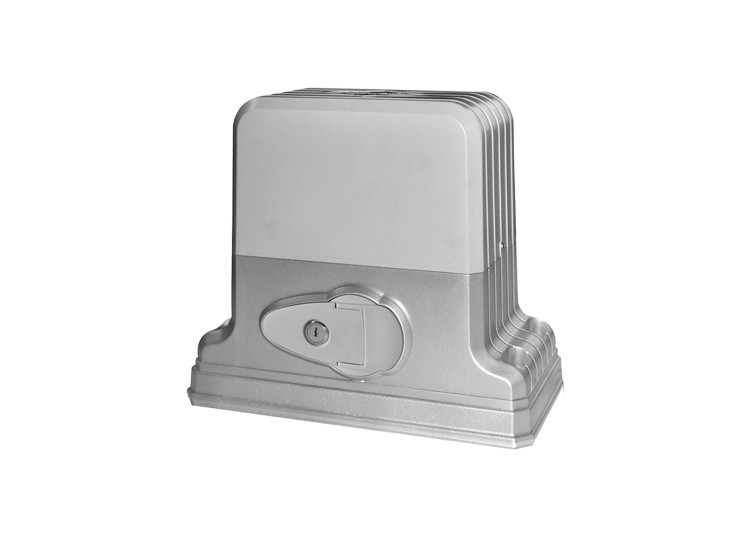

Aluminum Alloy Electric Gate Operators Manual Release Remote Control 418Hz
  • Aluminum Alloy Electric Gate Operators Manual Release Remote Control 418Hz
  • Aluminum Alloy Electric Gate Operators Manual Release Remote Control 418Hz
  • Aluminum Alloy Electric Gate Operators Manual Release Remote Control 418Hz

Aluminum Alloy Electric Gate Operators Manual Release Remote Control 418Hz

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-KMP202
Product Details
Manual Release:
Yes
Remote Control:
418Hz
Material:
Die Casting Aluminum Alloy
Shell:
Waterproof
Wire Control:
Available
Application:
Indoor/outdoor
High Light:

Aluminum Alloy Electric Gate Operators

,

Remote Control Electric Gate Operators

,

418Hz Heavy Duty Gate Opener

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
2,000 pcs per month
Product Description

Nice Outlook Safety Manual Release Key Optional Remote Control Sliding Gate Operator



Overview

This is a conventional sliding gate operator,with brand-new design,brand-newclutch structure,fashionable exterior

design and brand-new control technique,making the motor more numanistic.


Furthermore.the integrated electromechanicaldesign and the streamlinedappearancealso make our product look

more fashionable and elegant.







FUNCTIONS AND FEATURES


1) Integrated mechanical and eletrical,all functions on one controller


2) Radio controller or linesto control open,close and stop functions


3) Magenetic limit switch,the door stops when it moves to the limit


4) Accurate limit braking


5) Electronic soft-start


6) Dialing switches to adjust the motor rotation in both directions


7) Open and close limits have a self-locking function


8) Intelligent operation-if an obstacle is detected when the door is closing,it will reverse to open,then after 10 seconds

it attempts to close automatically unless you press the stop key-stroke.


9) Movement indication-the indicator lights up when the door is moving.


10) Optional line control or remote control



TECHNICIAL SPECIFICATIONS



Model KMP202
Voltage 220V±10% 110V±10%
Frequency 50HZ 60HZ
Current 2.7A 5.8A
Motor voltage AC220V / 110V
Capacitor 20μf 60μf+14μf
Output Power 350W
Absorbed power 594W 638W
Torque 35nm
Mode number M=4
Motor speed 1350rpm 1620rpm
Reduction ratio 23:1
Gear speed 58.5rpm 70.2rpm
Travel speed 11m/min 13.2m/min
Working temperature -40°C∼+55°C
Overload protection temperature 130°C
Motor making technique Die casting aluminum alloy
Manual Release Yes
Product weight(approx) 10.19kg 10.25kg
Max.weight of gate 1800kg





ELECTRONIC DATA



Model KMP202
Soft start YES

Stop on obstacle

(sensitivity adjustable)

YES

Auto warming-up

(at freezing temperature)

YES
Remote control 418MHZ(50m,approx)
Wire control Available
Auto closing YES
Vehicle loop detector socket YES
Photocell socket YES
Alarm light socket YES
