AC Automatic Sliding Gate Motor 1800kg Die Casting Aluminum Waterproof

Place of Origin	Shenzhen, China.
Brand Name	SINOMATIC
Certification	CE/ ISO
Model Number	SN-KMP202

Product Details

Driven Mode:

Gear

Max.gate Weight:

1800 KG

Power Supply:

AC110V/220V ±10%

Material:

Die Casting Aluminum Alloy

Shell:

Waterproof

Manual Release:

Yes

Highlight:

AC Automatic Sliding Gate Motor

Waterproof Sliding Gate Motor

1800kg Remote Control Gate Operator

Payment & Shipping Terms

Minimum Order Quantity

Sample order accepted

Price

negotiable

Packaging Details

Carton/Plywood box/Pallet

Delivery Time

5-10 working days after payment received

Payment Terms

T/T, Western Union,

Supply Ability

2,000 pcs per month

Product Description

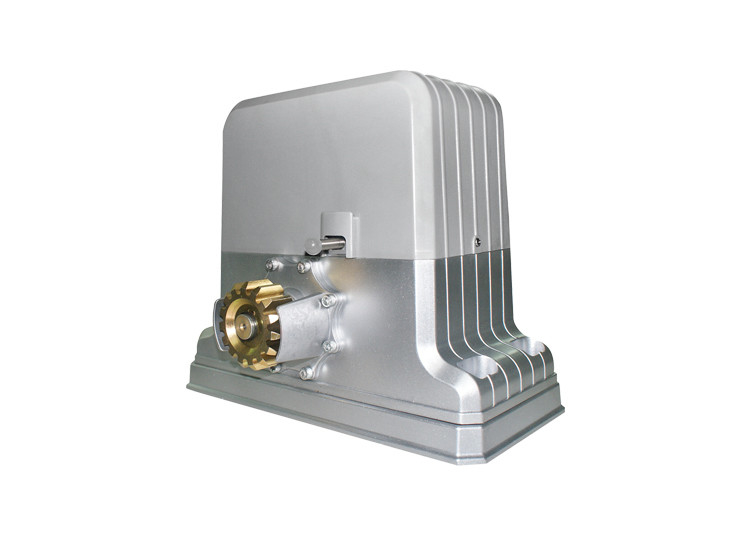

AC 1800kg Die Casting Aluminum Alloy Duty Remote Control Automatic Sliding Gate Motor

Heavy-duty automatic sliding gate motor designed for industrial and commercial applications with robust die-cast aluminum construction and advanced safety features.

Functions and Features

Integrated mechanical and electrical systems with all functions on one controller
Radio controller or wired control for open, close, and stop functions
Magnetic limit switch for precise door positioning
Accurate limit braking system
Electronic soft-start for smooth operation
Dialing switches to adjust motor rotation in both directions
Open and close limits with self-locking function
Intelligent obstacle detection - reverses to open when obstruction detected during closing
Movement indicator light activates during door operation
Optional line control or remote control configurations

Technical Specifications

Model	KMP202
Voltage	220V±10% \| 110V±10%
Frequency	50HZ \| 60HZ
Current	2.7A \| 5.8A
Motor Voltage	AC220V / 110V
Capacitor	20μf \| 60μf+14μf
Output Power	350W
Absorbed Power	594W \| 638W
Torque	35nm
Mode Number	M=4
Motor Speed	1350rpm \| 1620rpm
Reduction Ratio	23:1
Gear Speed	58.5rpm \| 70.2rpm
Travel Speed	11m/min \| 13.2m/min
Working Temperature	-40°C∼+55°C
Overload Protection Temperature	130°C
Motor Construction	Die casting aluminum alloy
Manual Release	Yes
Product Weight (approx)	10.19kg \| 10.25kg
Maximum Gate Weight	1800kg

Electronic Data

Model	KMP202
Soft Start	YES
Stop on Obstacle (sensitivity adjustable)	YES
Auto Warming-up (at freezing temperature)	YES
Remote Control	418MHZ (50m, approx)
Wire Control	Available
Auto Closing	YES
Vehicle Loop Detector Socket	YES
Photocell Socket	YES
Alarm Light Socket	YES
