Car Parking Lock
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-PL-01 |

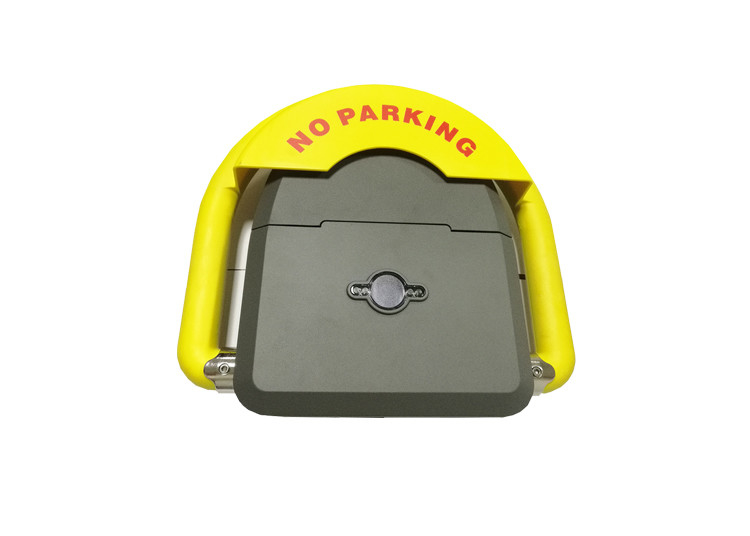

Factory Price IP68 Waterproof Highest Level Ingress Protection Automatic Parking Barrier
| Model NO. | SN-PL01 |
| Overall Dimension | 357*370*82.5mm |
| Working Temperature | -30°C~60°C |
| Working Voltage | DC12V |
| Battery Voltage | DC12V, 7Ah |
| Operational Current | 0.4A |
| Running Time | 4-6s |
| Remote Control Distance | ≤15m |
| Vertical Position Height | 340mm |
| Horizontal Position Height | 82.5mm |
| Maximum Bearing Weight | 5 tons |
| Protection Grade | IP68 (the highest level in Ingress Protection) |
Product Introduction
Parking lock is the newly-developed product by our company. The cabinet of the parking lock is coated with high-class
varnish with features of glossiness and fast color. The product has attributes like beautiful and novel structure designing,
user-friendly, diversified functions, safe and durable operation. It is well applied for car parking management in areas like
high-end residences, shopping malls, hotels, airports and other commercial places.
Product Application
1, when there is no car in the parking stall, the parking lock will rise up to its highest position
2, when there is a car in the parking stall, the parking lock will fall down to its lowest position
3, if remote controller is needed, firstly you need to cut off the power and wait for three seconds; secondly you should
plug in power again, when the red light is on, press two buttons of controller at the same time. At this moment, both
red light and green light will be on, after the red is off, you can the remote controller
4, if you want to control the parking lock in the car, you need to put it in the front of the windscreen, and press the button
for 1 or 2 seconds.
FUNCTIONS AND FEATURES
---- Energy-saving: the battery is a best product in China and the power in it will last for half a year.
---- Hermetic: the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.
---- Auto-repositioning: the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.
---- Noise-free: bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity and lesser friction.
---- Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.
---- Safe: the power connection is anti-disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy.
---- Durable: the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.
---- Emergency manual: Manual operation is available when the lock happens to fail or have no electricity.
---- Dark indicator: In dark both ends of the berth shine red to remind the passersby to avoid, thus preventing accidents.
---- Charge reminder: When the accumulator discharges to some extent, the internal reminder warns the subscriber to recharge the battery cell.
---- Burglarproof: the mounting bolts are placed inside of the cabinet. No one can open it without key.
---- Waterproof: The control system and external connection are sealing waterproof.
TECHNICIAL SPECIFICATIONS
| 1 | Voltage | DC12V |
| 2 | Battery | DC12, 7Ah |
| 3 | Dimension | 357×370×82.5mm |
| 4 | Extended Height | 340mm |
| 5 | Remote Distance | ≤30M |
| 6 | Working Temperature | -35℃~+55℃ |
| 7 | Current | 0.4A |
| 8 | Weight Born | 5t |
| 9 | IP Class | IP68 |
| 10 | Running Time | 4~6s |
| 11 | Protect level | IP68 |
| 12 | parking guard battery life | 4 to 6 months |
| 13 | parking guard battery | rechargeable |
| 14 | Packing size | 550*120*100 mm |
| 15 | Weight | 8.5kg |
| 16 | thickness | 3.5MM |
PRODUCT INSTALLATION
A. Installation Spot: It is suggested to install the parking lock at the very center of parking seat.
B. Installation Ground: To install the parking lock in a dry and smooth concrete ground, and no radio signal interference
around.
C. Installation Steps: Drill four corresponding holes 10*5 mm in the ground and use four expansion bolts prepared in the
package to fasten it. (as the following drawings show)
| MOQ | 1 set |
| Port | Shenzhen, Guangzhou and others |
| Payment terms | T/T ; MoneyGram; Western union; Credit card; Ali pay etc. |
| Producing capacity | 3000 Sets/Month |
| Leading time | 5 days |
| Package | Carton box |
FAQ
1.How many models parking lock do you have?
-------- New Zine-alloy Parking Lock model, Solar Parking Lock model, Common parking lock.
2.How many remote controls are in each parking lock?
-------- 2 pcs.
3. What is the waterproof grade?
-------- IP68.
4. Can express delivery the parking lock?
-------- Yes, the express could deliver the parking lock , but we need to take out the parking lock battery. As you know, the express shipping company is strict to send the battery.
5. What's you warranty?
-------- 1 year time warranty.
