Energy Saving Car Parking Lock 0.4A Rechargeable Die Casting 7Ah

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-PL-01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 3-5 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, , L/C, D/A, D/P
Supply Ability 3,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard Voltage DC12V Battery Voltage DC12V, 7Ah
Dimension 357*370*340 MM Battery Type Rechargeable
Operational Current 0.4A Application Indoor/outdoor
High Light

Energy Saving Car Parking Lock

,

0.4A Rechargeable Car Parking Lock

,

Parking Space Lock 7Ah

Leave a Message
Product Description

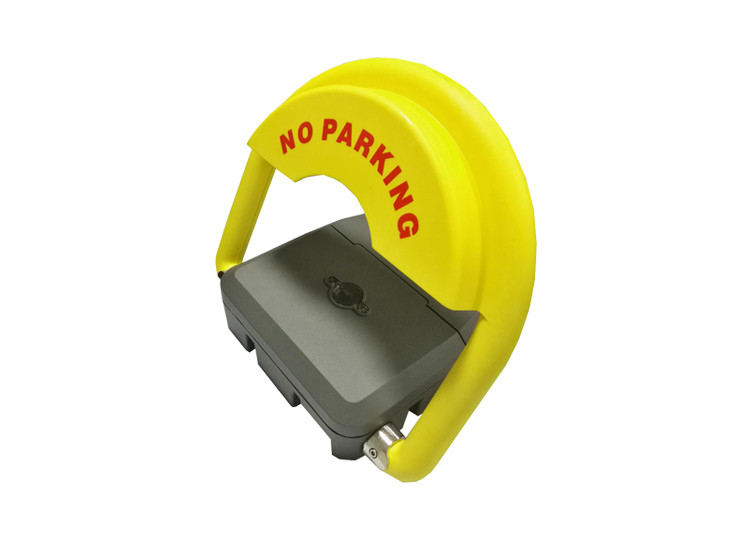

Die-Casting Zinc Alloy Cabinet Material Energy-Saving 340 MM Vertical Position Height Parking Lock





Product Introduction



Parking lock is the newly-developed product by our company. The cabinet of the parking lock is coated with high-class

varnish with features of glossiness and fast color. The product has attributes like beautiful and novel structure designing,

user-friendly, diversified functions, safe and durable operation. It is well applied for car parking management in areas like

high-end residences, shopping malls, hotels, airports and other commercial places.



Technical Specification



Model: SN-PL01

Standard Voltage: DC12V

Battery Voltage: DC12V, 7Ah

Dimension: 357*370*340MM

Operational Current: 0.4A

Up to Down Time: 4~6 Seconds

Vertical Position Height: 340MM

Horizontal Position Height: 82.5MM

Remote Control Distance: 15M

Working Temperature: -35~+55 degree centigrade

Maximum Bearing Weight: 5 tons

Protection Grade: IP68



Energy Saving Car Parking Lock 0.4A Rechargeable Die Casting 7Ah 0







1 Voltage DC12V
2 Battery DC12, 7Ah
3 Dimension 357×370×82.5mm
4 Extended Height 340mm
5 Remote Distance 30M
6 Working Temperature -35℃~+55℃
7 Current 0.4A
8 Weight Born 5t
9 IP Class IP68
10 Running Time 4~6s
11 Protect level IP68
12 parking guard battery life 4 to 6 months
13 parking guard battery rechargeable
14 Packing size 550*120*100 mm
15 Weight 8.5kg
16 thickness 3.5MM



Product Application

1, when there is no car in the parking stall, the parking lock will rise up to its highest position



2, when there is a car in the parking stall, the parking lock will fall down to its lowest position



3, if remote controller is needed, firstly you need to cut off the power and wait for three seconds; secondly you should

plug in power again, when the red light is on, press two buttons of controller at the same time. At this moment, both

red light and green light will be on, after the red is off, you can the remote controller



4, if you want to control the parking lock in the car, you need to put it in the front of the windscreen, and press the button

for 1 or 2 seconds.



FUNCTIONS AND FEATURES



1. Energy-saving; the battery is a best product in China and the power in it will last for half a year.



2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the battery causing

short circuit; battery installation is easy.



3. Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons;

the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced

nylon, and it will not deform even after car crushing.



4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.



5. Auto-repositioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced

to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.



6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity

and lesser friction.



7. Burglarproof; the mounting bolts are placed inside of the cabinet. No one can open it without key.



8. Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.





PRODUCT INSTALLATION



A. Installation Spot: It is suggested to install the parking lock at the very center of parking seat.



B. Installation Ground: To install the parking lock in a dry and smooth concrete ground, and no radio signal interference

around.



C. Installation Steps: Drill four corresponding holes 10*5 mm in the ground and use four expansion bolts prepared in the

package to fasten it. (as the following drawings show)



  • Locking and unlocking
  • The way to put in and out the battery
  • Drilling 3*∅10 deep 50mm
  • Put the nuts
  • Positioning the parking lock
  • Fastening the nuts
  • Cover installing

Ce Certificate Ip 67 Waterproof Wireless Remote Control Private Automatic Solar Parking Lock

MOQ 1 set
Port Shenzhen, Guangzhou and others
Payment terms T/T ; MoneyGram; Western union; Credit card; Ali pay etc.
Producing capacity 3000 Sets/Month
Leading time 5 days
Package Carton box



FAQ



1.How many models parking lock do you have?
-------- New Zine-alloy Parking Lock model, Solar Parking Lock model, Common parking lock.
2.How many remote controls are in each parking lock?
-------- 2 pcs.
3.What is the waterproof grade?
-------- PI68.
4. Can express delivery the parking lock?
--------Yes, the express could deliver the parking lock , but we need to take out the parking lock battery. As you know, the express shipping company is strict to send the battery.
5.What's you warranty?
-------- 1 year time warranty.
