180 Degree Solar Parking Lock DC12V IP68 Waterproof Wireless
  • 180 Degree Solar Parking Lock DC12V IP68 Waterproof Wireless
  • 180 Degree Solar Parking Lock DC12V IP68 Waterproof Wireless
  • 180 Degree Solar Parking Lock DC12V IP68 Waterproof Wireless
  • 180 Degree Solar Parking Lock DC12V IP68 Waterproof Wireless

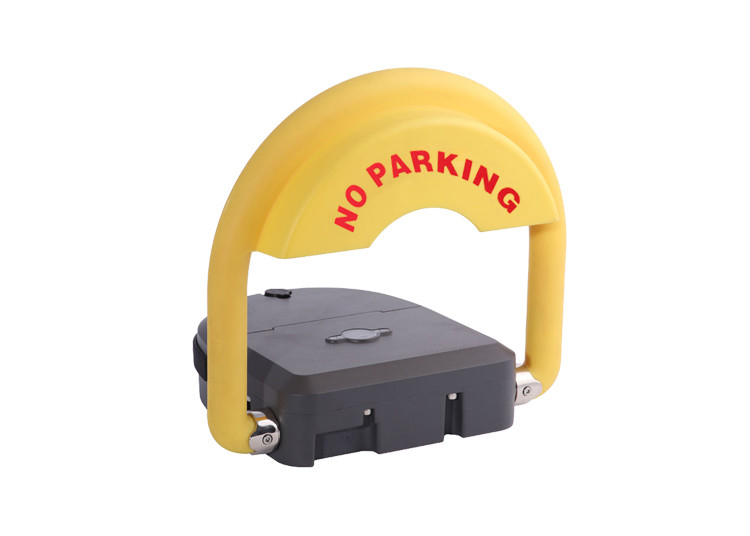

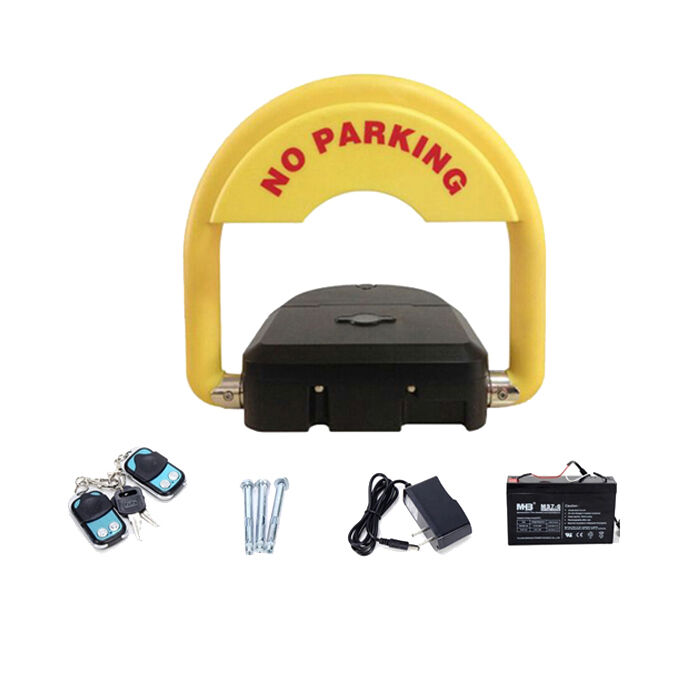

180 Degree Solar Parking Lock DC12V IP68 Waterproof Wireless

180 Degree Solar Parking Lock DC12V IP68 Waterproof Wireless

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-PL-01
Product Details
Battery Life:
6 Month One Charge
Charge Power:
220V±10%, 110V±10%, 50/60HZ
Remote Distance:
≤30m
Battery Type:
Rechargeable
Width:
370mm
Application:
Indoor/outdoor
Highlight:

180 Degree Solar Parking Lock

,

DC12V Solar Parking Lock

,

Waterproof Wireless Parking Reservation Lock

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-5 working days after payment received
Payment Terms
T/T,Western Union,,,L/C,D/A,D/P
Supply Ability
3,000 pcs per month
Product Description
180 Degree Solar Parking Lock DC12V IP68 Waterproof Wireless
CE Certificate IP68 Waterproof Wireless 180 Degree Intelligent Automatic Solar Parking Lock
Technical Specifications
1VoltageDC12V
2BatteryDC12, 7Ah
3Dimension357*370*82.5mm
4Extended Height340mm
5Remote Distance≤30M
6Working Temperature-35℃~+55℃
7Current0.4A
8Weight Born5t
9IP ClassIP68
10Running Time4~6s
11Protect levelIP68
12Parking guard battery life4 to 6 months
13Parking guard batteryRechargeable
14Packing size550*120*100 mm
15Weight8.5kg
16Thickness3.5MM
180 Degree Solar Parking Lock DC12V IP68 Waterproof Wireless 0
Functions and Features
  1. Energy-saving: Features high-quality Chinese battery with power lasting up to six months
  2. Safe: Anti-disconnecting power connection design prevents battery misplacement and short circuits; easy battery installation
  3. Durable: Cabinet constructed from die-cast zinc alloy with 5-ton load capacity; varnish coating provides waterproof and anti-rust protection. Swing arm made of fiber-reinforced nylon that resists deformation even under vehicle pressure
  4. Hermetic: Tightly sealed cabinet with IP68 protection grade ensures complete waterproof and dustproof performance for broad applications
  5. Auto-repositioning: Swing arm maintains vertical position against external force; automatically returns to vertical when forced horizontally unless remote control sets it horizontal
  6. Noise-free: Bearing transmission motor design operates with minimal noise, extending battery and motor life while reducing friction
  7. Burglarproof: Mounting bolts located inside cabinet, accessible only with key
  8. Easy Installation: Four pre-drilled holes at cabinet bottom facilitate straightforward mounting
Product Installation
Installation Requirements
Installation Spot: Recommended to install at the center of the parking space
Installation Ground: Install on dry, smooth concrete ground with no radio signal interference
Installation Steps
Drill four corresponding holes 10*5 mm in the ground and use four expansion bolts from the package to fasten securely (as shown in diagrams below)
180 Degree Solar Parking Lock DC12V IP68 Waterproof Wireless 1
  • Locking and unlocking operations
  • Battery insertion and removal procedures
180 Degree Solar Parking Lock DC12V IP68 Waterproof Wireless 2
  • Drill 3*∅10 holes, 50mm deep
  • Insert the nuts
  • Position the parking lock
  • Fasten the nuts securely
  • Install the cover
180 Degree Solar Parking Lock DC12V IP68 Waterproof Wireless 3
Ordering Information
MOQ1 set
PortShenzhen, Guangzhou and others
Payment termsT/T; Western Union; Credit card; Ali pay etc.
Producing capacity3000 Sets/Month
Leading time5 days
PackageCarton box
Frequently Asked Questions
How many models of parking lock do you have?
New Zinc-alloy Parking Lock model, Solar Parking Lock model, Common parking lock
How many remote controls are in each parking lock?
2 pieces
What is the waterproof grade?
IP68
Can express delivery ship the parking lock?
Yes, express services can deliver the parking lock, but we must remove the battery due to shipping company restrictions on battery transport
What is your warranty?
1 year warranty
