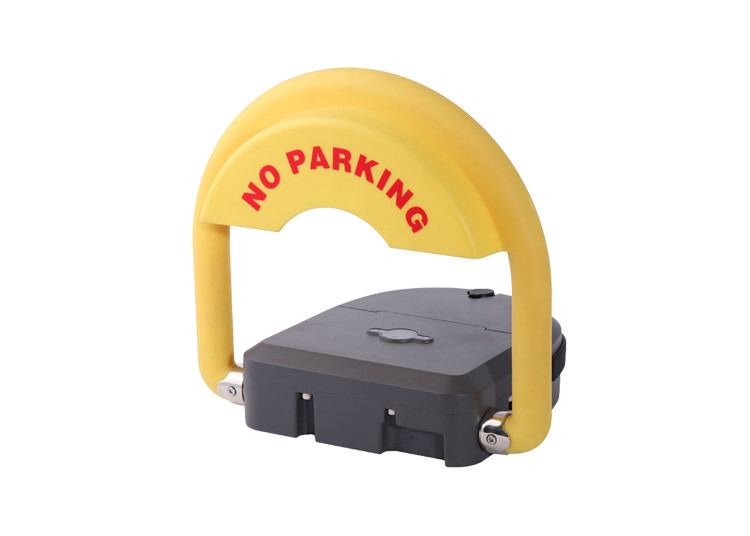

DC12V Battery Parking Space Lock 6s Running IP68 Burglarproof Remote
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-PL-01 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 3-5 working days after payment received |
| Payment Terms | T/T, Western Union, MoneyGram, , L/C, D/A, D/P |
| Supply Ability | 3,000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Loading Capacity | 5 Tons | Running Time | 4s To 6s |
|---|---|---|---|
| Remote Distance | ≤50m | Rising Height | 340mm |
| Width | 370mm | Material | Aluminum, Nylon |
| High Light | DC12V Battery Parking Space Lock,6s Running Parking Space Lock,Burglarproof Remote Control Parking Lock |
||
Product Description
DC12V Battery Voltage 4s To 6s Running Time IP 68 Water-Proof Remote Packing Space Lock
SPECIFICATIONS
| Voltage | DC12V | Battery | DC12, 7Ah |
| Dimension | 357×370×82.5mm | Current | 0.4A |
| Running Time | 4~6s | Extended Height | 340mm |
| Remote Distance | ≤15M | Working Temperature | -35℃~+55℃ |
| Weight Born | 5t | IP Class | IP68 |
DIMENSION
FUNCTIONS AND FEATURES
1. Energy-saving; the battery is a best product in China and the power in it will last for half a year.
2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the battery causing
short circuit; battery installation is easy.
3. Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons;
the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced
nylon, and it will not deform even after car crushing.
4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.
5. Auto-repositioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced
to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.
6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity
and lesser friction.
7. Burglarproof; the mounting bolts are placed inside of the cabinet. No one can open it without key.
8. Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.
PRODUCT INSTALLATION
A. Installation Spot: It is suggested to install the parking lock at the very center of parking seat.
B. Installation Ground: To install the parking lock in a dry and smooth concrete ground, and no radio signal interference
around.
C. Installation Steps: Drill four corresponding holes 10*5 mm in the ground and use four expansion bolts prepared in the
package to fasten it. (as the following drawings show)
