Wire Drawing Waist Height Turnstile SUS304 Retractable COVID QR Code

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month
Product Details
Housing Material SUS304/316 Surface Treatment Wire Drawing
Motor Voltage DC 24V Working Temperature -20°C~60°C
Passing Direction Single Directional / Bi-directional Power Input AC100V~240V; DC24V
High Light

Wire Drawing Waist Height Turnstile

,

Retractable Waist Height Turnstile

,

SUS304 Retractable Flap Barrier Turnstile

Leave a Message
Product Description

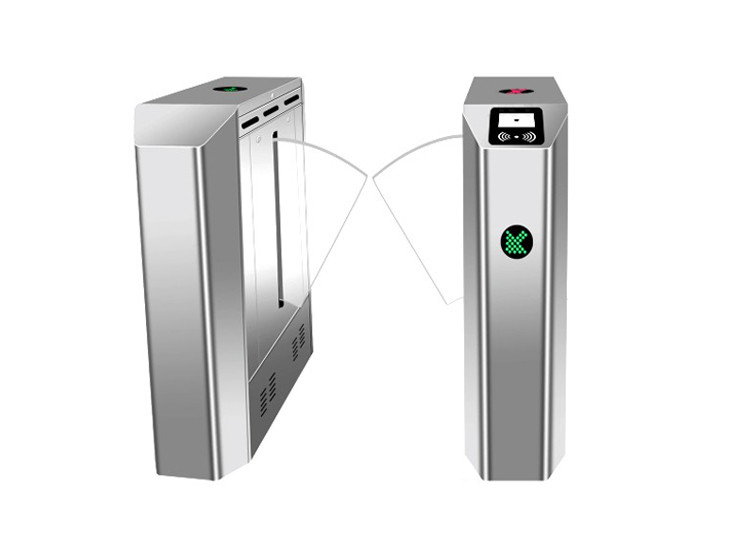

COVID Certificate QR Code Pass Waist Height SUS 304 Retractable Flap Barrier Turnstile



PRODUCT DESCRIPTION



A flap barrier turnstile is used when both heightened security and electronic optical turnstile access control are desired.

These turnstiles provide a barrier to entry with a very pleasing and inviting appearance. A flap barrier turnstile is often

used in office buildings and reception areas, lobbies, modern subway and transit stations, and other high-end building

entrances.







Access control integration



Can be integrated with all kinds of access control systems. Anti-punch, the barrier will not close if it detects people

inside the passageway. Anti-tailgating, it allows only one person to pass for an authorized card presented.



Wire Drawing Waist Height Turnstile SUS304 Retractable COVID QR Code 0



TECHNICIAL SPECIFICATIONS



Name
Automatic flap barrier gate
Type
Retractable flap
Brand
SINOMATIC/OEM
Housing Material
SUS 304 Stainless Steel
Function
Pedestrian Access control
Flap Material
10 mm thickness Acrylic
Dimension
1200*300*1000mm
Net Weight
60kg/pcs
Passage Width
600mm (One passage)
Passing Direction
Single directional / Bi-directional
MCBF
5 million
Cabinet Thickness
1.2-1.5mm
Power input
AC100V~240V; DC24V
Pass speed
30-35 p/m
Driving voltage
DC24V
Driving mode
Brushless motor
Communication interface
Dry Contact





MAIN FUNCTION AND FEATURES



1. Fault detection and alarm functions, easy to use and maintenance.



2. The running status can be programmed and controlled with the built-in keyboard on the main board.



3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop

working automatically within the prescribed time and reset again after the default delay (till fully reset).



4. Anti-breakthrough function. The gate is locked automatically until opening signal received.



5. Synchronization functions (for dual gate equipment).



6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.



7. Gate can be set as normally open or normally closed.



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).



9. Direction can be set as single-direction or bi-direction.



10. LED direction indicator.



11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.



13. Counter function (optional).



14. Support infrared photocell for anti-pinch and reset function.



Application



Sinomatic full automatic flap barrier gate are widely used in the following sites:

  • Banks, insurance companies
  • Governmental and institutional establishments
  • Office buildings, registered offices, administrative sites...
  • Schools, universities and colleges
  • Sensitive sites : military, nuclear, pharmaceutical, computer centers...
  • Airports
