Tripod Turnstile Gate
>
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-TT02 |

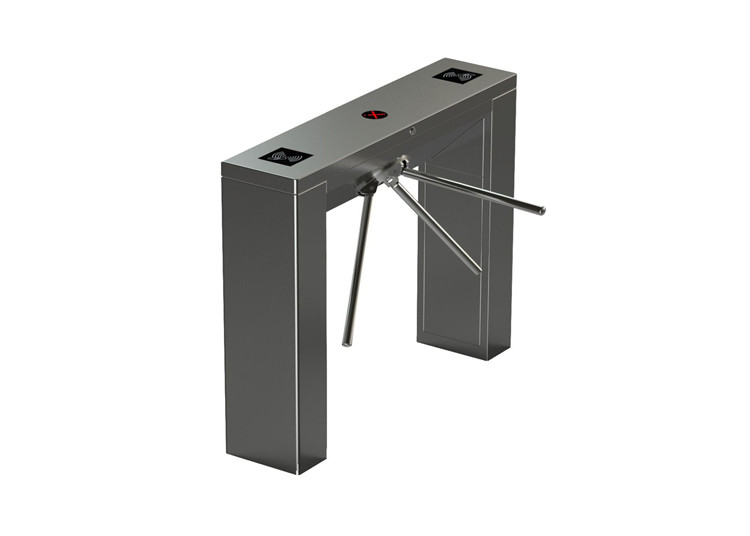

Finger Print Time Attendance And Face Recognition Tripod Turnstile Intelligent Gate
Tripod Turnstiles offer a reliable and efficient method to ensure only authorized users are allowed access to each
area of a building. The Sinomatic SN-TT serials drop arm turnstile is an attractive tripod turnstile that is easily capable
of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up
while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.
The outline of the product is formed after bending the stainless steel plate. The shape is featured as pleasing appearance,
good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into
the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly
and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a
special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down
rod control may be realized in emergency for diverting passengers.
MAIN FUNCTIONS AND FEATURES
1. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and
reduce maintenance cost.
2. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will
auto-rotate back to the current idle position.
3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed
lightly to rotate therefore even elderly or children are able to use the turnstile.
4.Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid
tampering.
5. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
6. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc.
(Access controller needed)
7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),
the system will cancel the authority of the current user automatically.
8. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact
when running.
9. Auto-reposition function: After card read, passengers don't pass within regulated time period, turnstile will be
locked automatically
10. When power off, arm will be dropped automatically
MORE SPECIFICATIONS
| PRODUCT INFORMATION | |
| Model | SN-TT02 |
| Brand | SINOMATIC |
| Size/Stick length | 1200*280*980(mm)/free of case 510(mm) |
| Arm length | 500mm(norm) |
| Material | SUS304 thickness(1.2mm) |
| Input Voltage | 110V/220V ±10% |
| Driving motor | 24V |
| Failure-free operation | 5 million/time |
| Weight | 50kg |
| Traffic speed | 30 persons/min |
| Flap Opening/Closing Time | 0.2s |
| Channel width | ≤600mm |
| Operating temperature | -30℃—+70℃ |
| Communication interface | Dry contact |
| Working environment | indoor and outdoor |
